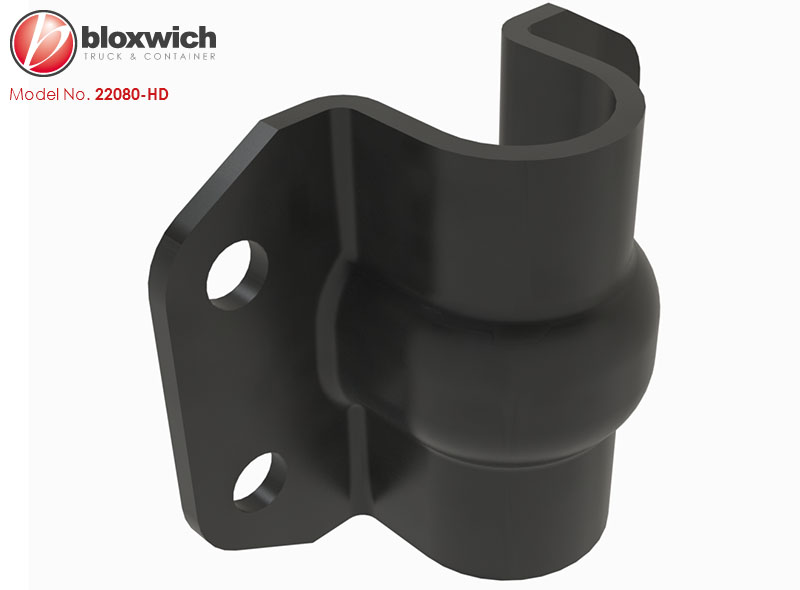

22080-HD Bearing Bracket (Outer Large) for B2000 Door Gear

Bloxwich Standard Pat Design: Bearing Bracket (Outer Large) for B2000 Door Gear

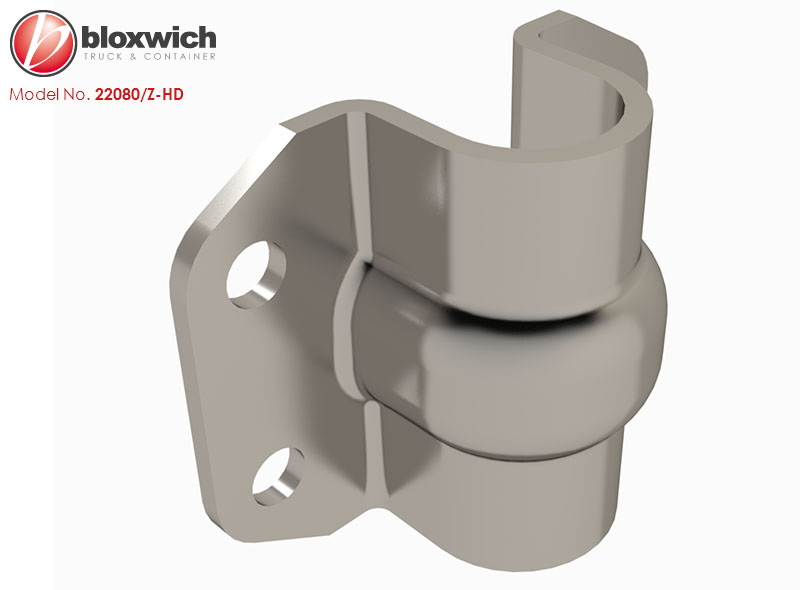

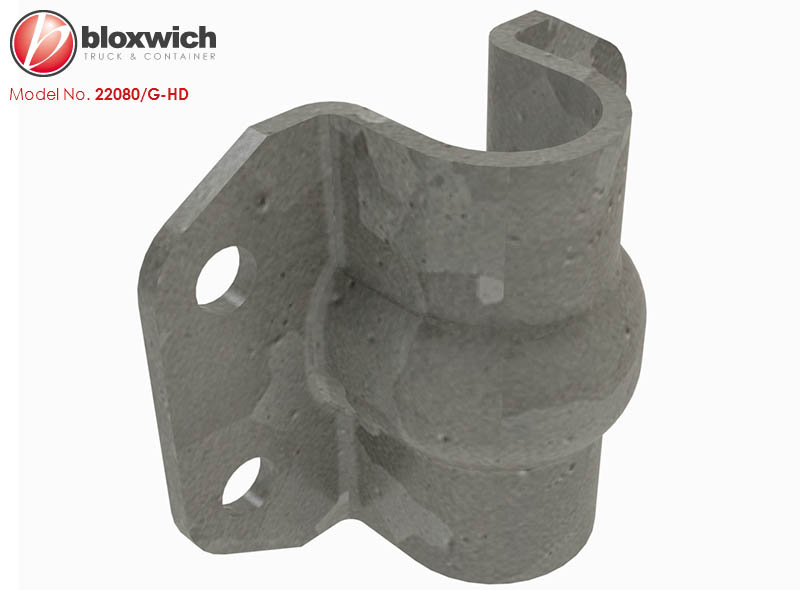

Supplied: Self colour, zinc plated or galvanised

Use With B2000 series door gear

Weight:306 g  Commodity Code 830249  GTIN 5060345311587

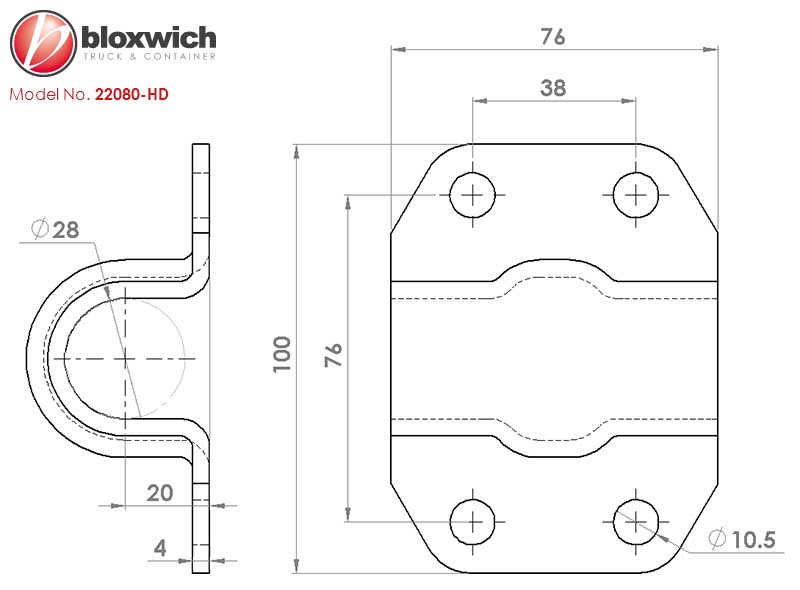

Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
