Bloxwich Standard Patent Design Mild Steel Door Gear: B1000M, Ø22mm Door Locking Gear, Bushed, Bolt on Brackets, Weld on Keepers with Small Forged Handle

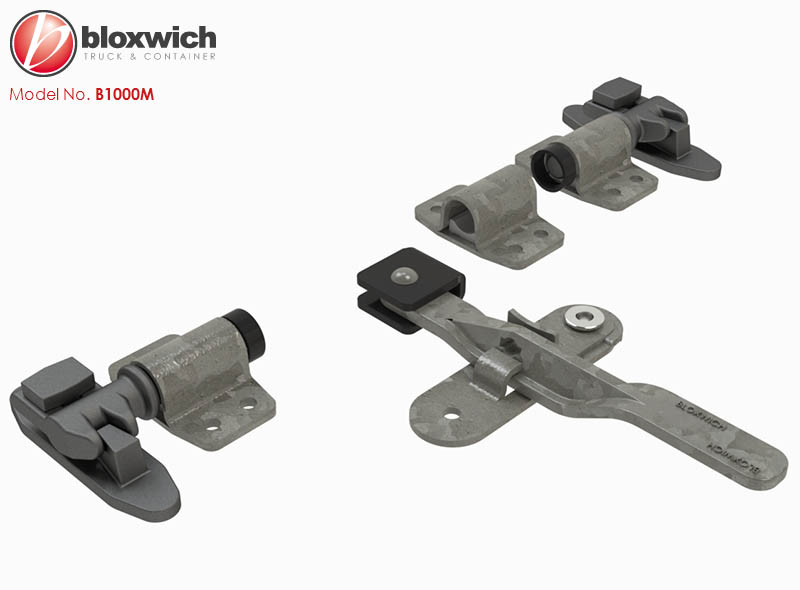

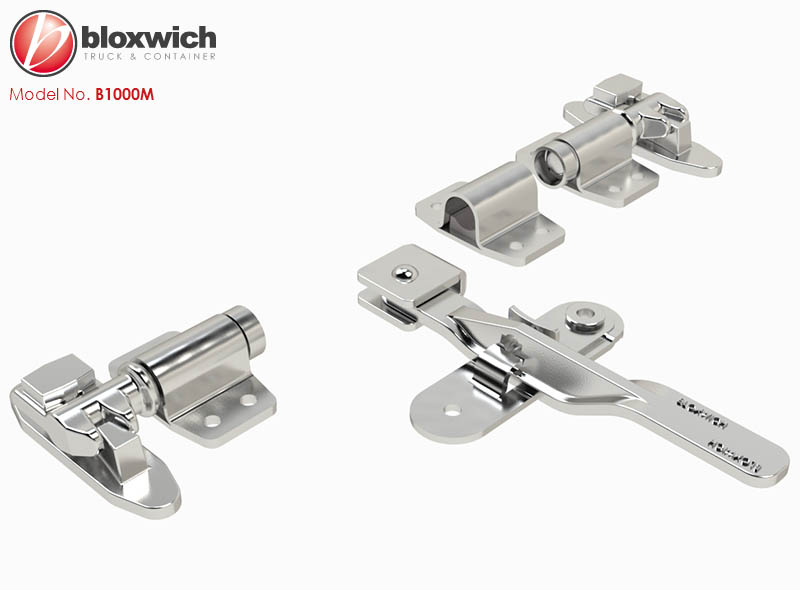

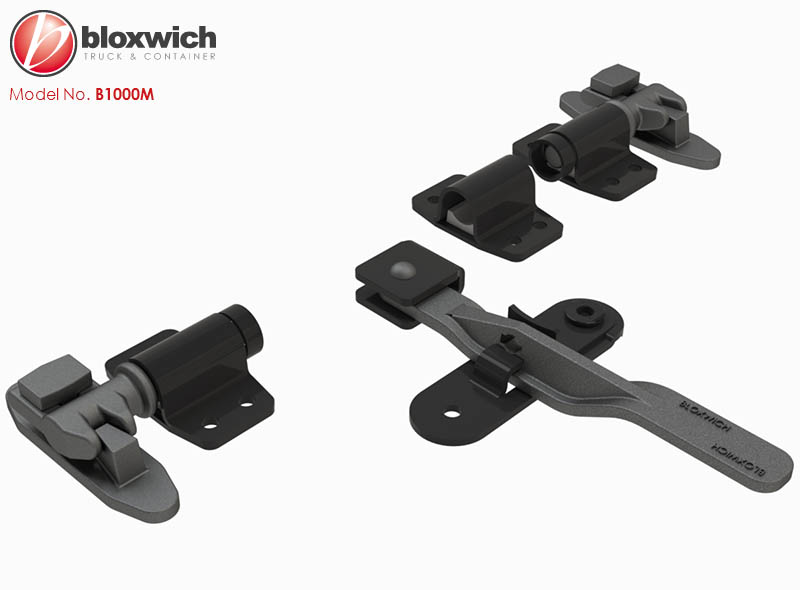

Supplied in: Self colour, zinc plated or galvanised*. Parts supplied loose, tube sold separately and fully welded also available.

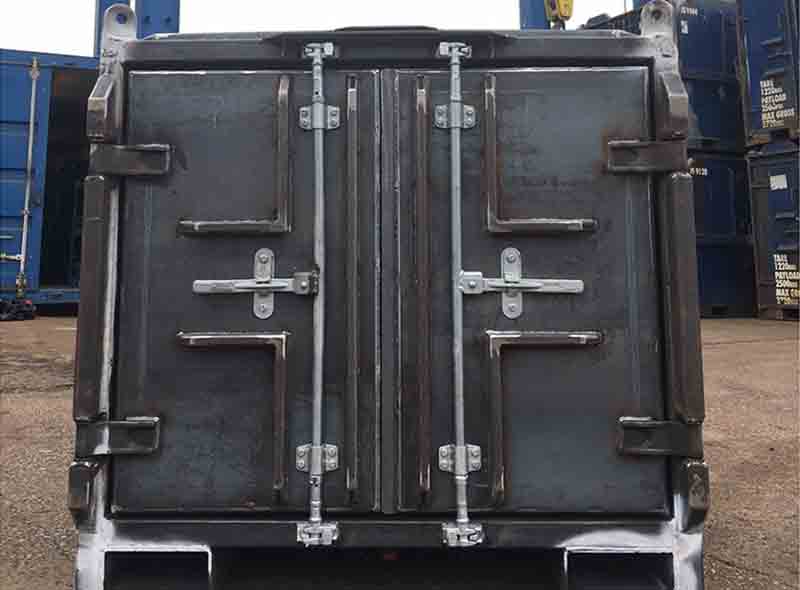

Use: Multi purpose door gear. Commonly used on LGV, offshore mud skip lids, access panels and storage cabinets etc. Fits left hand or right hand doors and can be mounted horizontally or vertically.
Key Features: Lightweight, low profile, provides anti racking, adjustable bearing bracket positions.
Notes: Parts supplied loose, tube sold separately and fully welded also available, please contact us to complete a lockrod chart.
Set weight in plastic bag: 2.7 kg Commodity Code 830249 GTIN 5060345310009
N/A
Door gear was a revamp of an old Bloxwich model B3525. Designed by Bloxwich in 1975. All Bloxwich part numbers are protected by trademark ®TM and copyright ©.
On self colour kits all parts are supplied self colour, on zinc plated kits all parts are supplied zinc plated but on galvanised kits only the bolt on items are galvanised and the weld on items are supplied in self colour for ease of welding.
Fixing kit contains 1 M8 x 35 set screw (BCP13283), 13 M8 x 30 set screws (BCP13282), 14 flat washers (BCP13281) & 14 nyloc nuts (BCP13280) all are galvanised.
Gasket set contains BCP20086E x 3 & BCP13619 x 1

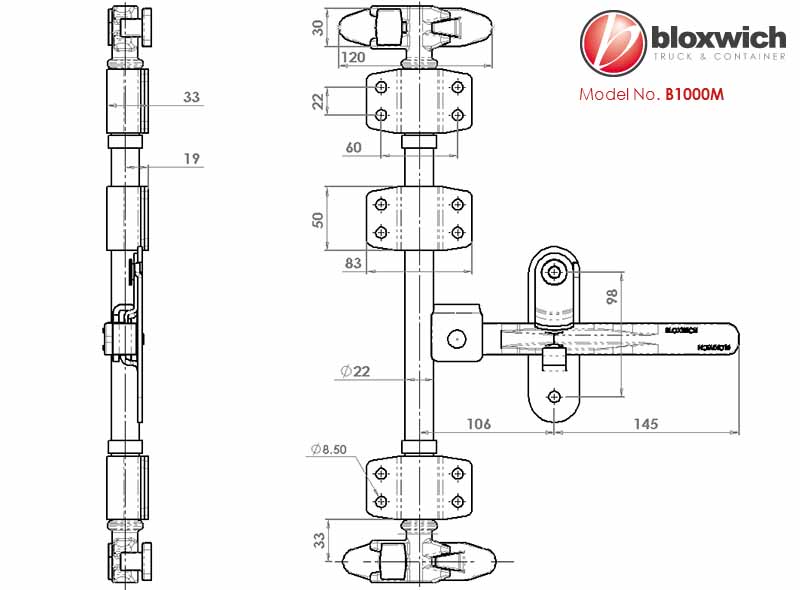

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
