Bloxwich Standard Patent Mild Steel Door Gear - HD: B2000MN, Ø27mm Door Locking Gear, Bushed, Bolt on Brackets & Keepers

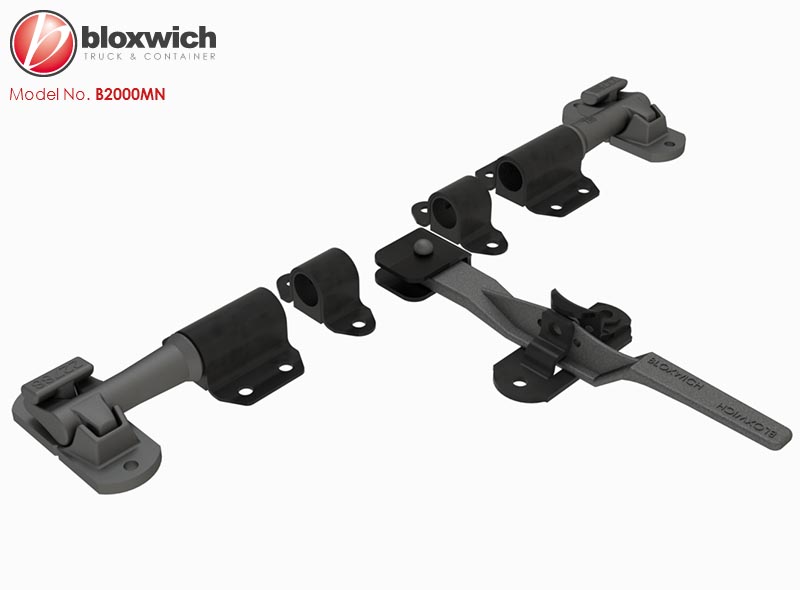

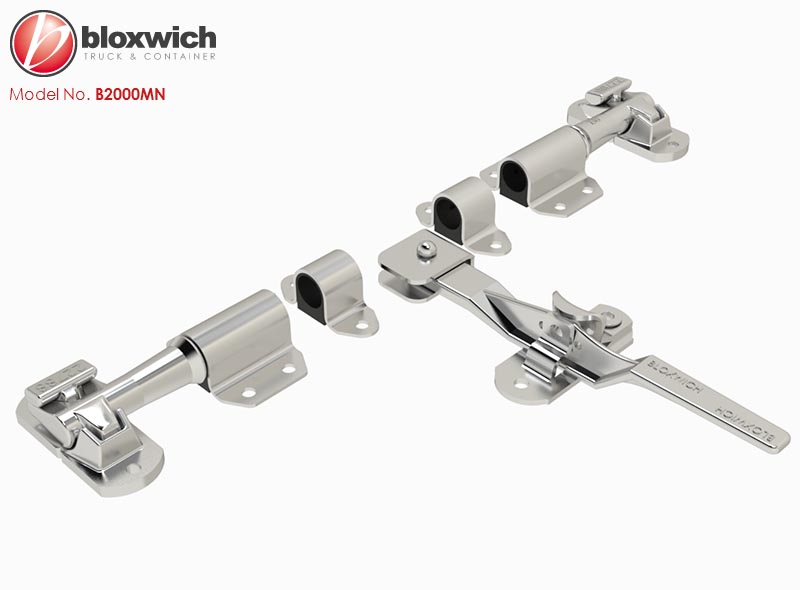

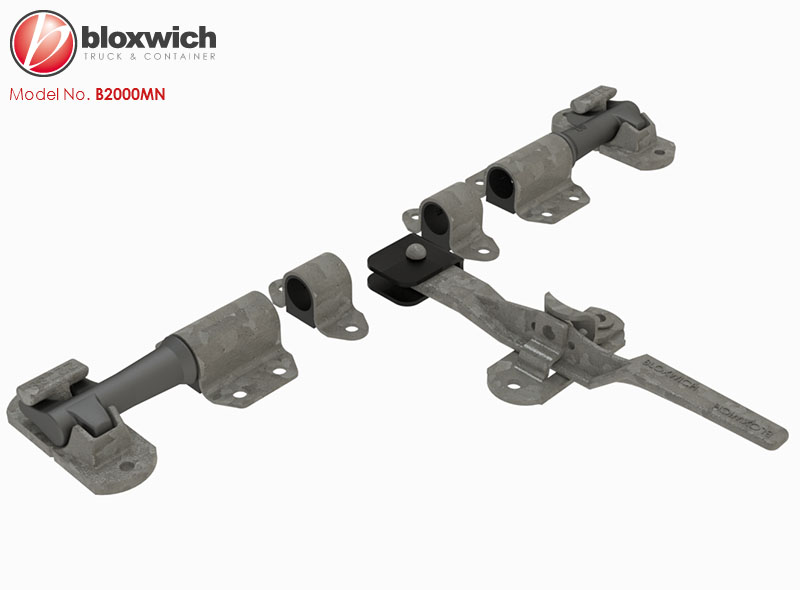

Supplied in: Zinc finish as standard, self colour or galvanised also available*. Parts supplied loose, tube sold separately and fully welded also available.
Use: Bolt on profile, provides anti racking. Fits left hand or right hand doors and can be mounted horizontally or vertically.
Set weight in plastic bag: 5.2 kg Commodity Code 830249 GTIN 5060345310016
Cams: Standard, modified, ice breaker, security(seal), universal or narrow base*
Keepers: Weld on, bolt on, security(seal), offset or narrow base*
Handles: Small forged, forged, D grip, pressed or pressed long. Forged, D grip, pressed or pressed long wraparound handle hub assemblies. Handle sleeves are also available*
Only selected door gear models are currently shown online, numerous other combinations can be supplied to meet the demands of customers, please contact us for further details.
*Not available on all models and see illustrations for further details.
This door gear was the first Bloxwich model to use 22789 cam and 22788 keeper. Designed by Bloxwich circa 1977 and was a modification from BE2000. All Bloxwich part numbers are protected by trademark ®
TM and copyright ©.
Click
HERE to see the full news article on the B2000MN door gear history.
Coming soon.
On self colour kits all parts are supplied self colour, on zinc plated kits all parts are supplied zinc plated but on galvanised kits only the bolt on items are galvanised and the weld on items are supplied in self colour for ease of welding.
Fixing kit contains 5 M10 x 35 set screw (BCP14887), 13 M10 x 30 set screws (BCP14886), 18 flat washers (BCP14885) & 18 nyloc nuts (BCP14884) all are galvanised.
Gasket set contains BCP20109E x 2, BCP20082E x 2, BCP20085E x 2 & BCP13618E x 1
Click

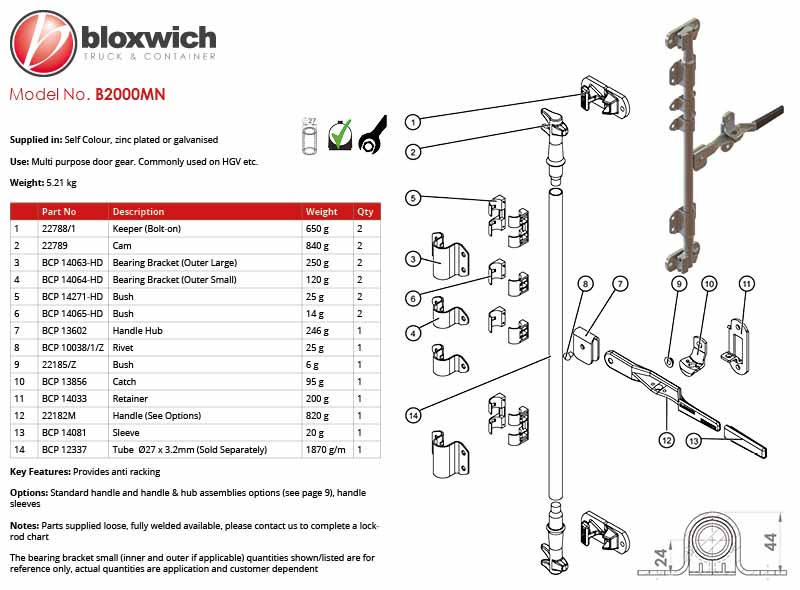

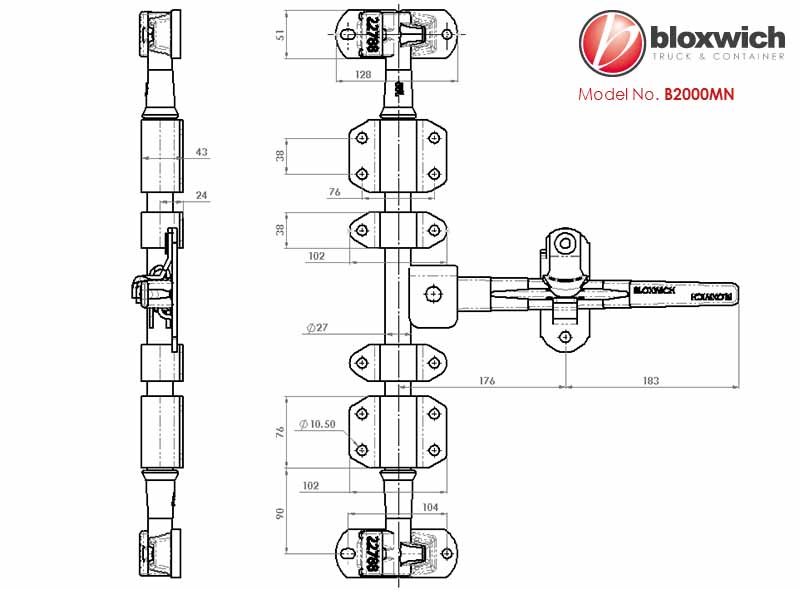

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
