Bloxwich Standard Patent Design Mild Steel Door Gear: B2000N, Ø27mm Door Locking Gear, Un-Bushed, Bolt on Brackets & Narrow Base Keepers

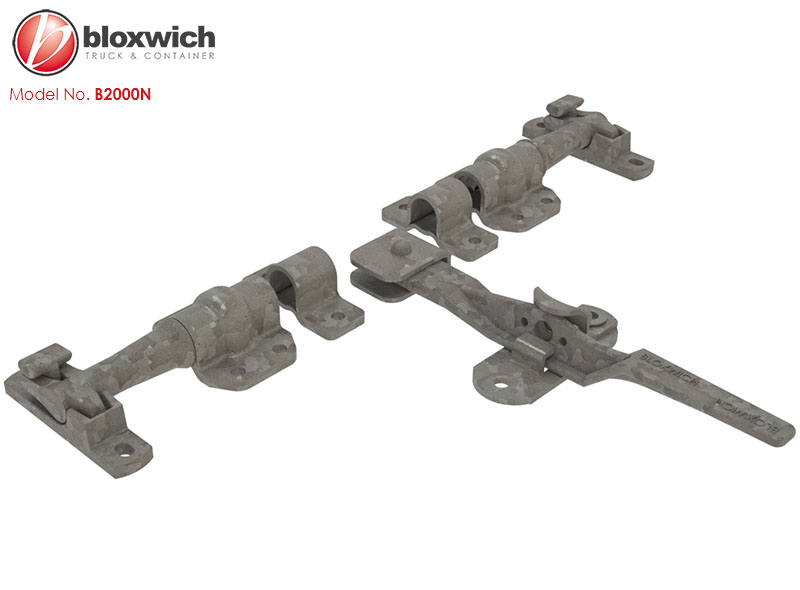

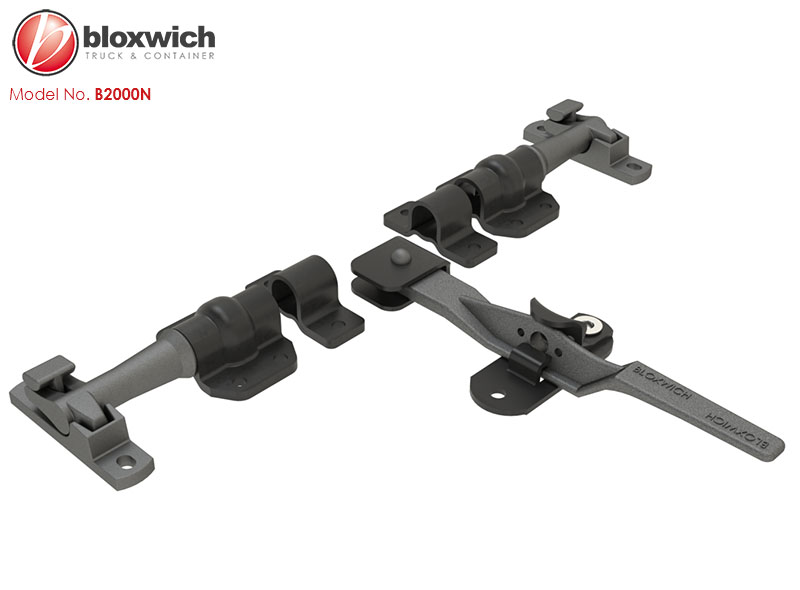

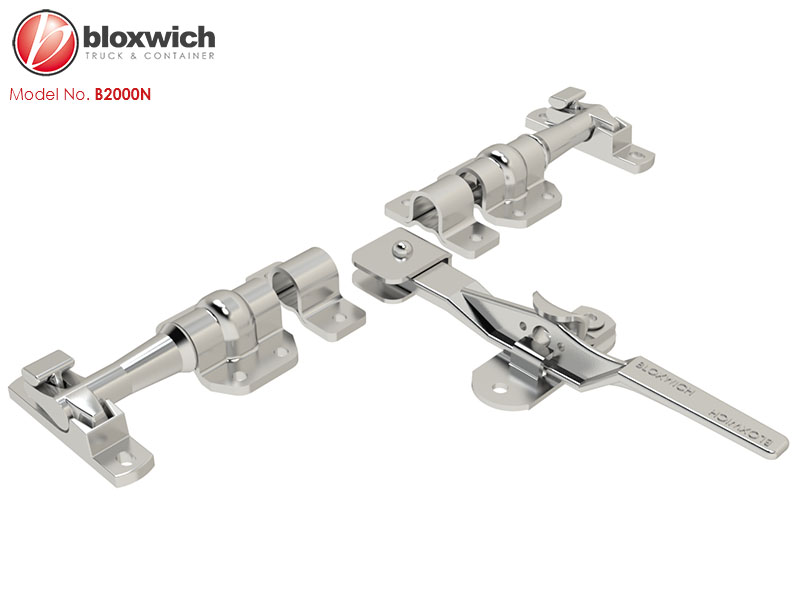

Supplied in: Self colour, zinc plated or galvanised*. Parts supplied loose, tube sold separately and fully welded also available.
Use: Multi purpose door gear. Commonly used on HGV etc. Fits left hand or right hand doors and can be mounted horizontally or vertically.
Key Features: Provides anti racking
Notes: Parts supplied loose, tube sold separately and fully welded also available, please contact us to complete a lockrod chart.
Set weight in plastic bag: 5.3 kg Commodity Code 830249 GTIN 5060345310016
Cams: Standard, modified, ice breaker, security(seal), universal or narrow base*
Keepers: Weld on, bolt on, security(seal), offset or narrow base*
Handles: Small forged, forged, D grip, pressed or pressed long. Forged, D grip, pressed or pressed long wraparound handle hub assemblies. Handle sleeves are also available*
Only selected door gear models are currently shown online, numerous other combinations can be supplied to meet the demands of customers, please contact us for further details.
*Not available on all models and see illustrations for further details.
Door gear was the first Bloxwich model to use 22789 cam and 22788 keeper. Designed by Bloxwich circa 1977 and was a modification from BE2000. All Bloxwich part numbers are protected by trademark ®TM and copyright ©.
Coming soon.
On self colour kits all parts are supplied self colour, on zinc plated kits all parts are supplied zinc plated but on galvanised kits only the bolt on items are galvanised and the weld on items are supplied in self colour for ease of welding.
Fixing kit contains 18 M10 x 35 set screw (BCP14887), 18 flat washers (BCP14885) & 18 nyloc nuts (BCP14884) all are galvanised.

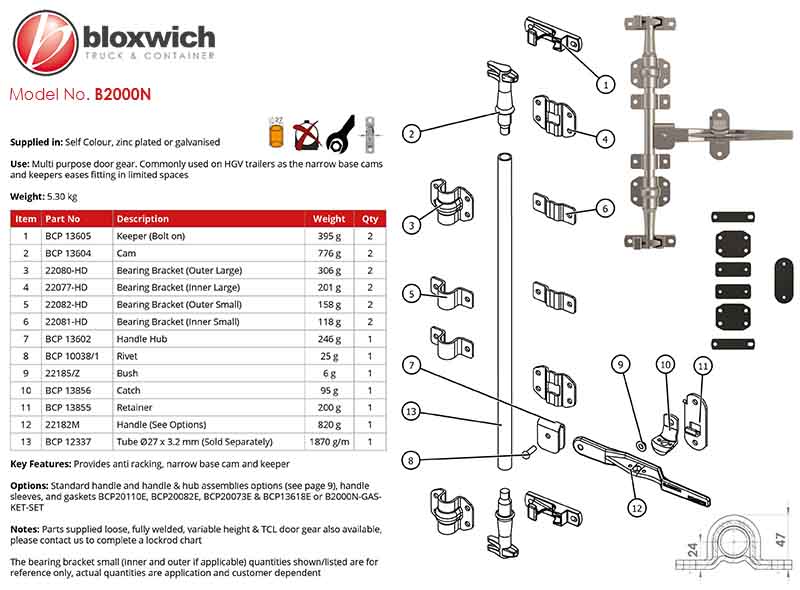

Gasket set contains BCP20110E x 2, BCP20082E x 2, BCP20073E x 2 & BCP13618E x 1

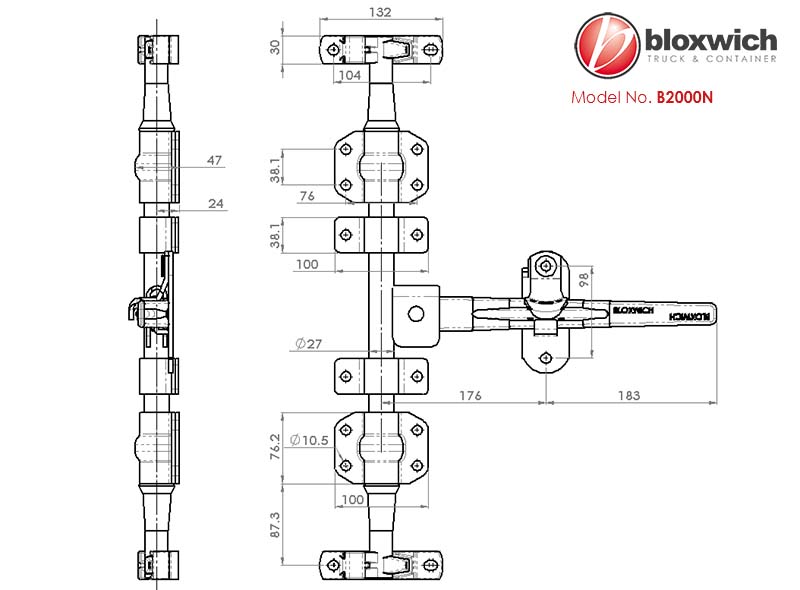

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
