Bloxwich Standard Patent Design Mild Steel Door Gear: B2566, 34mm Door Locking Gear, Bushed, Bolt on Brackets & Keepers

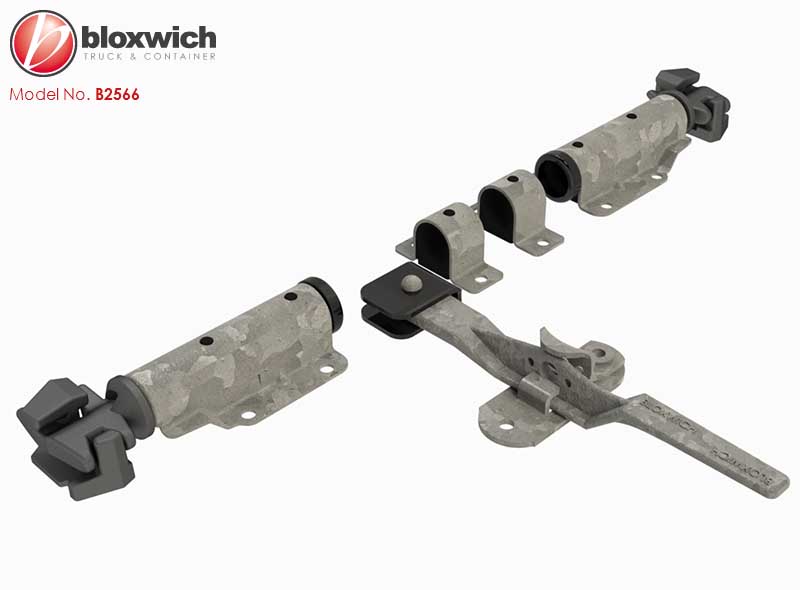

Supplied in: Galvanised finish as standard (bolt on parts), Self Colour (welded parts). Parts supplied loose, tube sold separately and fully welded also available.
Use: Standard on ISO and offshore containers, approved by Lloyds Register. Swan neck outer bearing brackets clear door seals. Fits left hand or right hand doors and can be mounted horizontally or vertically.
Set weight in plastic bag: 4.9 kg Commodity Code 830249 GTIN 5060345313659
Cams: Standard, modified, ice breaker, security(seal), universal or narrow base*
Keepers: Weld on, bolt on, security(seal), offset or narrow base*
Handles: Small forged, forged, D grip, pressed or pressed long. Forged, D grip, pressed or pressed long wraparound handle hub assemblies. Handle sleeves are also available*
Only selected door gear models are currently shown online, numerous other combinations can be supplied to meet the demands of customers, please contact us for further details.
*Not available on all models and see illustrations for further details.
Door gear was a revamp of an old Bloxwich model. Designed by Bloxwich in 1968. All Bloxwich part numbers are protected by trademark ®TM and copyright ©.
Coming soon.

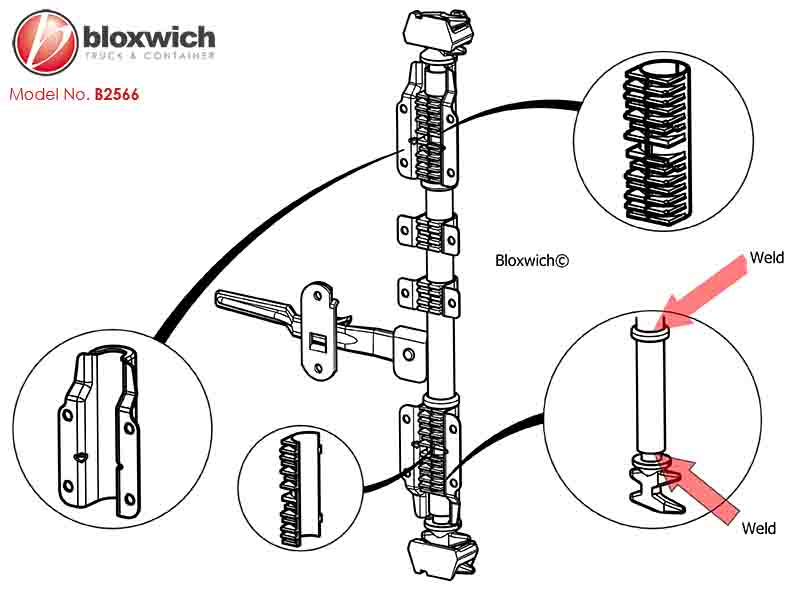

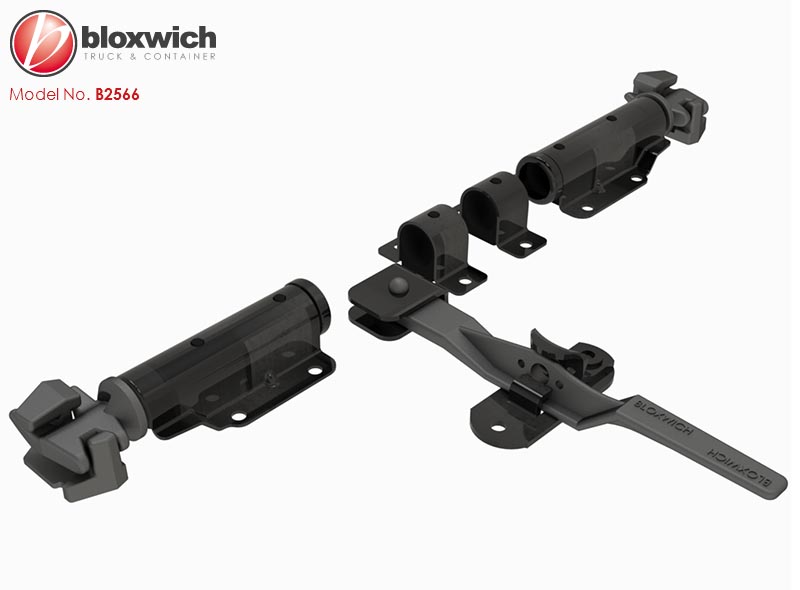

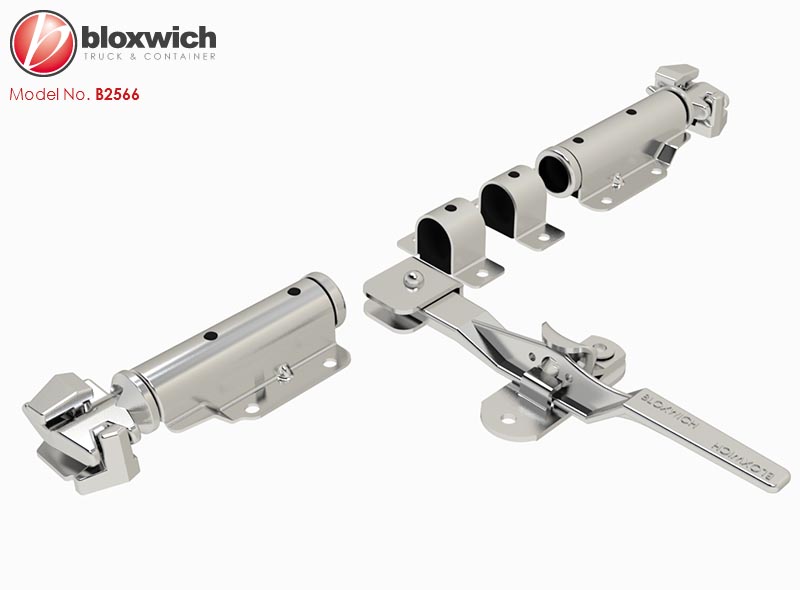

On self colour kits all parts are supplied self colour, on zinc plated kits all parts are supplied zinc plated but on galvanised kits only the bolt on items are galvanised and the weld on items are supplied in self colour for ease of welding.
Fixing kit contains 1 M10 x 35 set screw (BCP14887), 13 M10 x 30 set screws (BCP14886), 14 flat washers (BCP14885) & 14 nyloc nuts (BCP14884) all are galvanised.

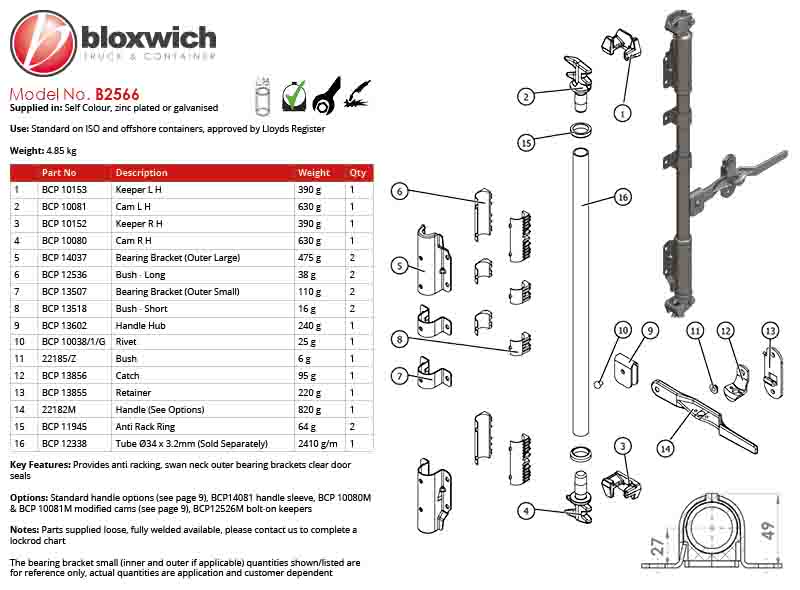

B2566-GASKET-SET is for weld on keepers and contains BCP13616E x 2, BCP13617E x 2 & BCP13618E x 1 and B2566-GASKET-SET2 is for bolt on keepers and contains BCP20106E x 2, BCP13616 x 2, BCP13617E x 2 & BCP13618E x 1

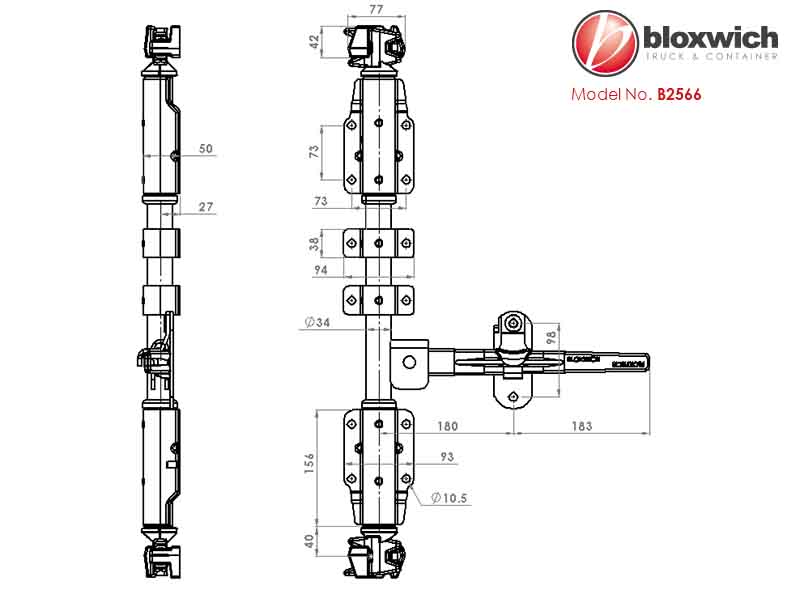

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
