Bloxwich Standard Patent Design: Mild Steel Store Door Hinge Assembly
Supplied in: Mild steel self colour
Use: General purpose fabricated hinge assembly for welding into RSA 40 x 40 frame or inside larger RSA's. Fitted with 304 stainless steel pin and Oilite bronze hinge bushes for a smooth and low maintenance operation
Weight: 1.2 kg Commodity No 830210 GTIN 5060345310375

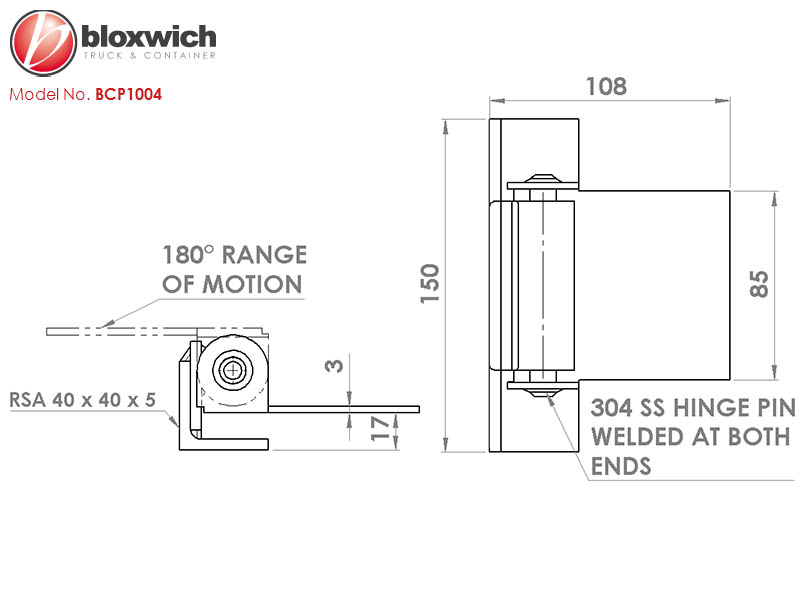

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
