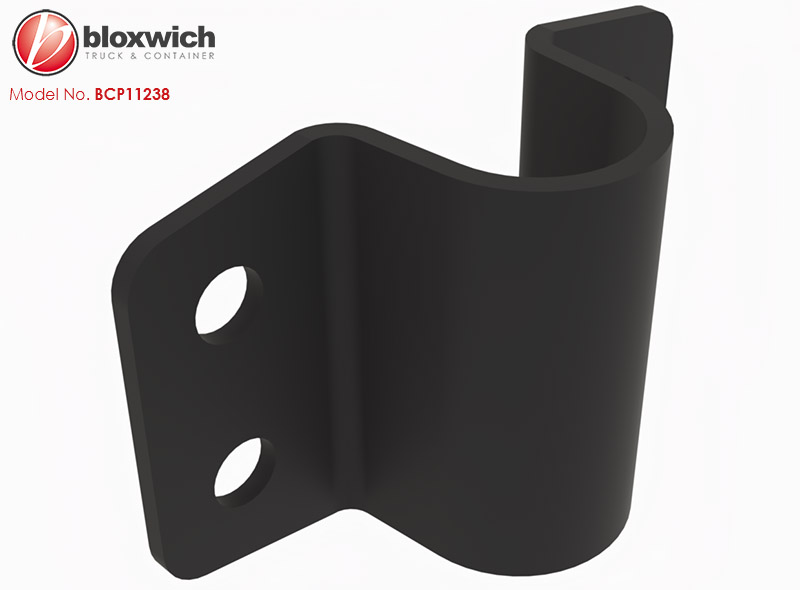

BCP11238 Bearing Bracket for B1000 Door Gear

Bloxwich Standard Pat Design: Bearing Bracket for B1000 Door Gear

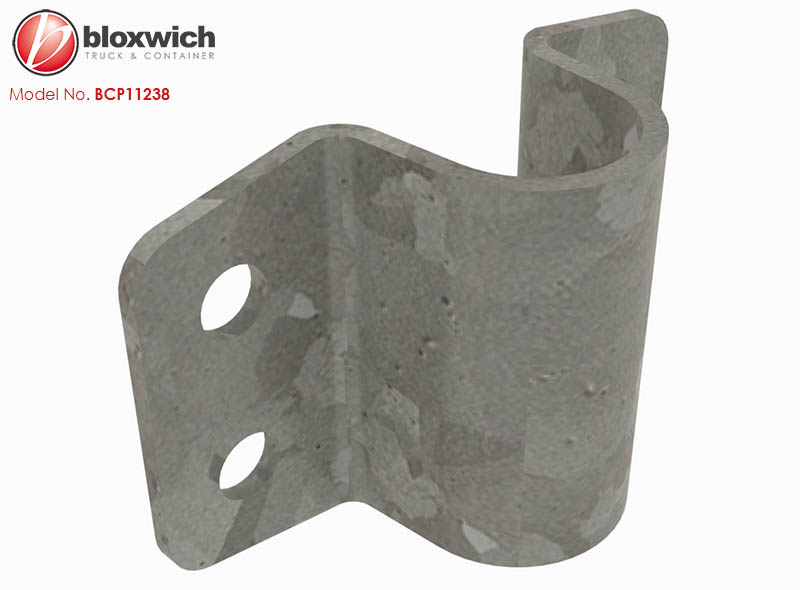

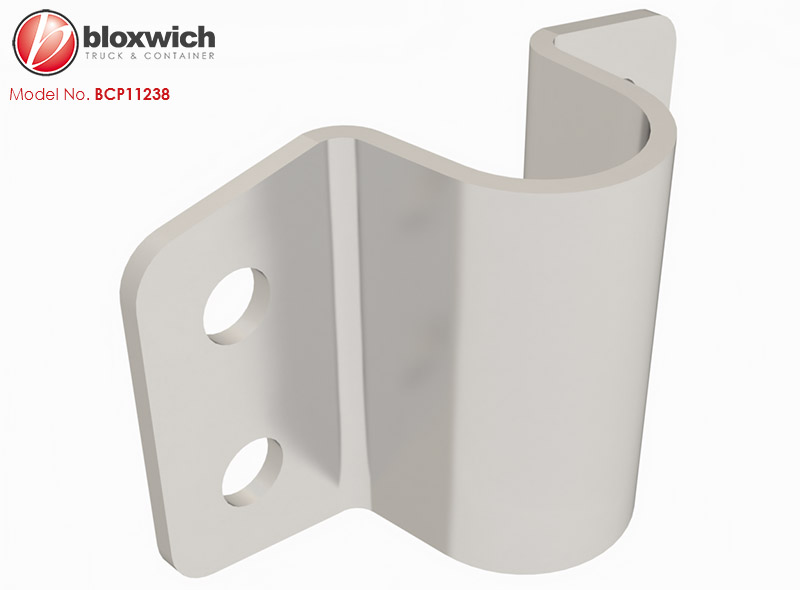

Supplied in: Self colour, zinc plated or galvanised

Use: On B1000 series door gear along with bush BCP11239 and packing plate BCP12188

Weight: 107 g  Commodity Code 830249  GTIN 5060345311310

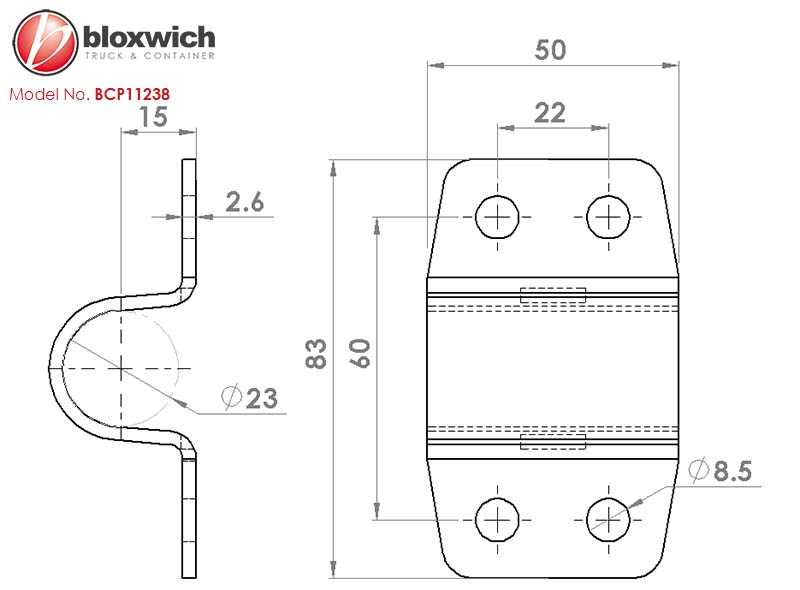

Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
