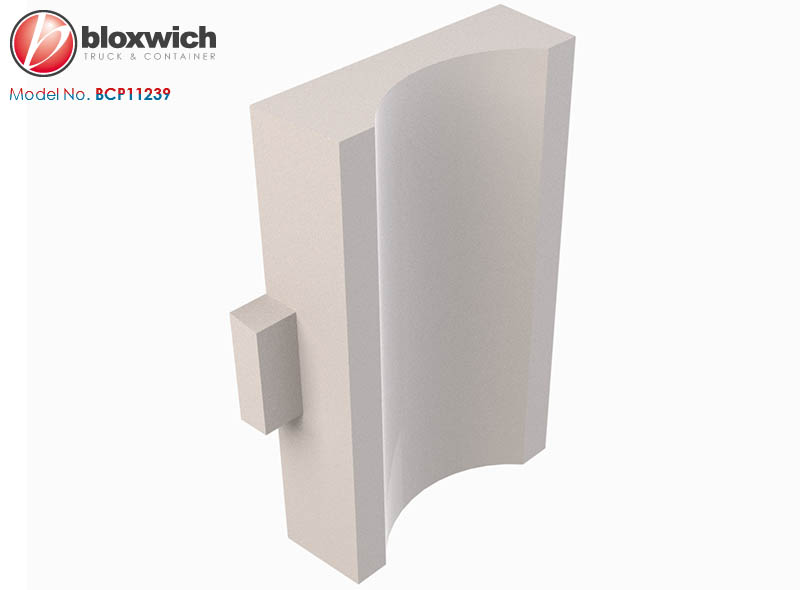

BCP11239 Dia 22mm Door Gear Bush for B1000 & BS1000

Bloxwich Standard Pat Design: Ø22mm Door Gear Bush for B1000 & BS1000

Supplied in: Injection moulded grey plastic

Use: On B1000 & BS1000 Ø22mm mild and stainless steel door gear

Weight: 4 g  Commodity Code 392630  GTIN 5060345311341

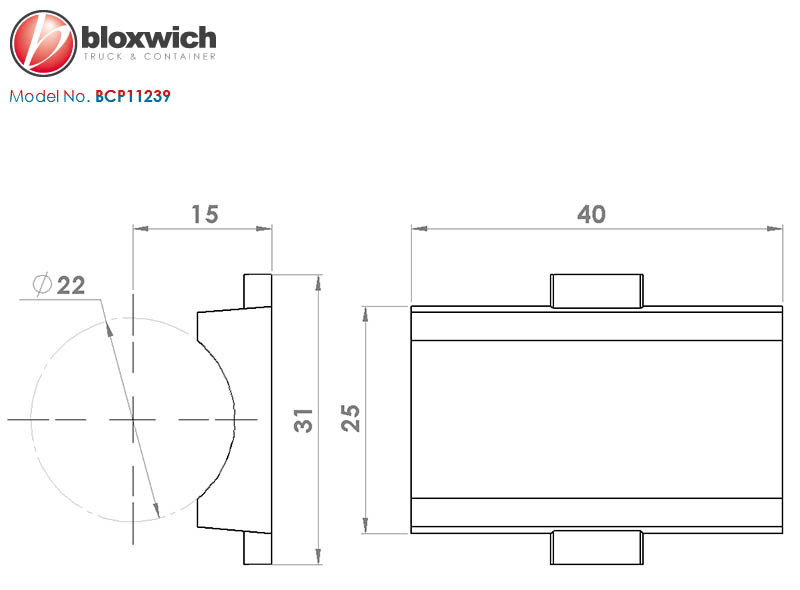

Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
