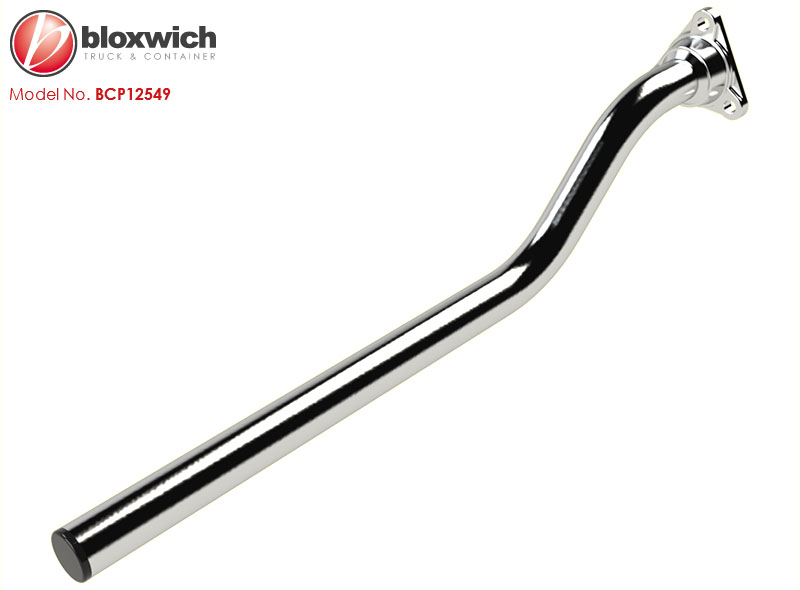

BCP12549/800 Mud Wing Stay, Spigot Fixing, Cranked Tube 800mm
BCP12549/800 Mud Wing Stay, Spigot Fixing, Cranked Tube 800mm   - view 1Drawing

BCP12549/800 Mud Wing Stay, Spigot Fixing, Cranked Tube 800mm

Price: £7.88 (ex VAT)
  • Please select
  • BCP12459/800Z Zinc Plated
  • BCP12459/800AT AT600

Description
Description


Bloxwich Standard Patent Design

Supplied in: Zinc plated or Armour-Tech 600 (AT600) surface coating with LDPE plastic plug

Use: Spigot fixing, cranked tube. Overall length 800mm. Other lengths and finishes available on request (subject to quantity), please contact us for a quote. Armour-Tech 600 (AT600) surface coating provides a durable finish with superior resistance to abrasion and corrosion.

Weight: 2.2 kg  Commodity Code 830249  GTIN 5060345312300


Fixing Kit
Fixing Kit


Contains 3 M10 x 35 set screw (BCP14887), 3 flat washers (BCP14885) & 3 nyloc nuts (BCP14884) all are galvanised.

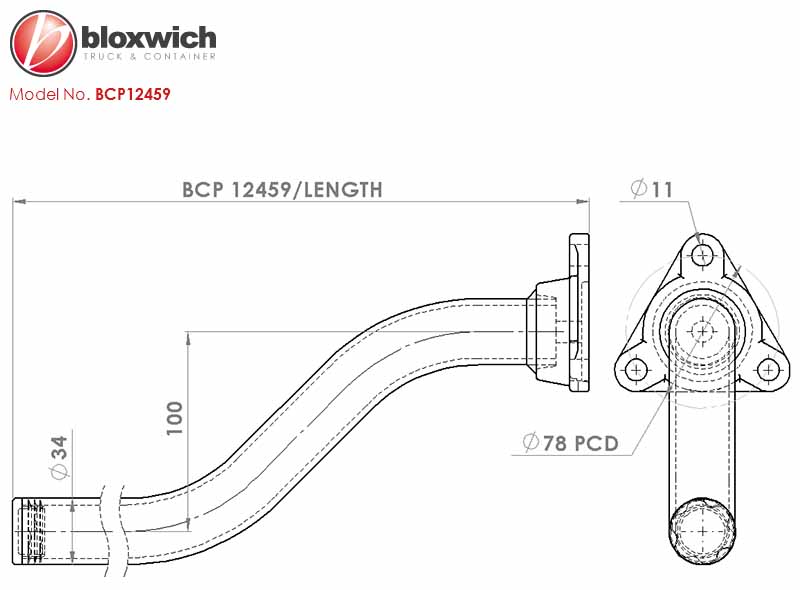

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
