Bloxwich Standard Design: BCP13020Z Cranked Door Hinge Assembly
Supplied in: Zinc finish as standard (please contact us if you require a different finish) with plastic and Oilite bronze sintered bushes and a stainless-steel pin
Use: For rear doors where column type tail-lifts are fitted, and the doors are recessed into the end frame. The longer hinge butts reach past the tail-lift columns to the corner posts. Supplied with or without holes but they are easily drilled for other bolting patterns and sizes. The 25mm wide butts can also be drilled and bolted if required.

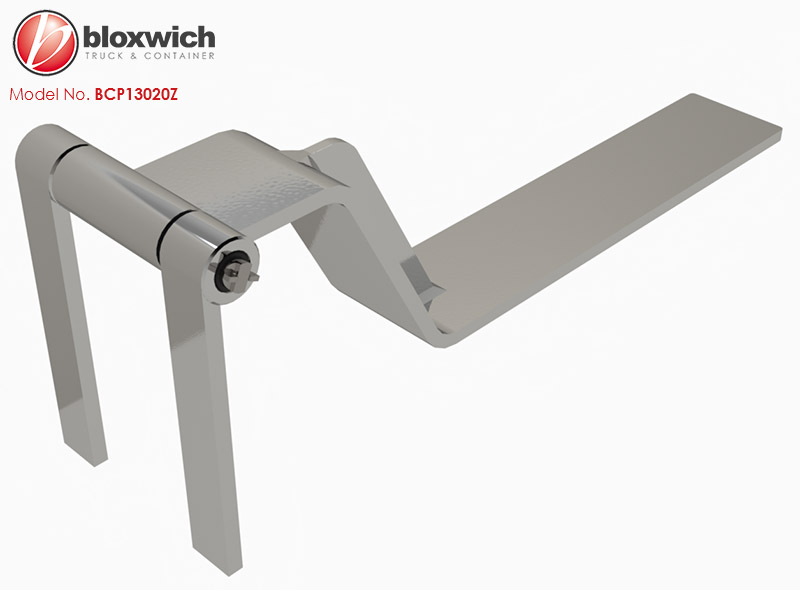

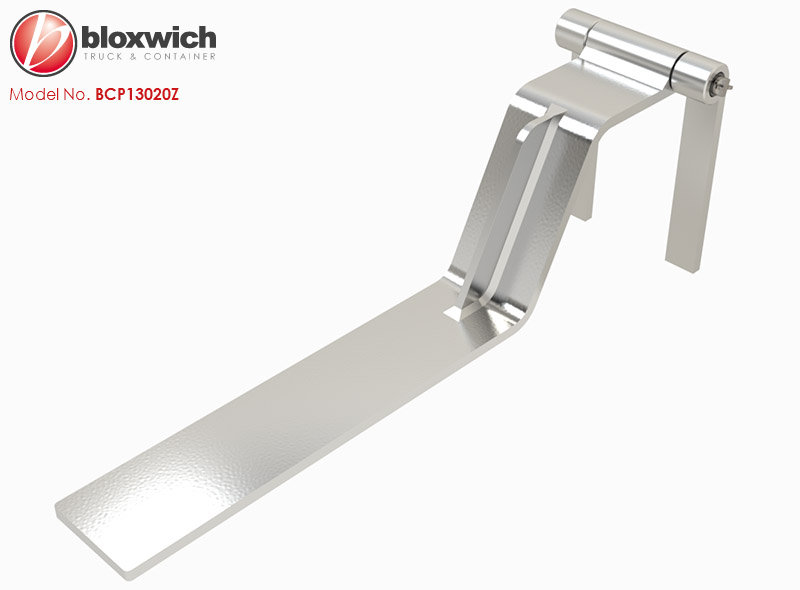

LH shown but they can be assembled as RH by removing the e clip and pin and reinserting them from the other side (so the hinge pin is always fitted from the top). The hinge butts can also face the other direction to give a greater offset and door opening angle.
Weight: 3.3 kg Commodity No 830210 GTIN 5060345312386
Better known as a tail-lift hinge the BCP13020Z was designed by Bloxwich in 1978.
Click

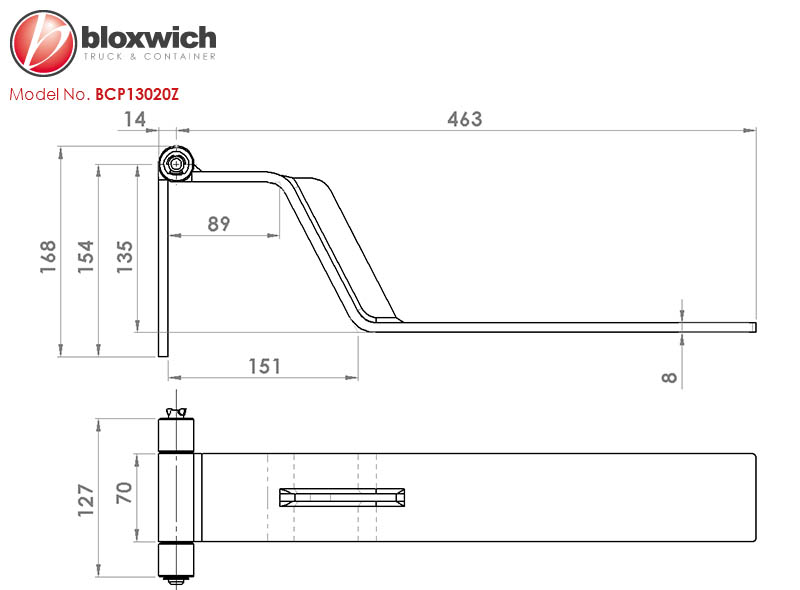

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
