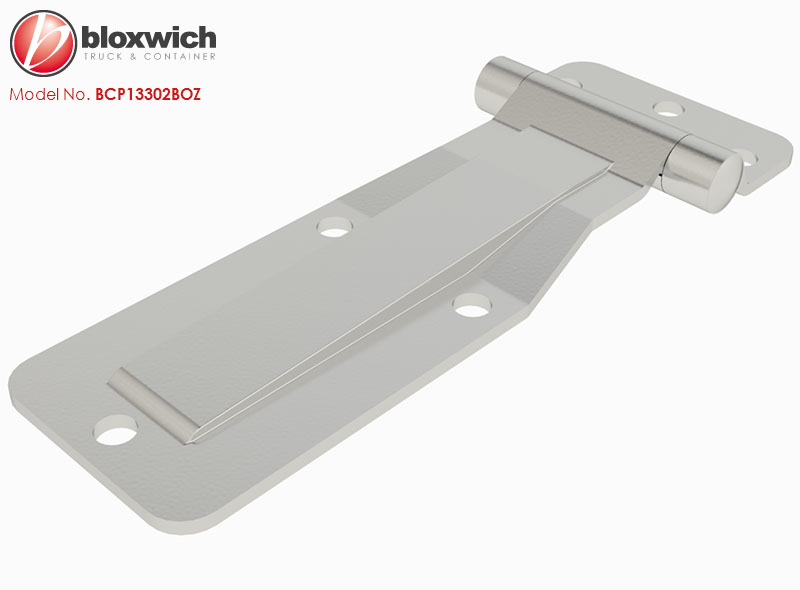

Bloxwich Standard Patent Design: Mild Steel Hinge 185mm
Supplied in: Mild steel zinc plated
Use: General purpose pressed mild steel hinge assembly. Swan neck design helps clear door seals.
No hole, square hole and other Ø hole sizes available on request (subject to quantity), please contact us for a quote.
Weight: 650 g Commodity No 830210 GTIN 5060345313765
Contains 6 M10 x 30 set screws (BCP14886), 6 flat washers (BCP14885) & 6 nyloc nuts (BCP14884) all are galvanised.

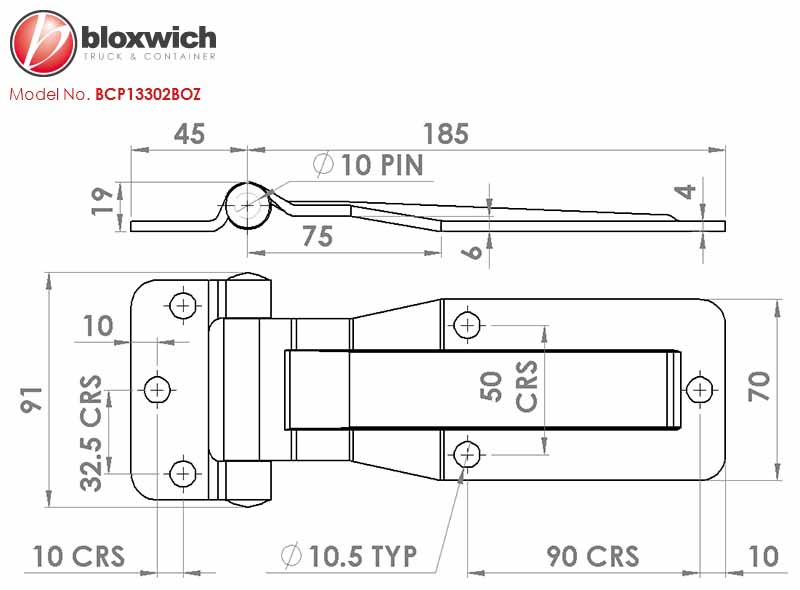

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
