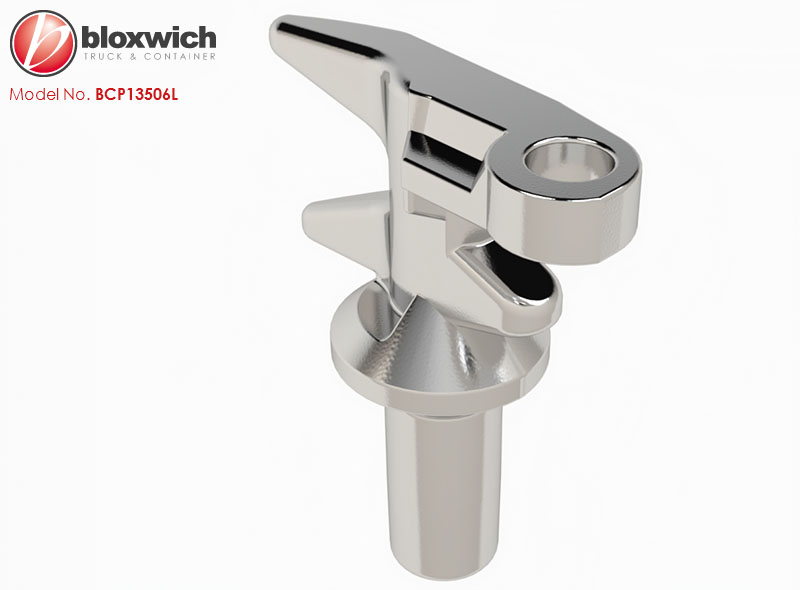

Bloxwich Standard Pat Design: BCP13506L Mild Steel Seal Cam LH
Supplied in: Forged steel, zinc plated

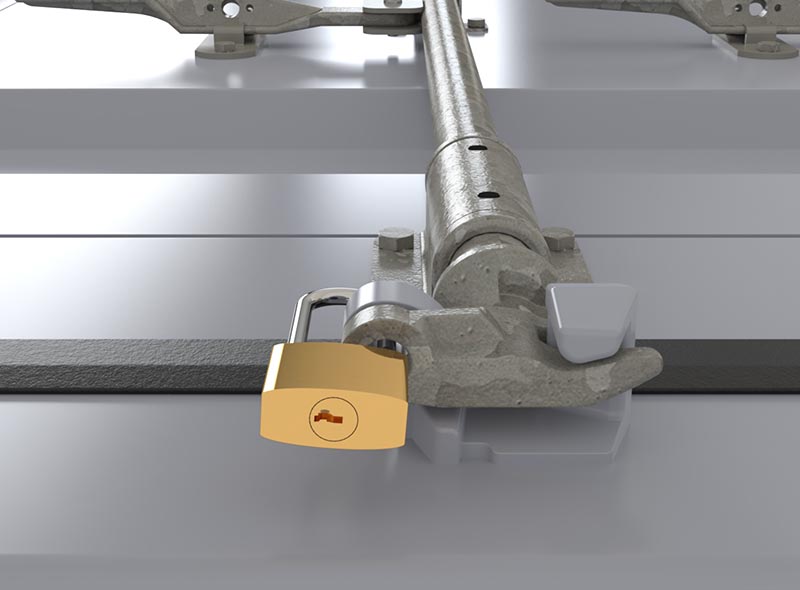

Use: With all mild steel Ø34mm bushed and unbushed door gear. Adds greater security to containers and commercial vehicles. Added security by locking the cam to the keeper. Eliminates problem of theft by handle rivet removal. Ø15mm hole for customs seal. Needs only to be fitted to one rod per container/vehicle. Can be supplied fully welded to rod or as loose parts for customer assembly.

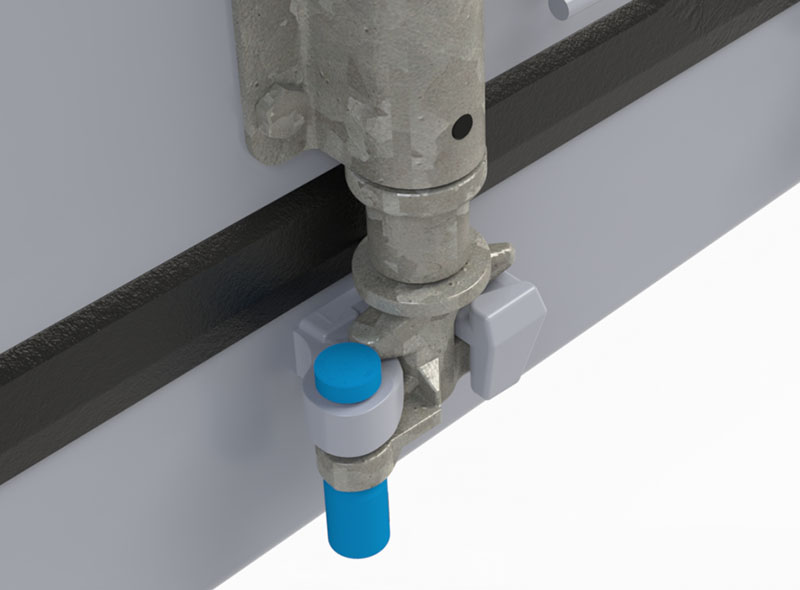

Fit at the bottom of LH lockrods on the overlapping door (usually the RH door).
Weight: 750 g Commodity Code 830249 GTIN 5060345316124
Click

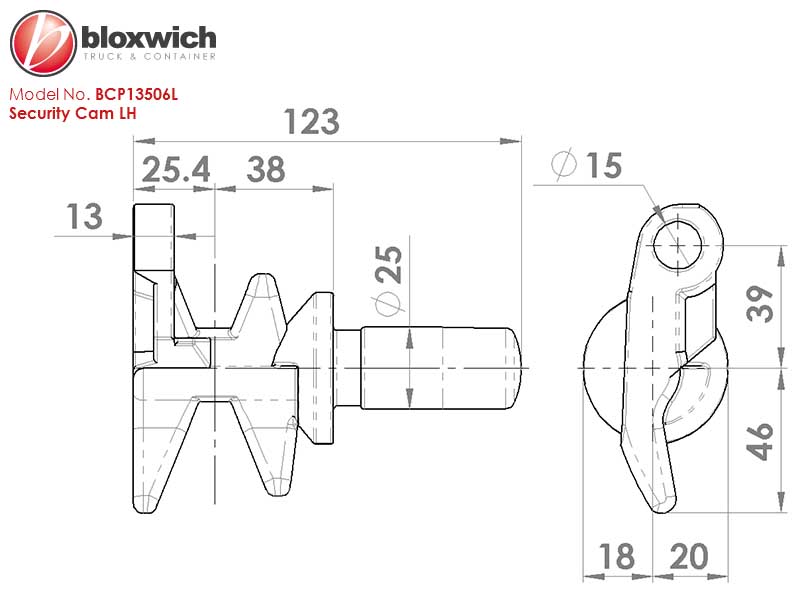

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
