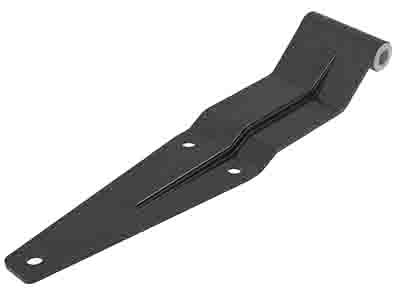

Bloxwich Standard Patent Design: Mild Steel Pressed Hinge 312mm

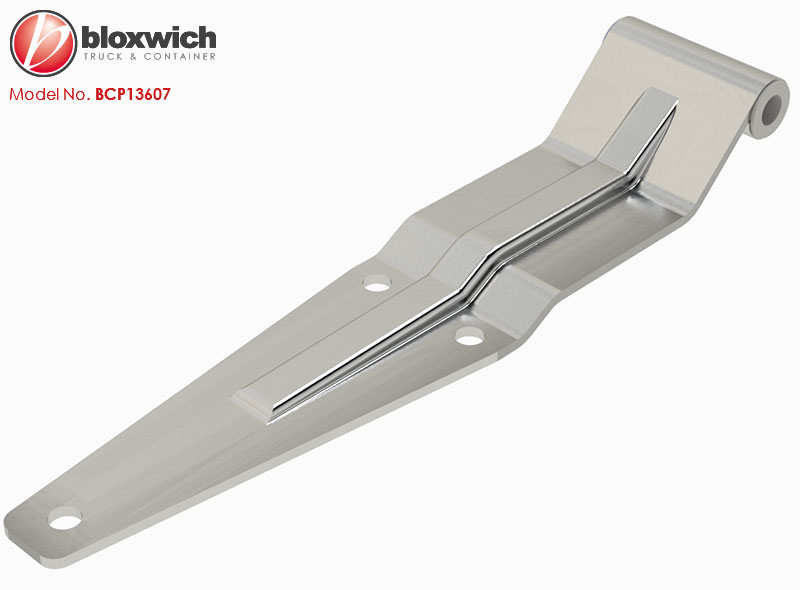

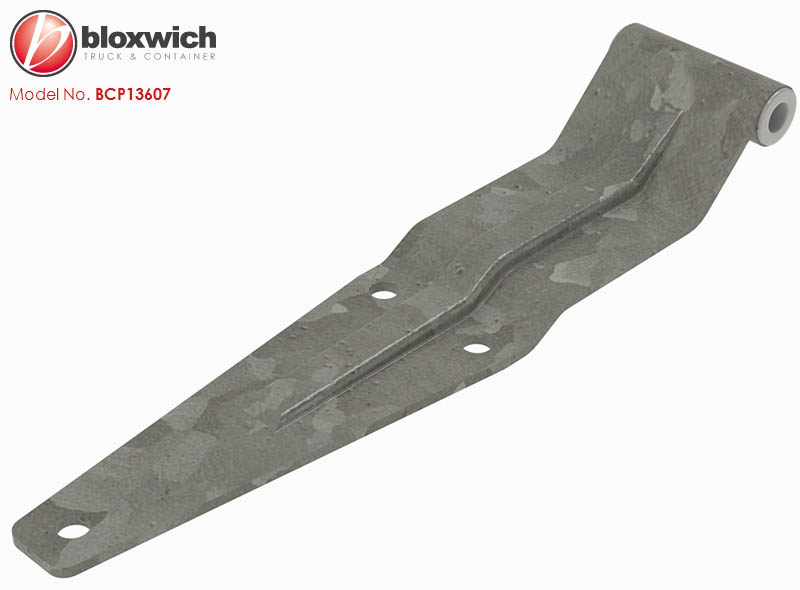

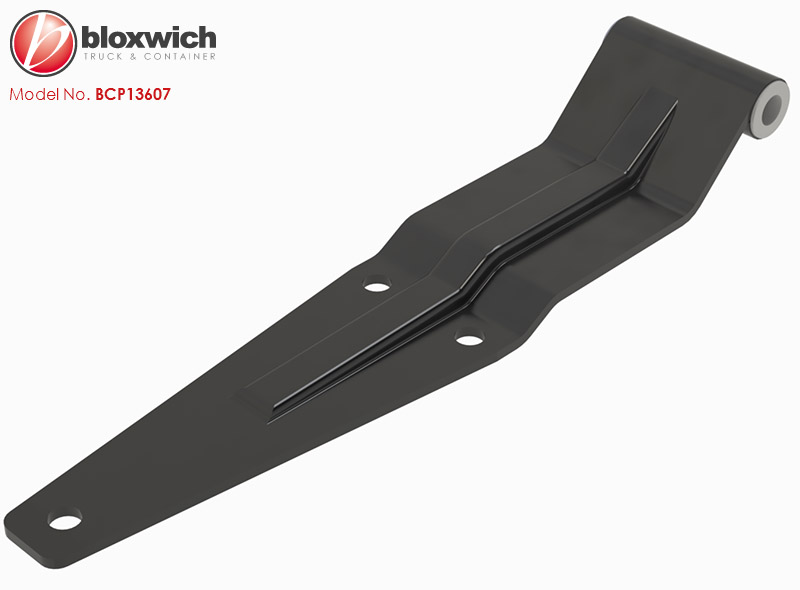

Supplied in: Self colour, zinc plated, galvanised or polyester
Use: Bolt-on design, bushed to suit M12 bolt or Ø12 stainless steel hinge pin or 1/2" bolt or Ø12.7 hinge pin. Narrow hinge width can help when fitting directly to door or gate frames etc.
Weight: 765 g Commodity No 830210 GTIN 5060345310399
Click

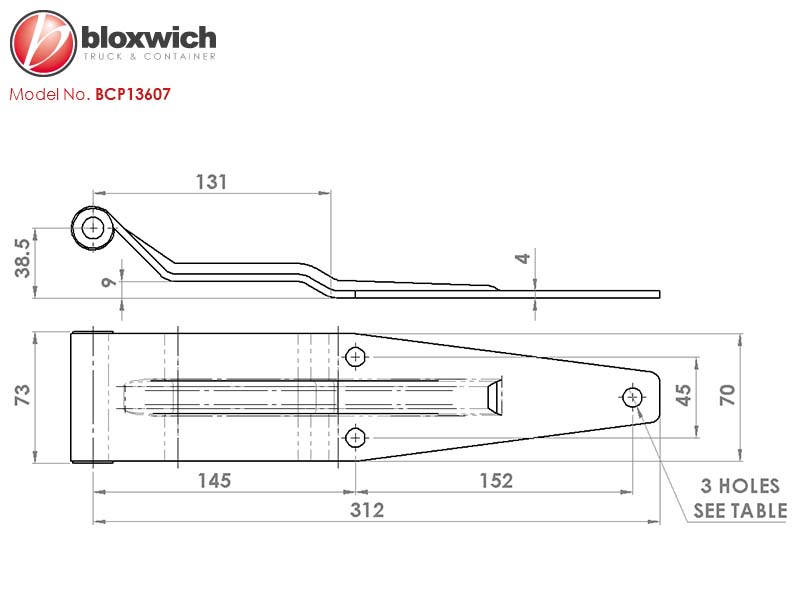

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
