BCP13608B Mild Steel Bolt on Hinge Bracket 74mm (Vertical)

Bloxwich Standard Patent Design: Mild Steel Bolt on Hinge Bracket 74mm (Vertical)

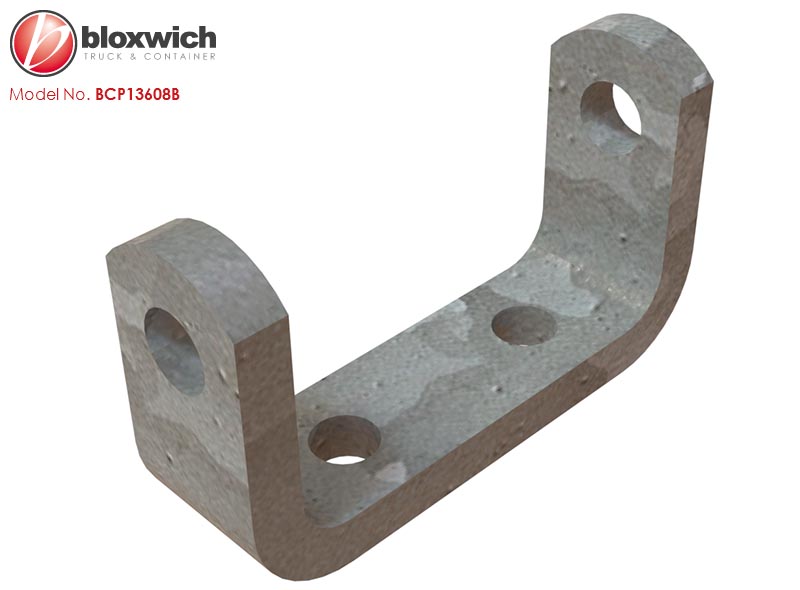

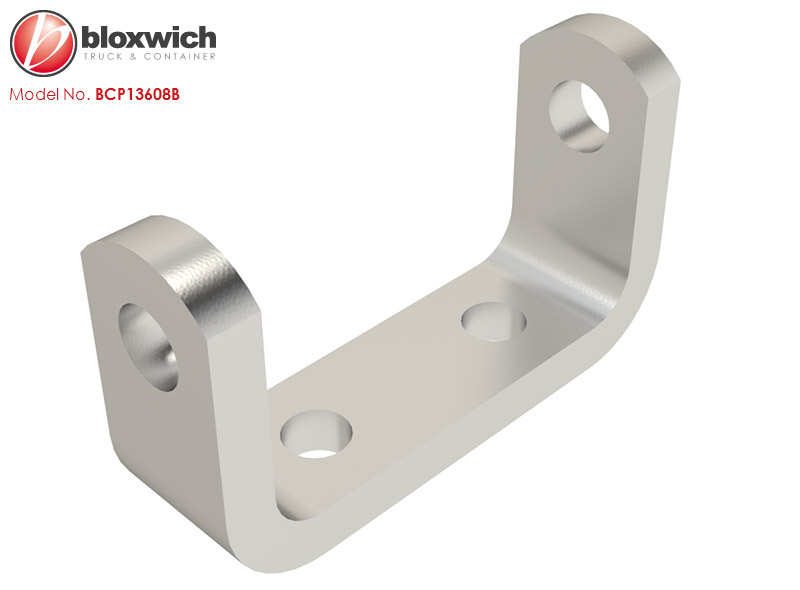

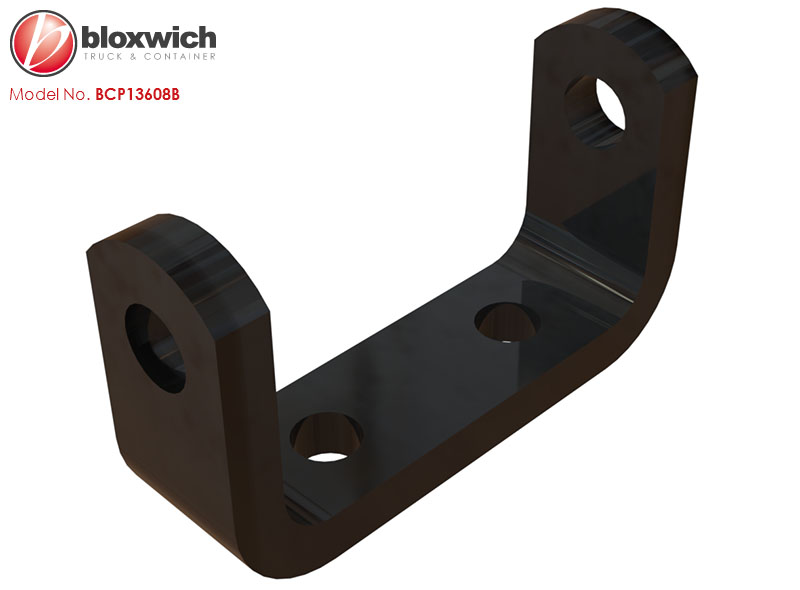

Supplied in: Self colour, zinc plated or galvanised

Use: Pivot hole size to suit M12 bolt or Ø12 hinge pin

Weight 230 g  Commodity No 830249  GTIN 5060345310467

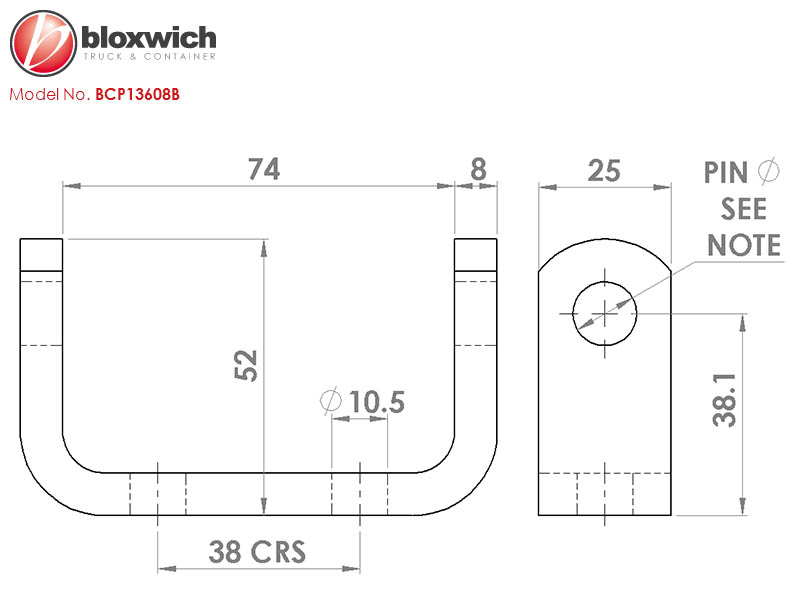

Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
