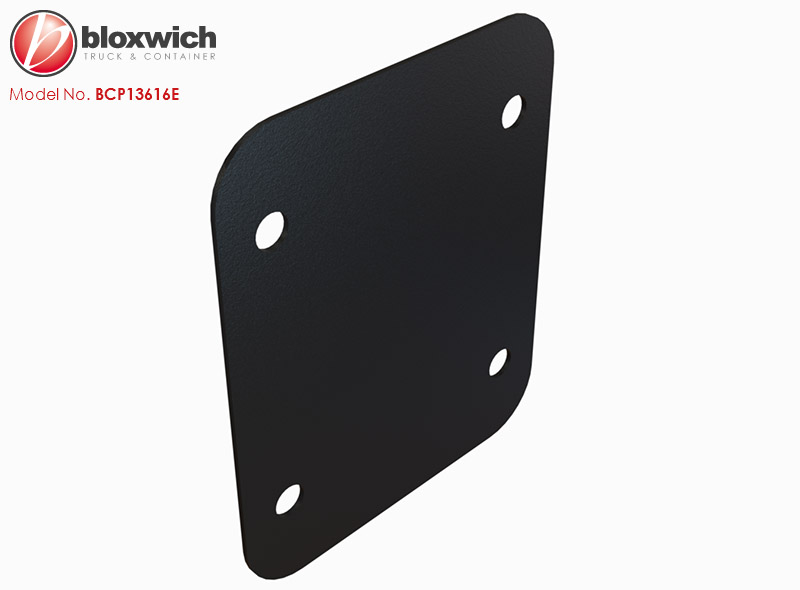

Bloxwich Standard Product: BCP13616E Bearing Bracket Outer Large Gasket
Supplied in: EPDM Rubber

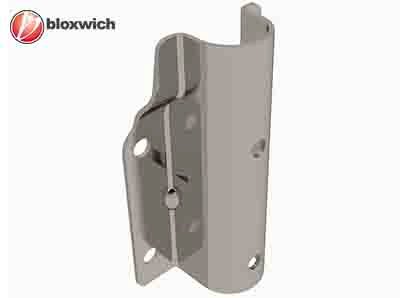

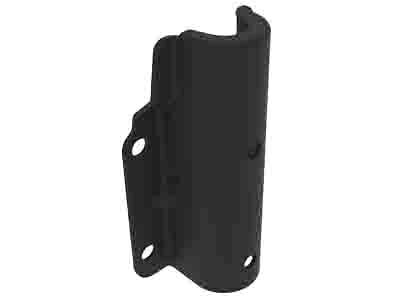

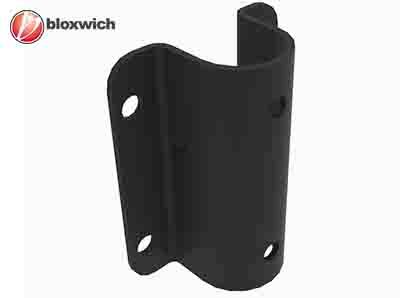

Use: On BC(S)P12684 & BCP14037 bearing brackets outer large (part of B2566, BE2566M and BS2566M door gear) to prevent door componentry from 'in service' abrasion with door surface, and possible 'galvanic' corrosion encountered when some dissimilar materials are in direct contact with each other. Others sizes available on request
Weight: 21 g Commodity No 400829 GTIN 5060345314380
Originally developed decades ago and now reintroduced by request

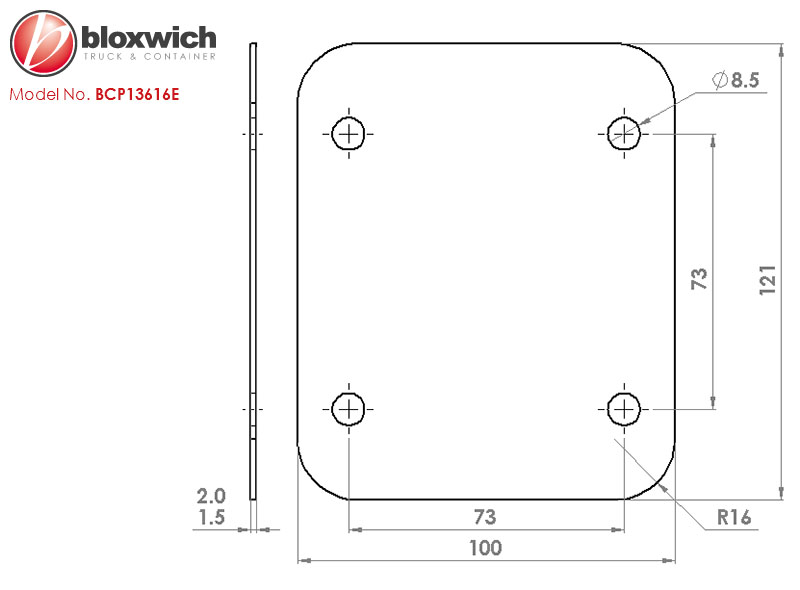

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
