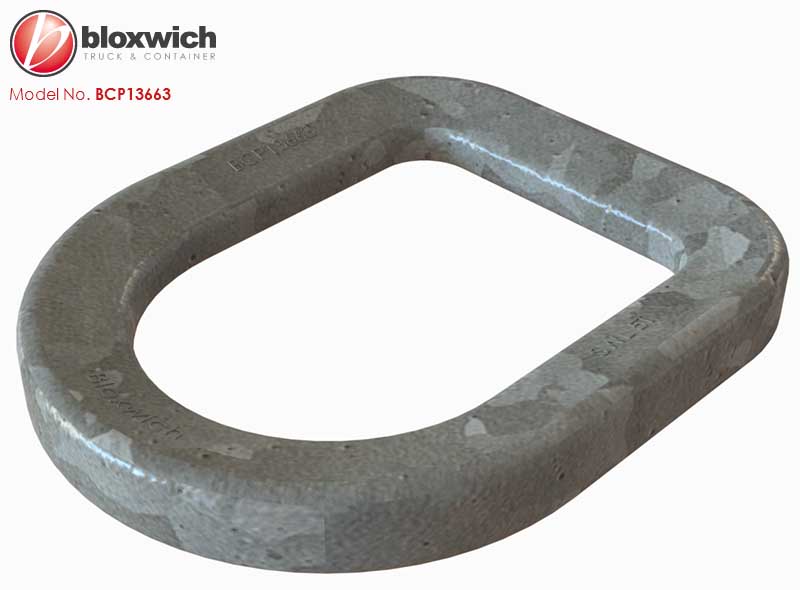

Bloxwich Standard Patent Design: SWL 5T* Lashing Ring
Supplied in: Self colour or galvanised

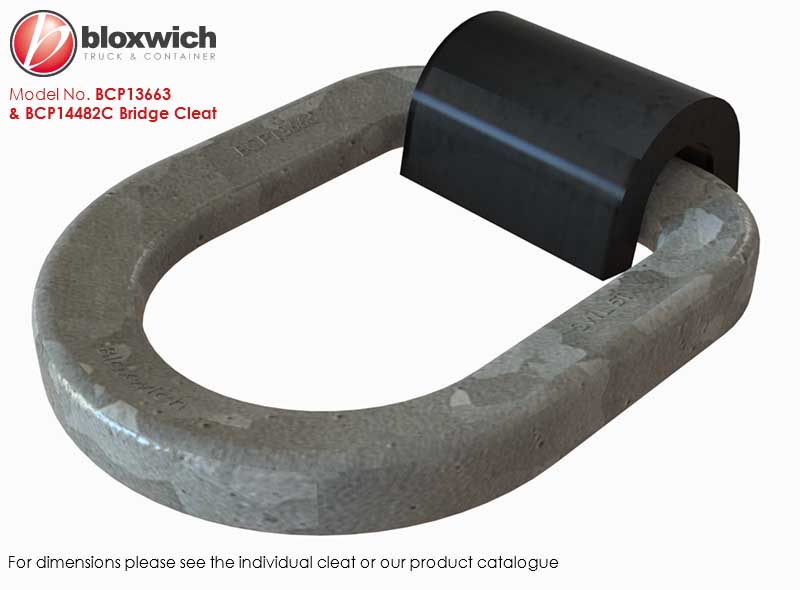

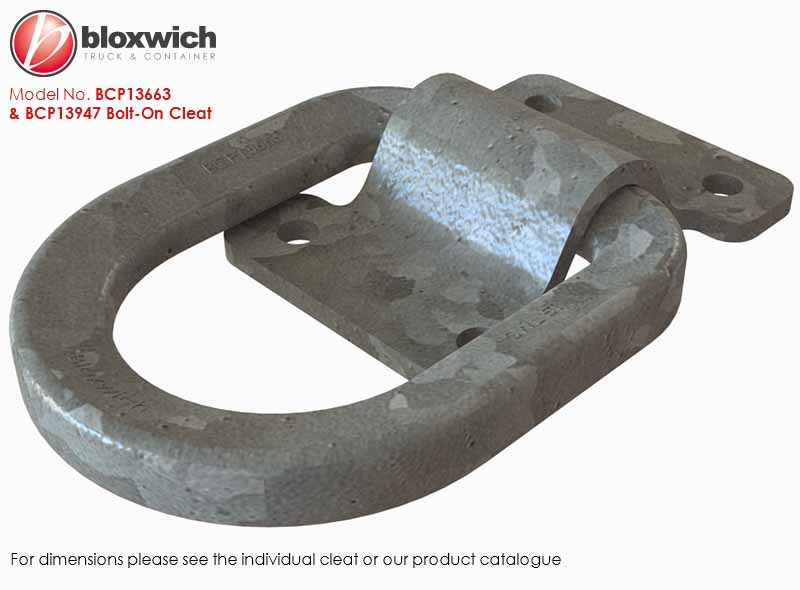

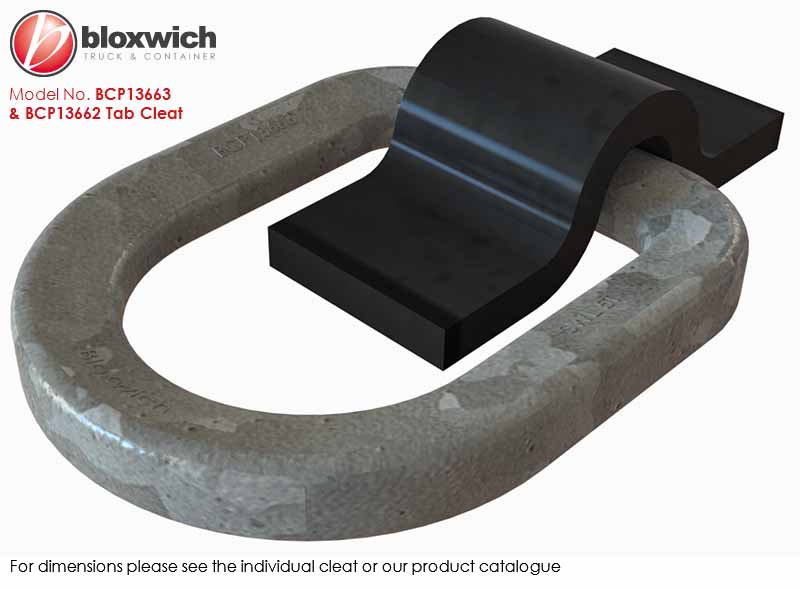

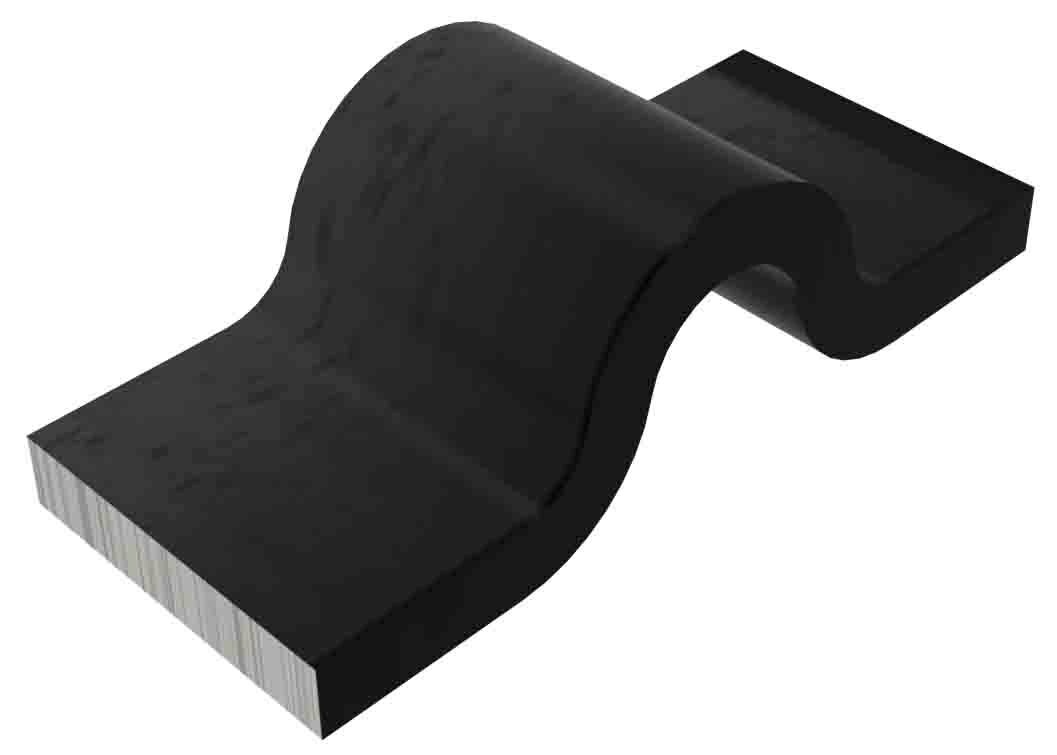

Use: Standard forged steel lashing ring for use with Bloxwich tab, bridge or bolt on cleats (where available)
Weight: 1.0 kg Commodity No 830249 GTIN 5060345310047
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.
Designed by Bloxwich in 1992
Click

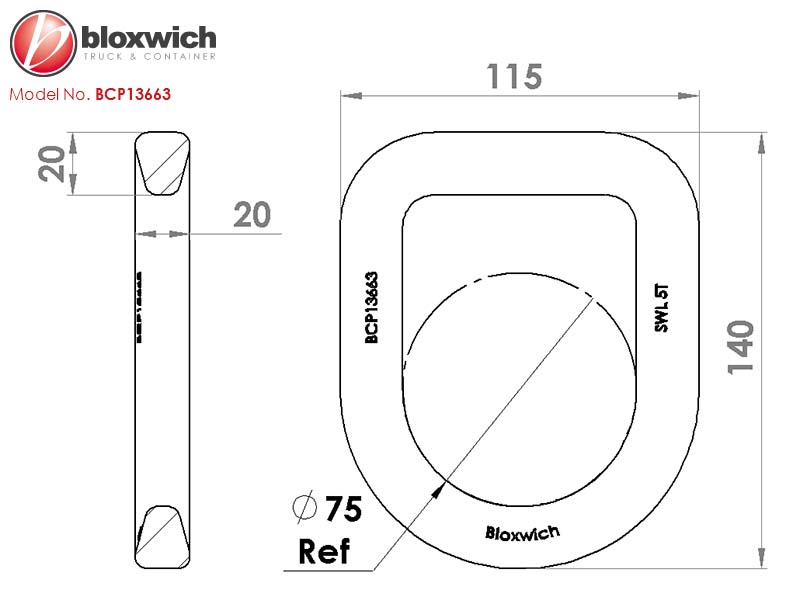

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
