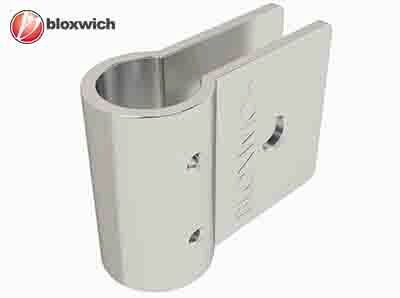

Bloxwich Standard Pat Design: Mild Steel Handle Hub Adjustable

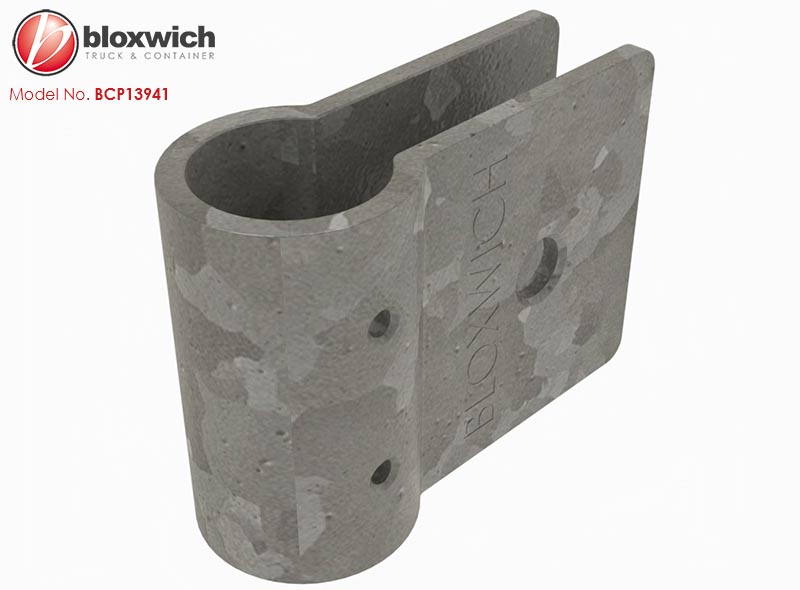

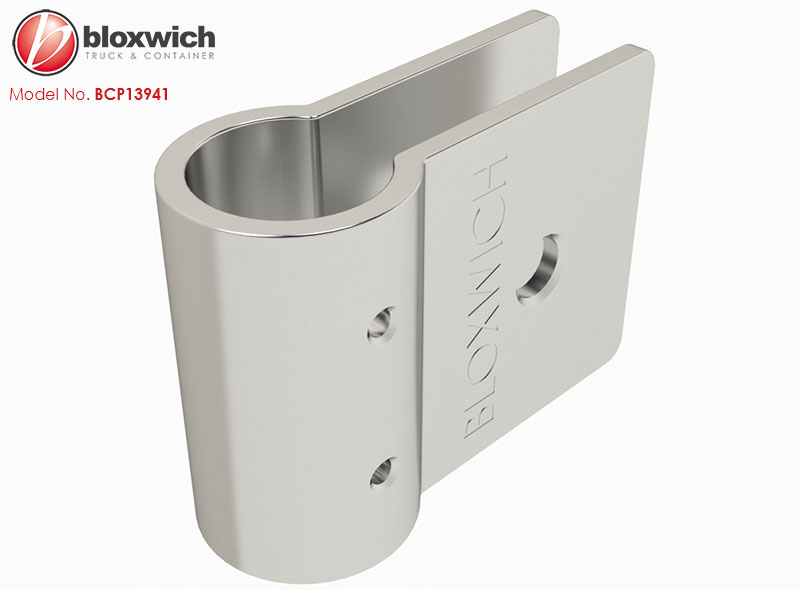

Supplied in: Zinc plated or galvanised

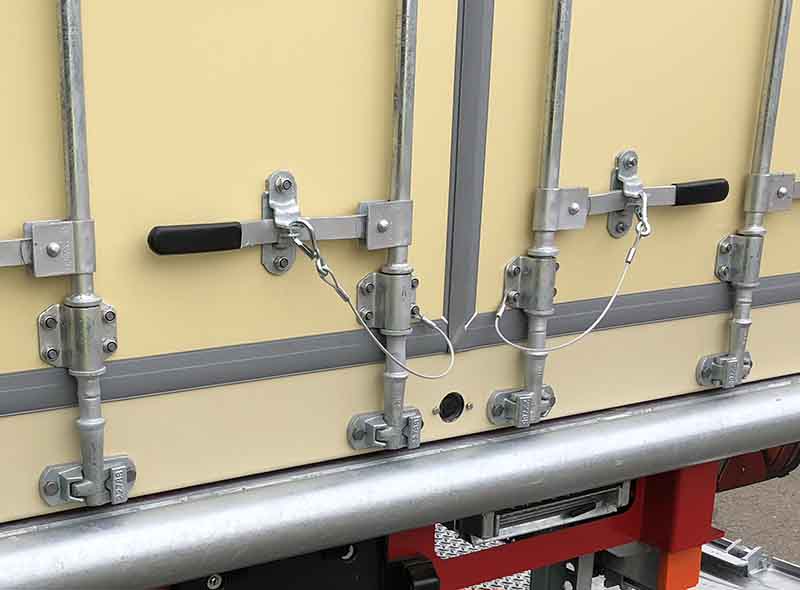

Use: With Bloxwich Ø27mm variable height door gear (all use either the forged handle 22182M, pressed handle BCP12400, pressed handle long BCP12401 or D grip handle BCP13773).
Can also be used with Ø27mm non variheight door gear as it allows customers to set the "hub angle" and "handle height" themselves. Can be fixed in place using the BCSP13955M spirol pins or welded to the tube.
Weight: 340 g Commodity Code 830249 GTIN 5060345314052

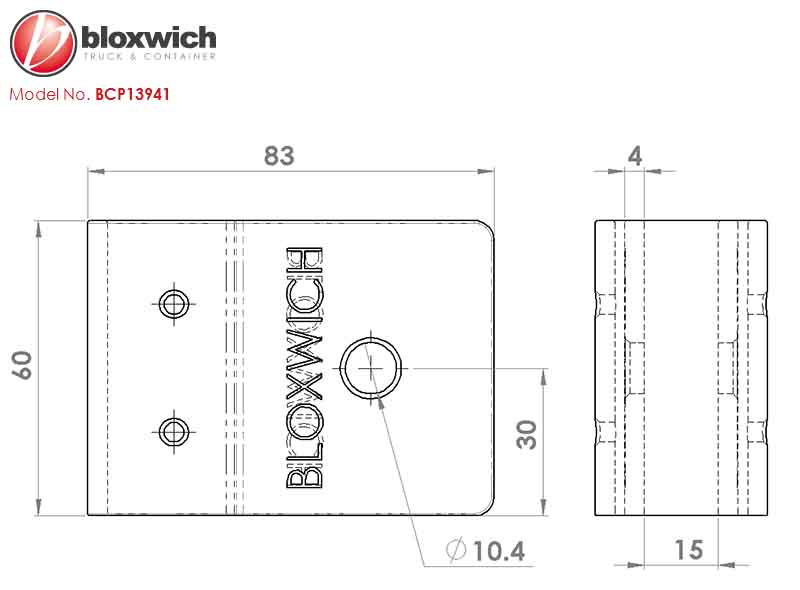

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
