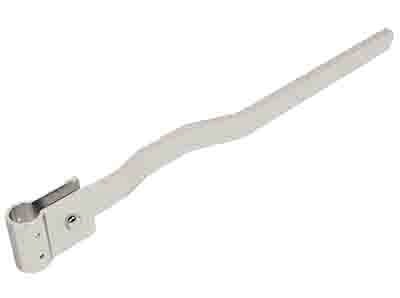

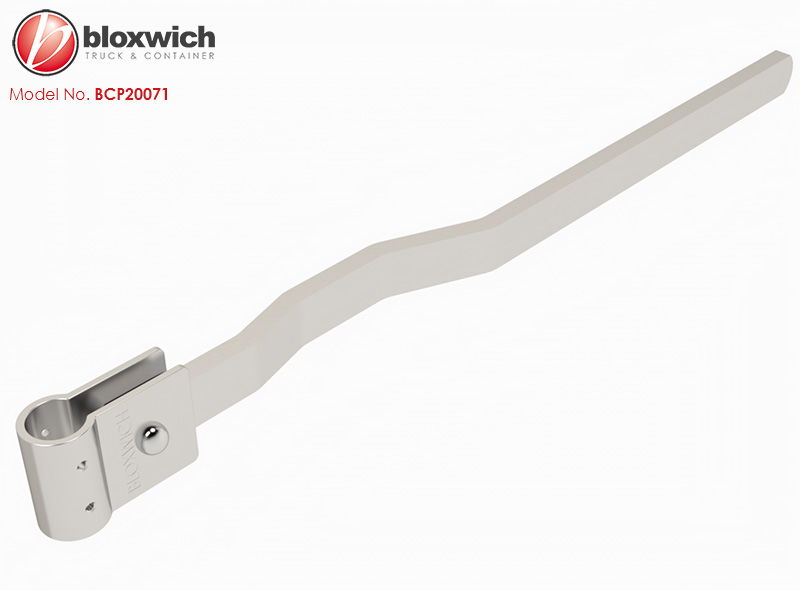

Bloxwich Standard Pat Design: Mild Steel Pressed Handle Long & Hub Assembly
Supplied in: Zinc plated or galvanised
Use: With Bloxwich variheight door gear (to join the upper and lower rod assemblies, (fixed handle height)) or with standard Ø27mm door gear to position the handle at any height without welding. With greater leverage the "Easy Open" handle makes opening doors much easier. The rivet is formed by Bloxwich during production so this assembly cannot be taken apart, however the individual parts can be bought separately if required.
Weight: 2.0 kg Commodity Code 830249 GTIN 5060345317930

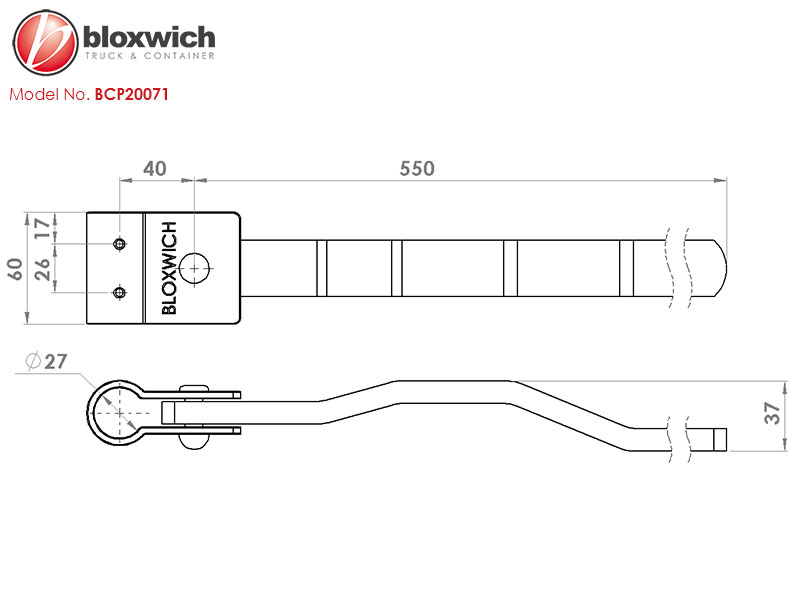

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
