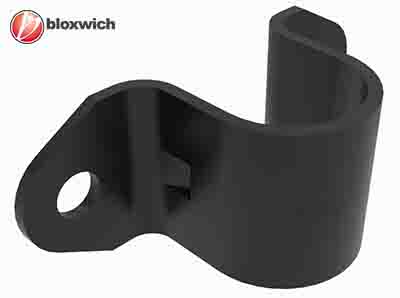

BCP14064-HD Bearing Bracket (Outer Small) for B2000 Door Gear

Bloxwich Standard Pat Design: Bearing Bracket (Outer Small) for B2000MN Door Gear

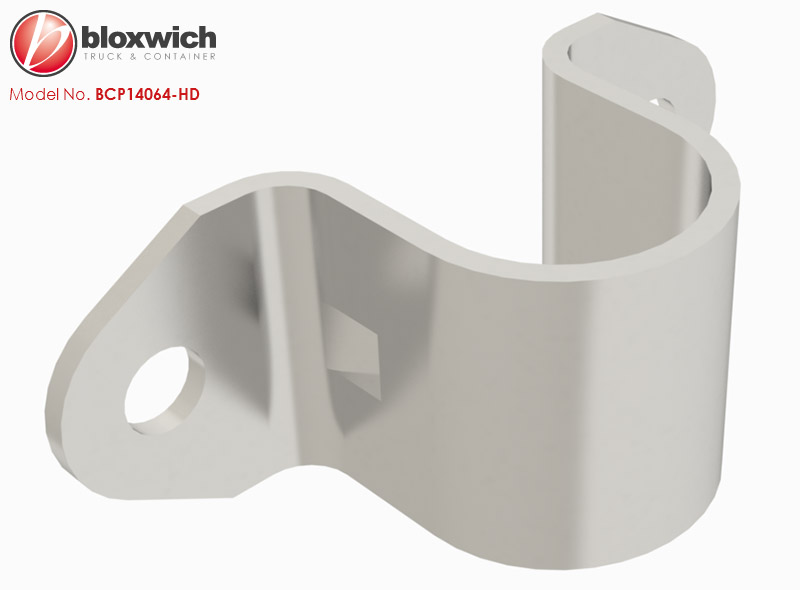

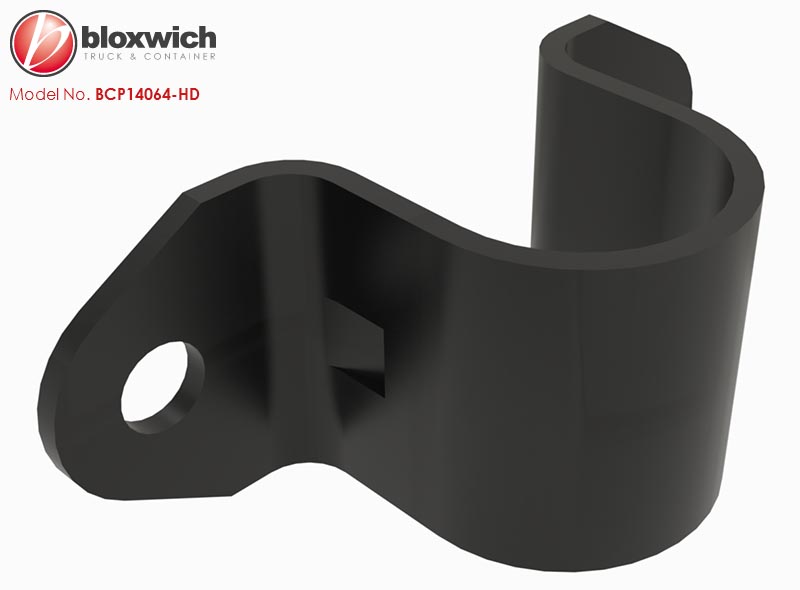

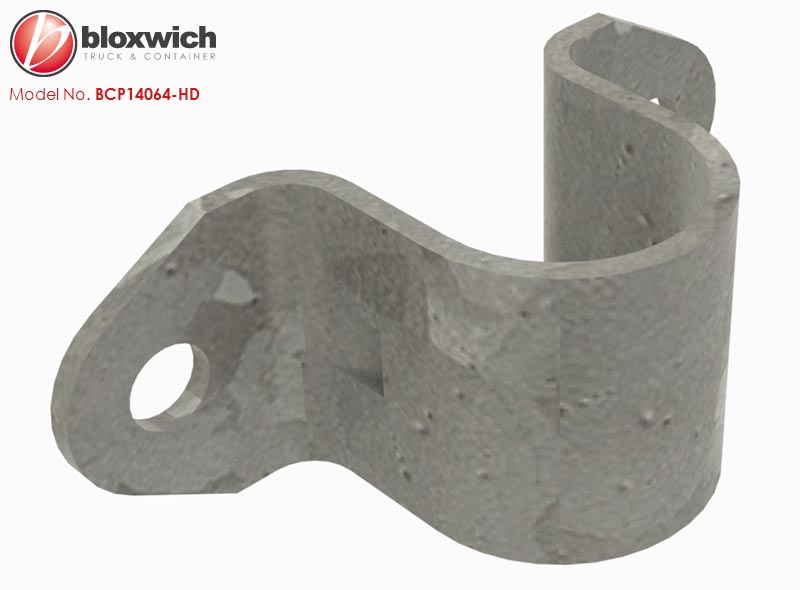

Supplied in: Self colour, zinc plated or galvanised

Use: With B2000MN series door gear

Weight: 120 g  Commodity Code 830249  GTIN 5060345311501

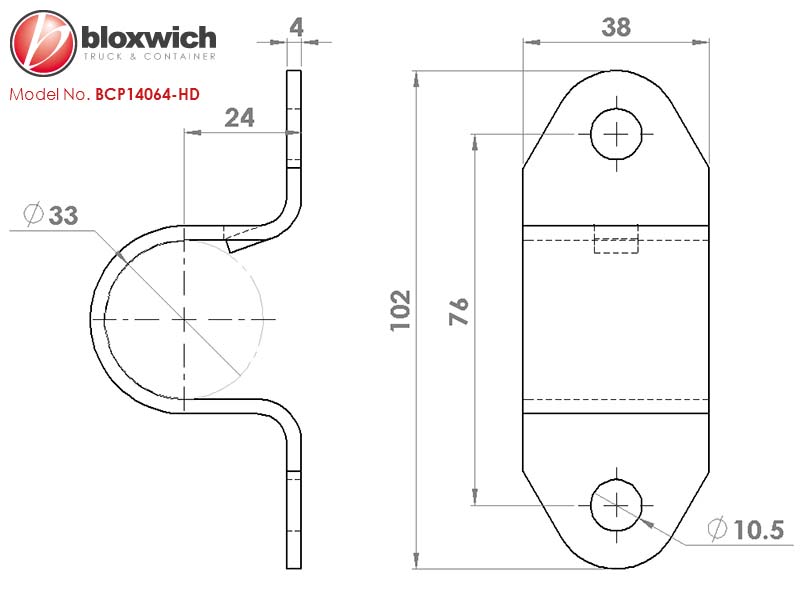

Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
