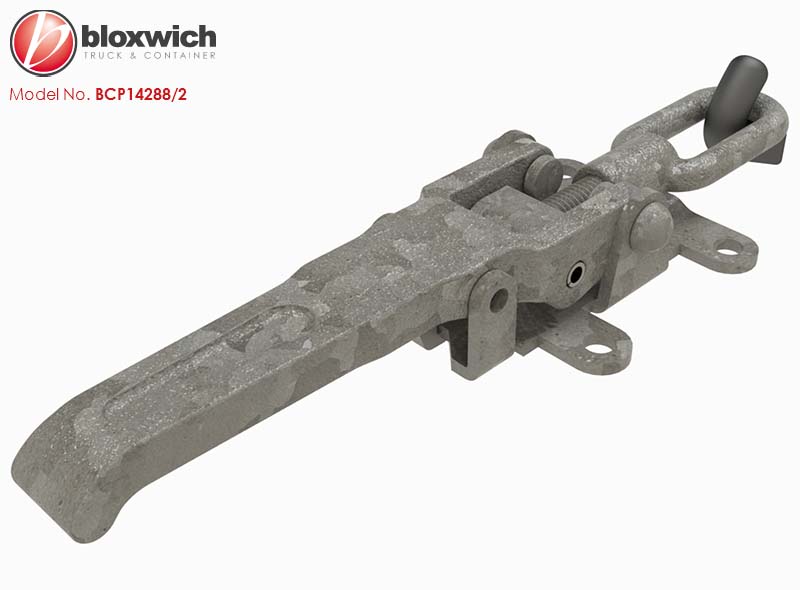

Bloxwich Standard Product: SWL2.5 tonnes* Eccentric Over-Centre Latch Bolt-On & Catch
Supplied in: Mild steel galvanised latch and self colour catch

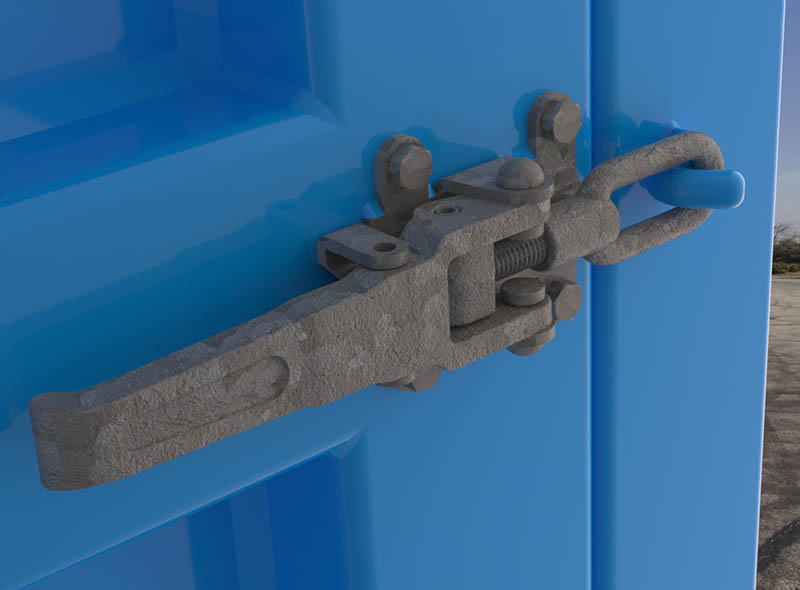

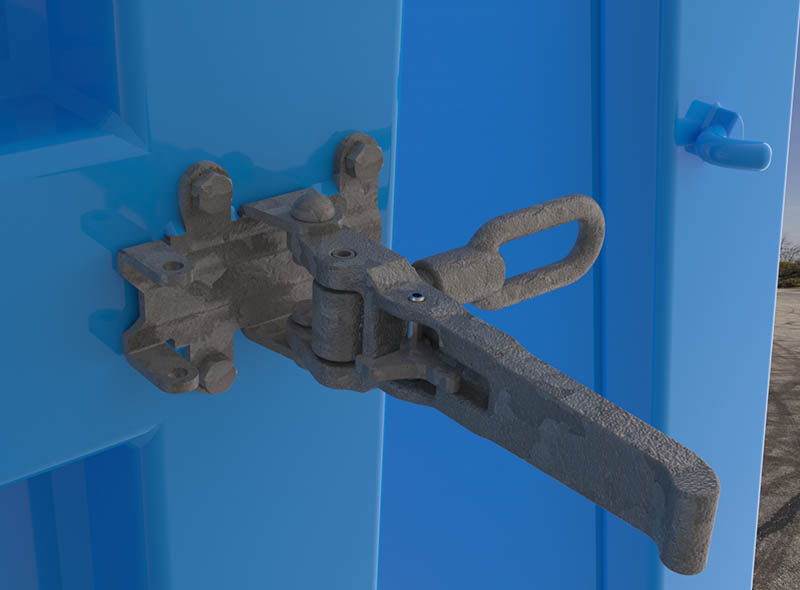

Use: High strength bolt-on design eccentric over-centre latch and catch (weld on). Adjustable from 245 to 270mm. Finger release safety catch on the handle. Commonly used on tippers & car trailers but other applications include lids, doors & hatches etc on containers
Weight: 1.0 kg Commodity No 830249 GTIN 5060345312447
The load bearing capabilities of the fixings to the vehicle must be established by the body builder in accordance with ISO27956 2009.
Click

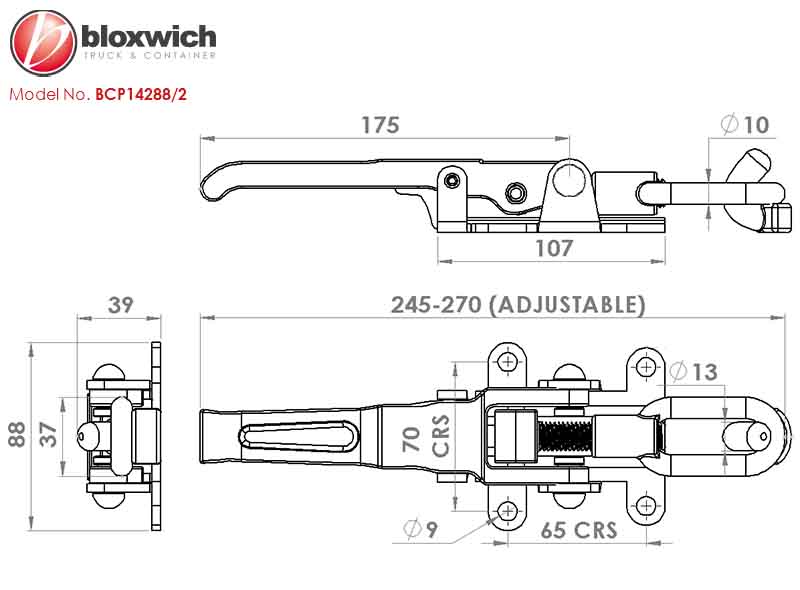

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
