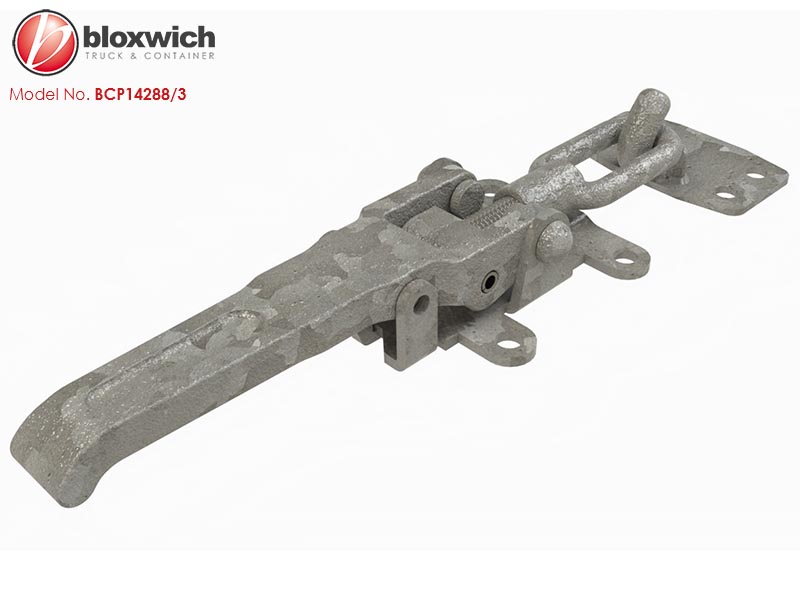

Bloxwich Standard Product: SWL2.5 tonnes* Eccentric Over Centre Latch & Catch Bolt-On (side mount)
Supplied in: Mild steel galvanised

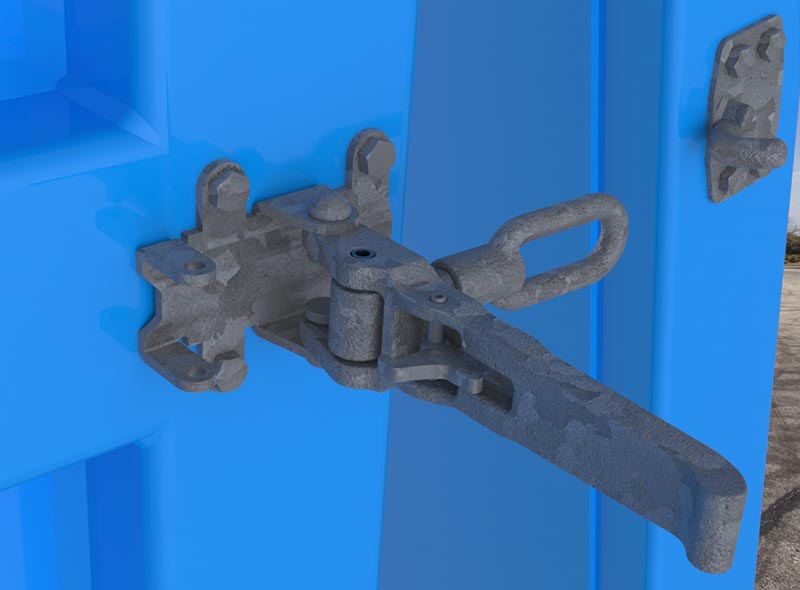

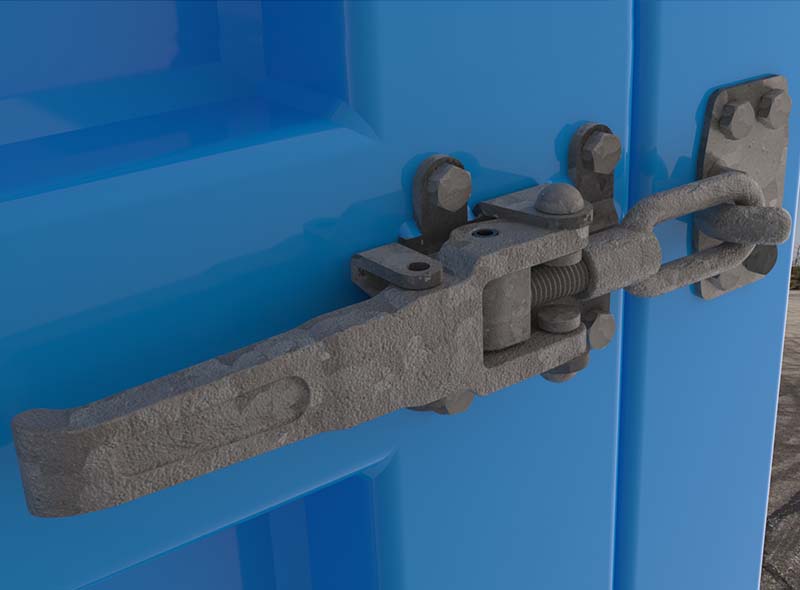

Use: High strength bolt-on design eccentric over-centre latch and catch. Adjustable from 245 to 270mm. Finger release safety catch on the handle. Commonly used on tippers & car trailers but other applications include lids, doors & hatches etc on containers
Weight: 1.2 kg Commodity No 830249 GTIN 5060345316452
The load bearing capabilities of the fixings to the vehicle must be established by the body builder in accordance with ISO27956 2009.

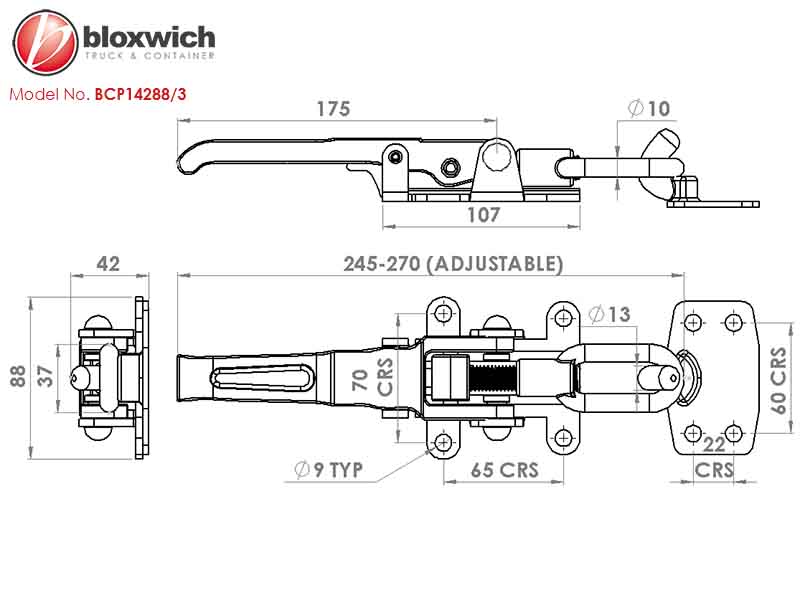

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
