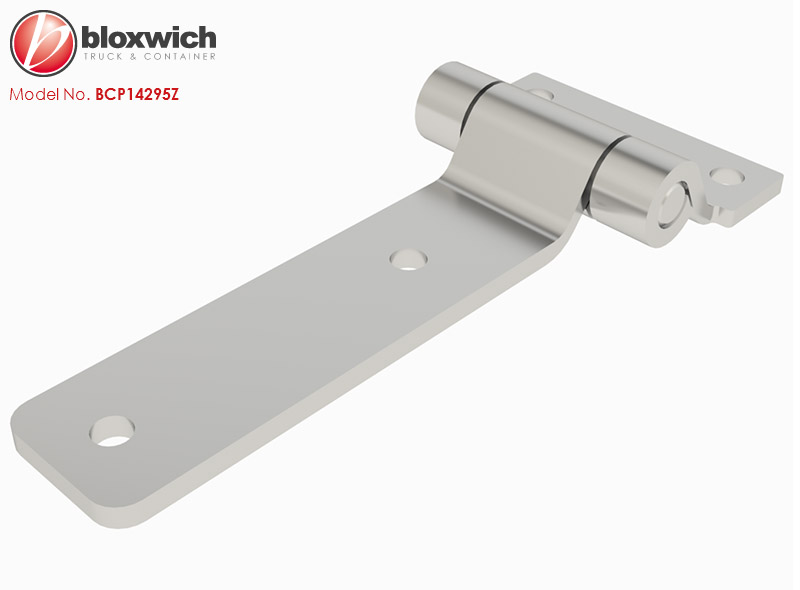

BCP14295Z Mild Steel Hinge Assembly 107mm Zinc Plated

Bloxwich Standard Patent Design: Mild Steel Hinge Assembly 107mm Zinc Plated

Supplied in: Mild steel zinc plated

Use: Bolt on general purpose hinge assembly with Ø6.4 fixing holes

Weight: 195 g   Commodity Code 830210  GTIN 5060345311358

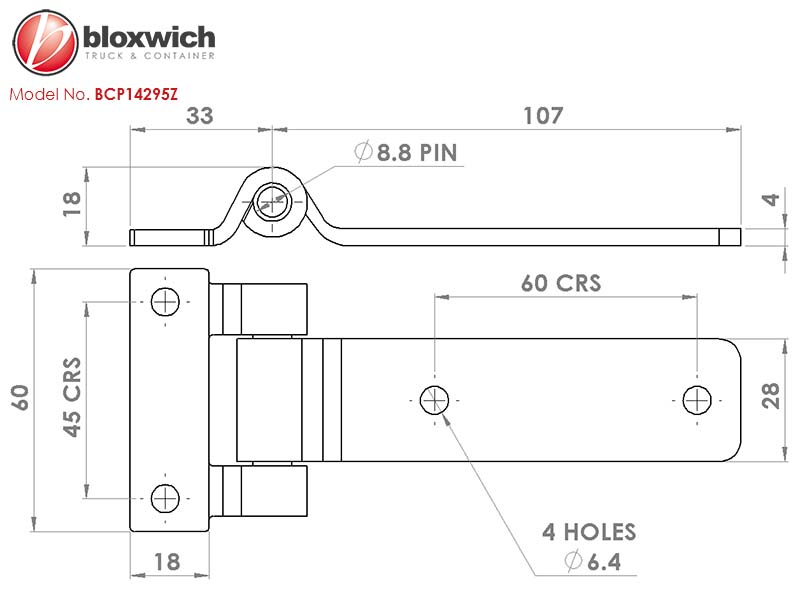

Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
