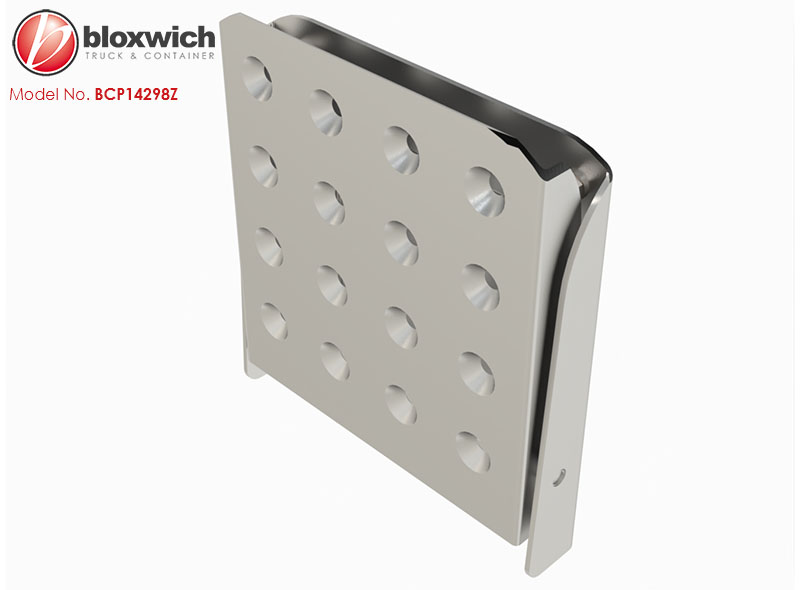

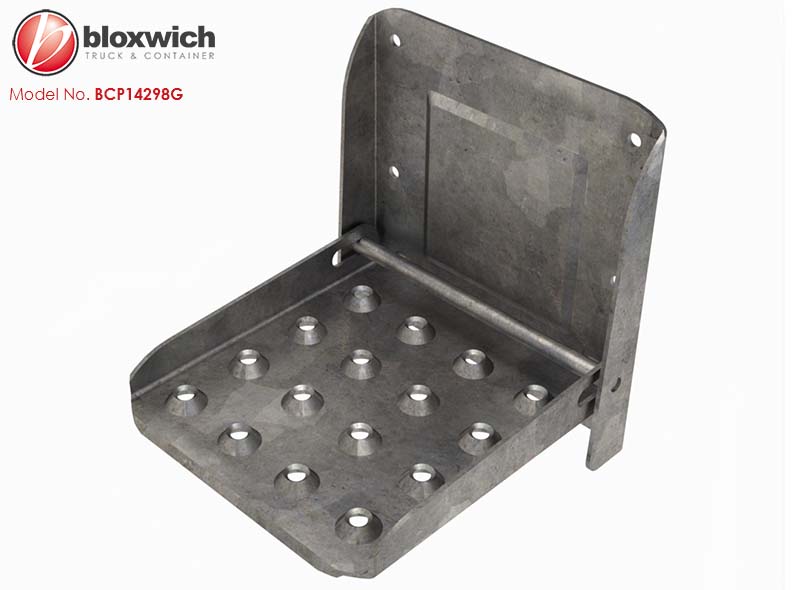

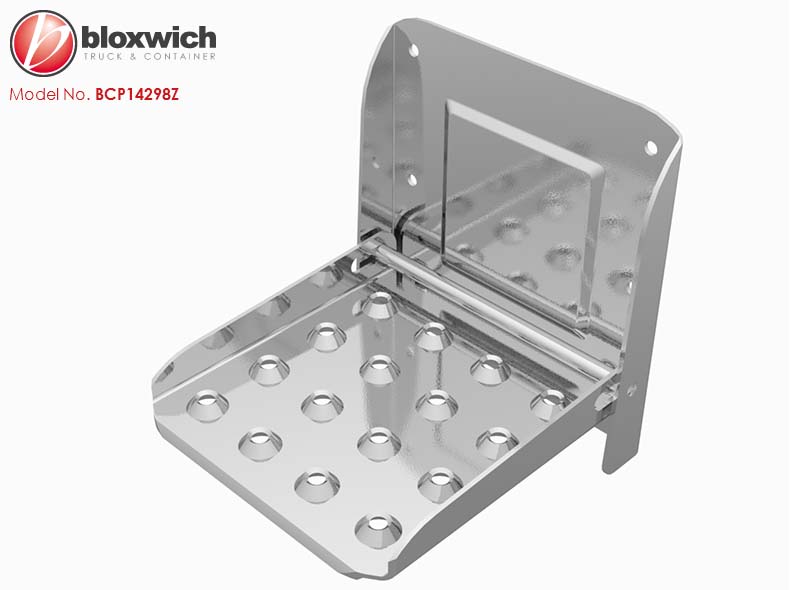

Bloxwich Standard Pat Design: Folding Step

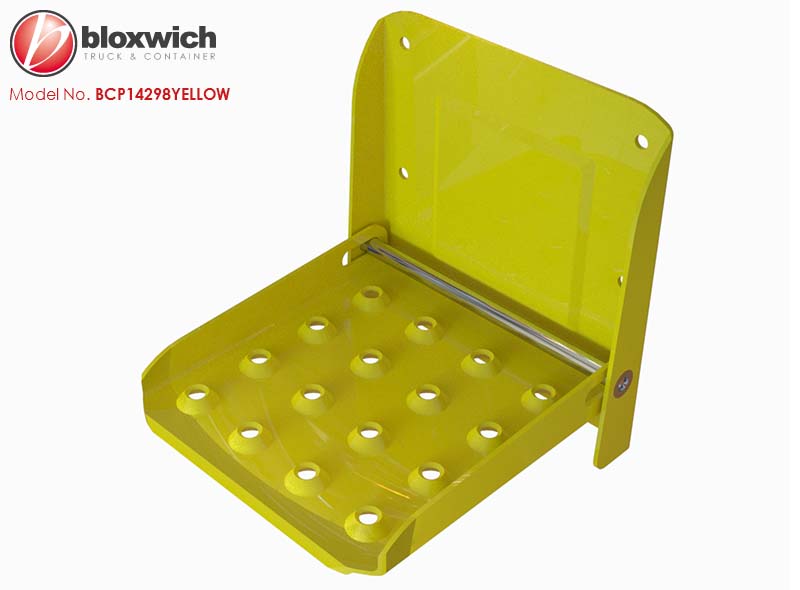

Supplied in: Mild steel zinc plated, galvanised or powder coated (yellow) with A2 stainless steel fixing kits (if selected)

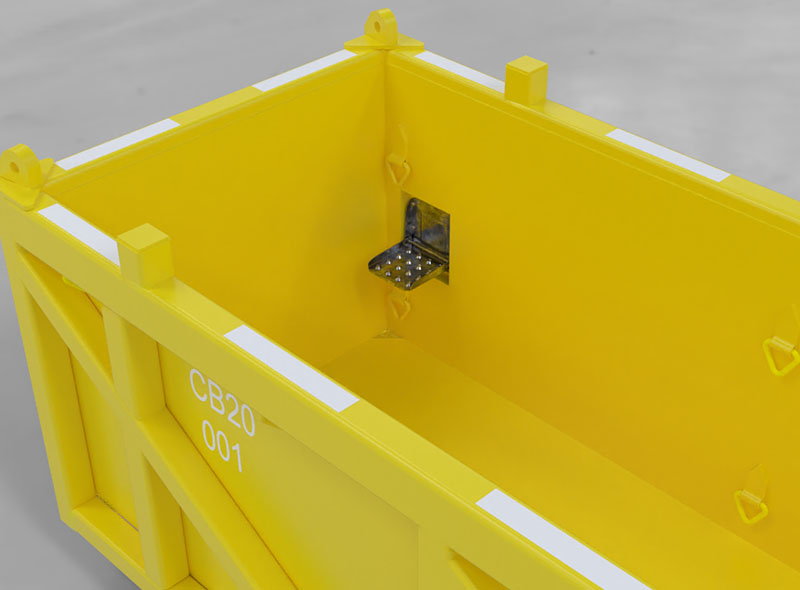

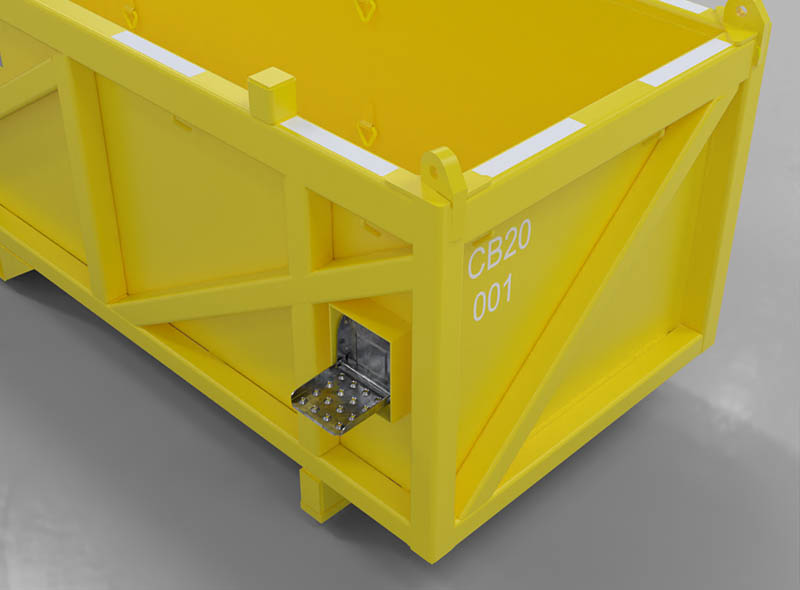

Use: Bolt-on design, pin lift lock type folding step with punched and raised hole tread pattern for extra grip. Suitable for various types of commercial vehicles. Commonly fitted upsides down on the inside of folding sides for climbing onto the load deck when the sides are down. Can also be used as a general purpose bolt on step for non-vehicular applications e.g. steps on the inside and or outside of offshore cargo baskets and half height containers. Maximum load 150kg*.
Weight: 1.5kg Commodity Code 830249 GTIN 5060345310641
Contains 6 M6 x 20 set screws (BCSP19061), 12 flat washers (BCSP19063), 6 spring washers (BCSP19064) & 6 nuts (BCSP19065)
Contains 6 M6 x 25 set screws (BCSP19062), 12 flat washers (BCSP19063), 6 spring washers (BCSP19064) & 6 nuts (BCSP19065)
Contains 6 M6 x 20 set screws (BCSP19061), 12 flat washers (BCSP19063) & 6 nyloc nuts (BCSP19066)
Contains 6 M6 x 25 set screws (BCSP19062), 12 flat washers (BCSP19063) & 6 nyloc nuts (BCSP19066)
All are A2 stainless steel
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.
Click

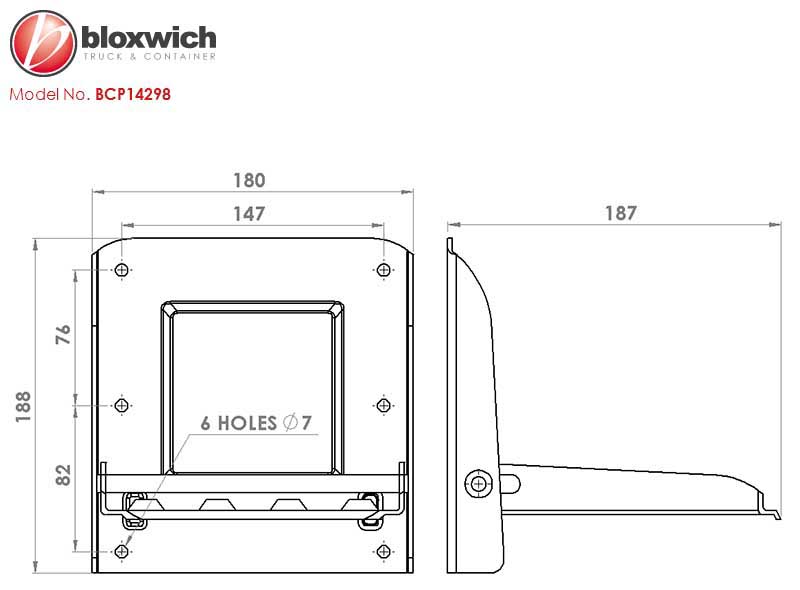

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
