BCP14308 Bearing Bracket (Outer Large) for B2588 Door Gear

Bloxwich Standard Design: Bearing Bracket (Outer Large) for B2588 Door Gear

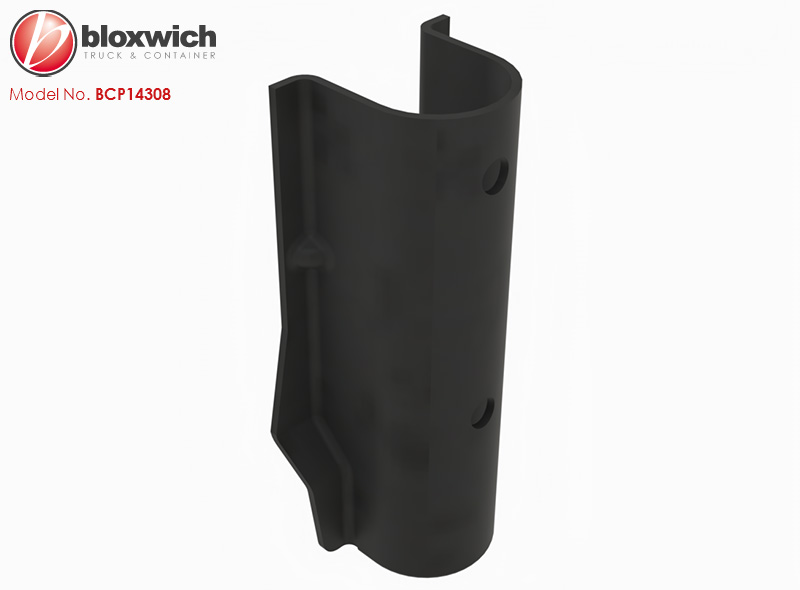

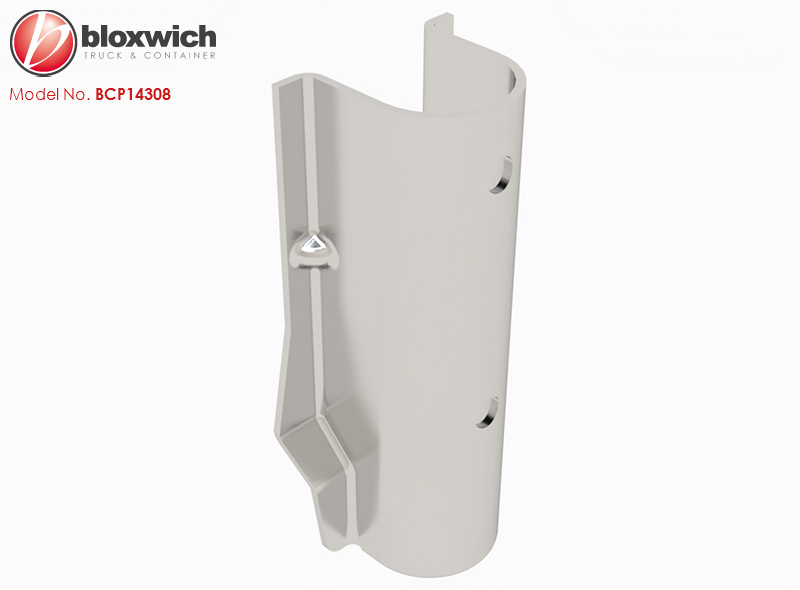

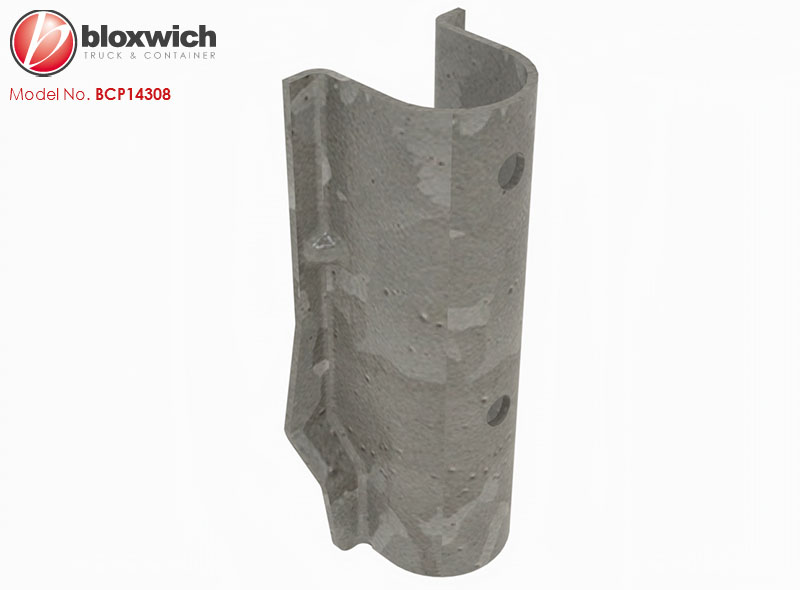

Supplied in: Self colour, zinc plated or galvanised

Use: Weld on bracket for use on BS2588 Ø34mm steel door gear along with bush BCP13596

Weight 390 g  Commodity Code 830249  GTIN 5060345311181

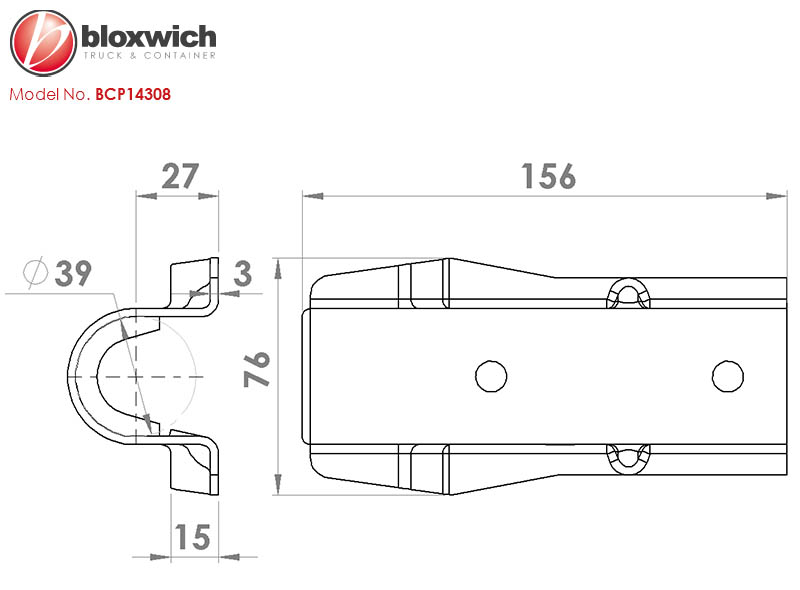

Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
