BCP14338 Mild Steel Door Handle Retainer Cropped

Bloxwich Standard Pat Design: Mild Steel Door Handle Retainer Cropped

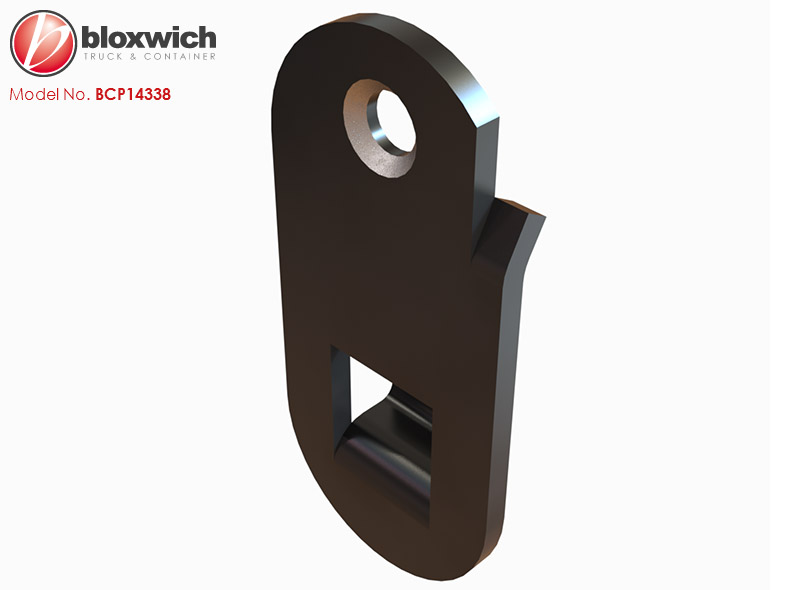

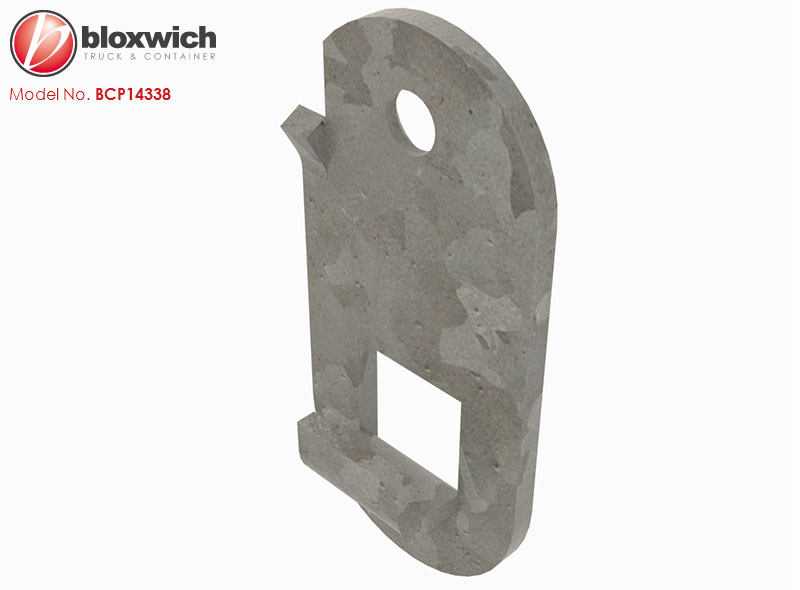

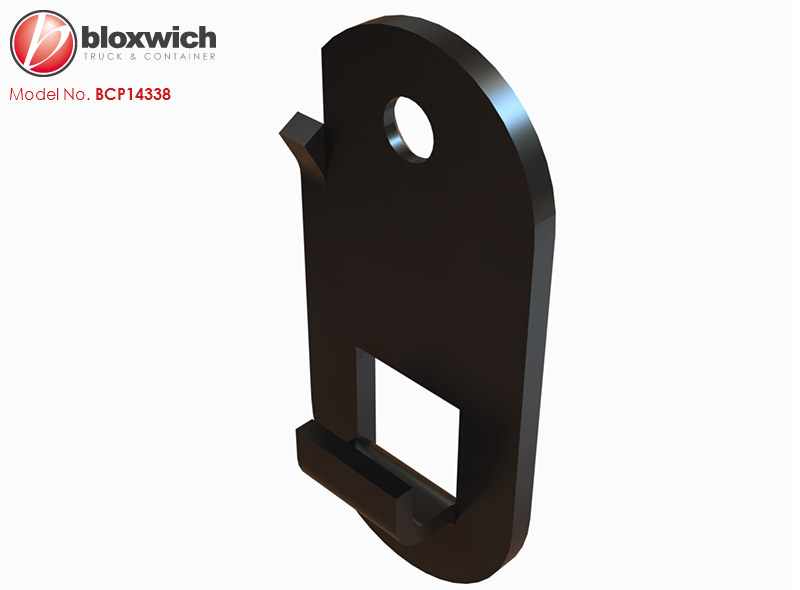

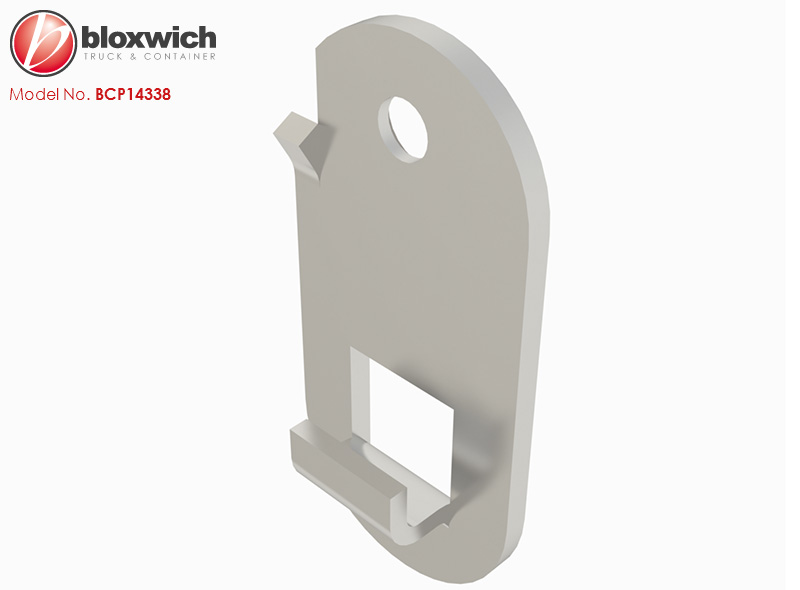

Supplied in: Self colour, zinc plated or galvanised

Use: Weld on door handle retainer for securing the 22182M forged handle in the closed position. Chamfer allows the rivet to be flush with the back, weld on designs can be useful when structural members sit behind the door handle meaning the use of the usual M10 fasteners is not possible

Weight: 175 g  Commodity Code 830249   GTIN 5060345311457

Use with BCP13856 catch, 22185Z bush and the BCP10038/2 rivet

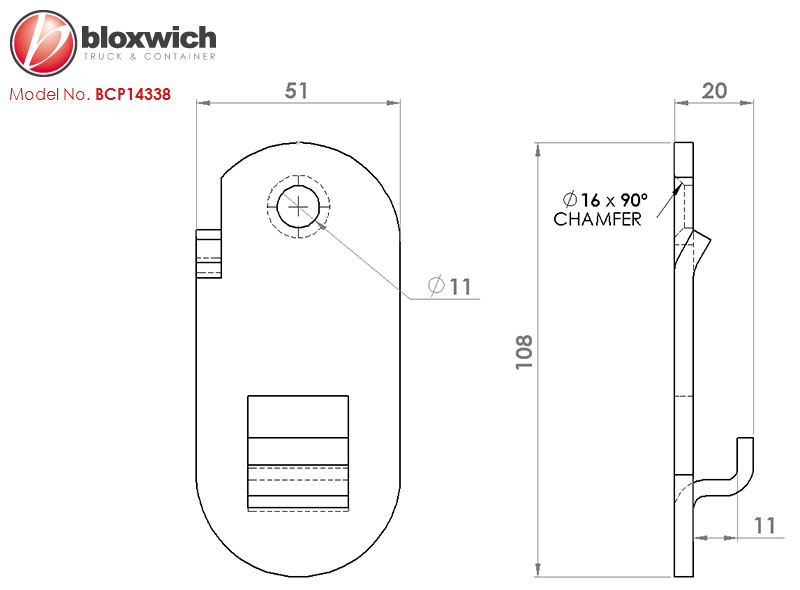

Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
