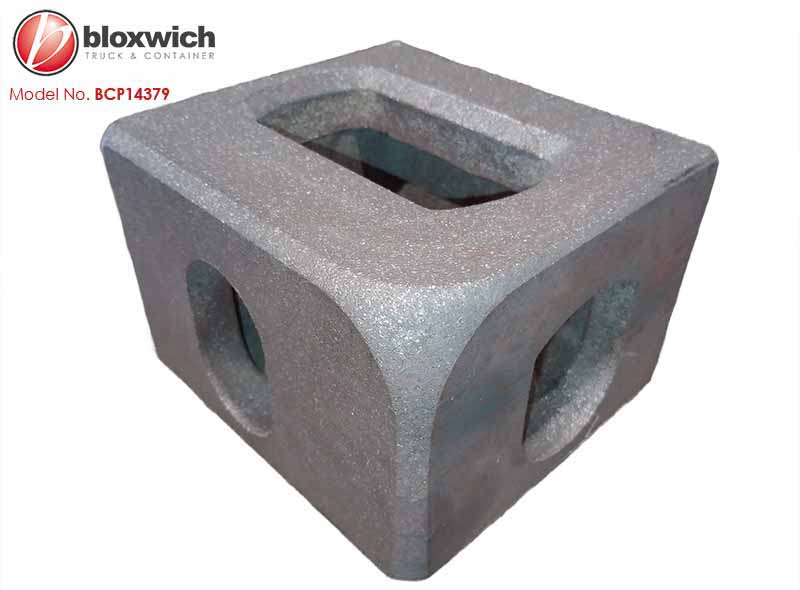

Bloxwich Standard Product: ISO Corner Casting Bottom Left
Supplied in: Cast steel, self colour

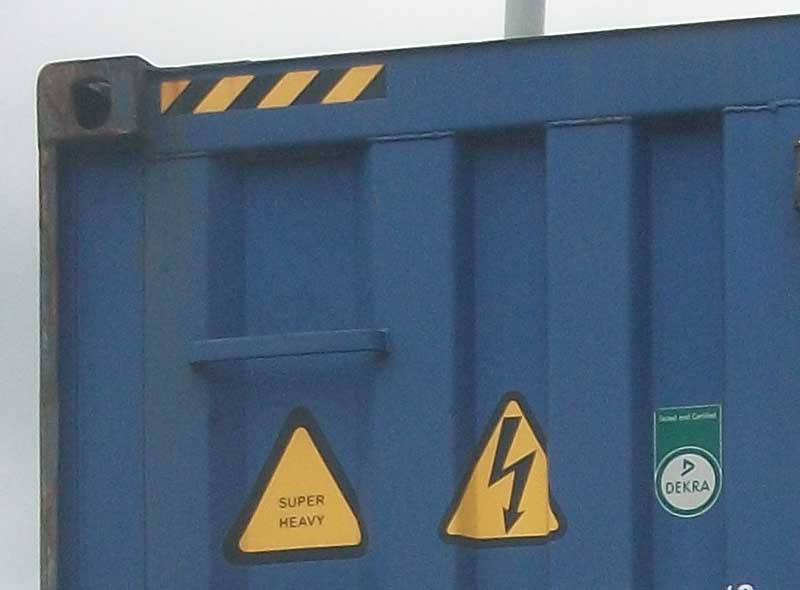

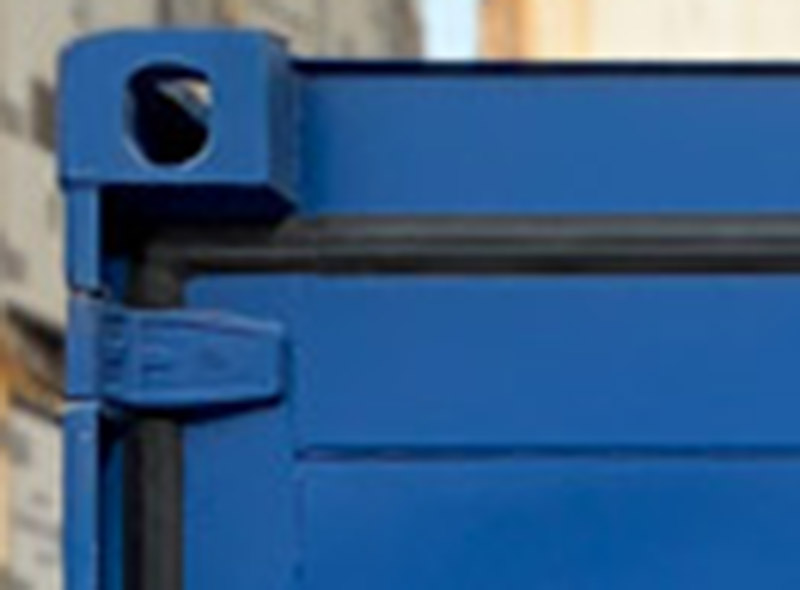

Use: On ISO dry freight containers, reefers, open tops or tank containers and offshore containers. Conforms to ISO 1161 and also provided with EN10204:2004 3.2 certificate (equivalent to 3.1C in ISO 10474)
Weight: 10.8 kg Commodity Code 830249 GTIN 5060345310559
Bloxwich can send a copy of the certificates, for the batch in question, to the buyer / builder before shipping.
It is important that the buyer / builder gets the certificates pre-approved by their end certifier, before welding to any structures, as it is the users responsibility to demonstrate to DNV-GL, Lloyds Register, ABS or Bureau Veritas etc. (the certifier) that the ISO corner castings comply with the customer's order.
Note some certifiers are fixed on a certain type of certificate. The user should check the ISO standards to ensure a full understanding.
Click to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
