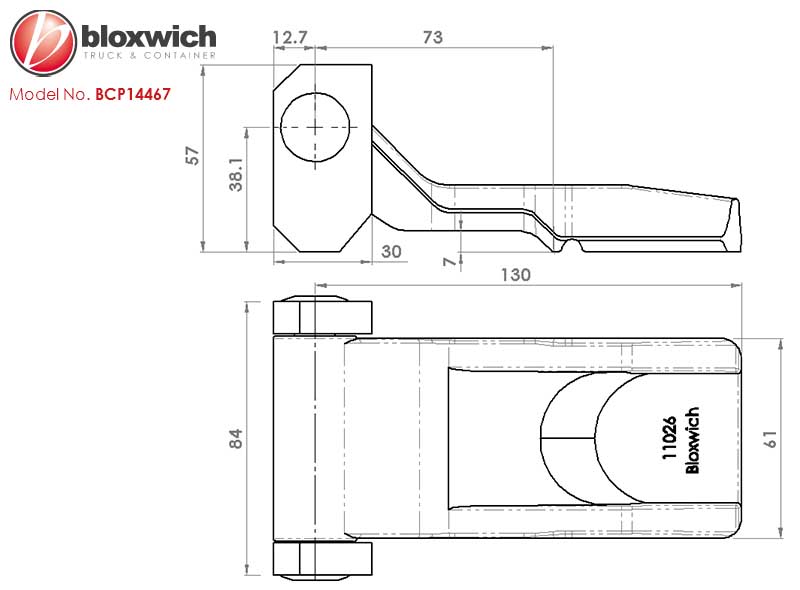

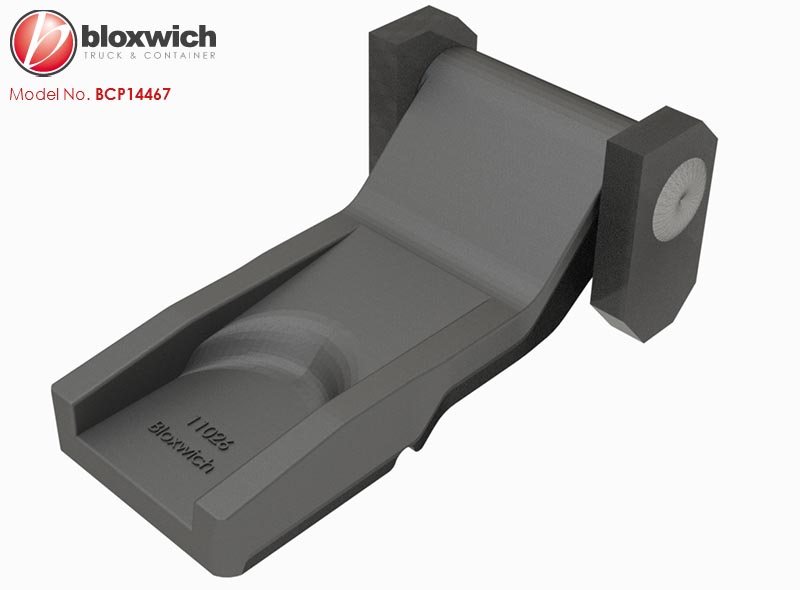

Bloxwich Standard Patent Design: Forged Steel Door Hinge Assembly 130mm
Supplied in: Self colour or zinc plated hinge with self colour hinge butts and stainless steel pin
Use: For containers etc, parts supplied assembled ready to weld in place. Weld-on design, bushed to suit Ø12.7mm hinge pin or 1/2" bolt. Hinge pin fully welded to the hinge butts
Weight: 1.3 kg Commodity No 830210 GTIN 5060345313178

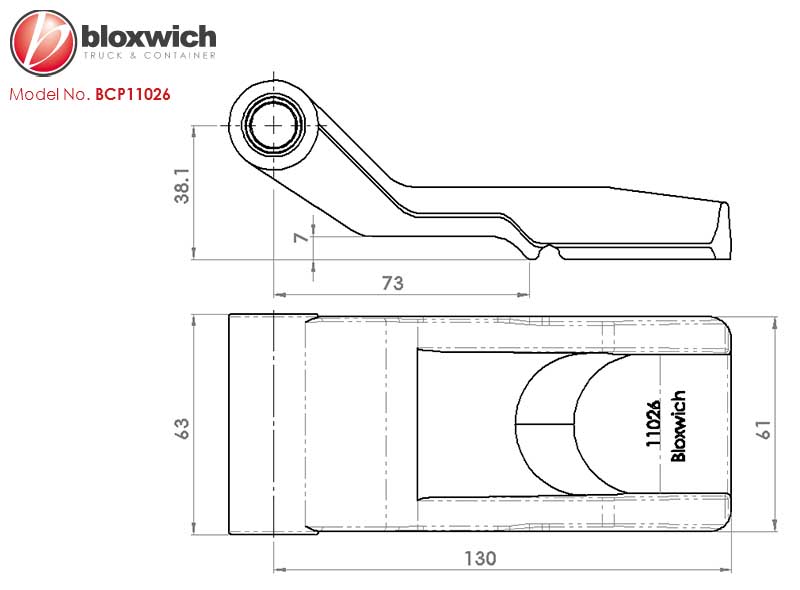

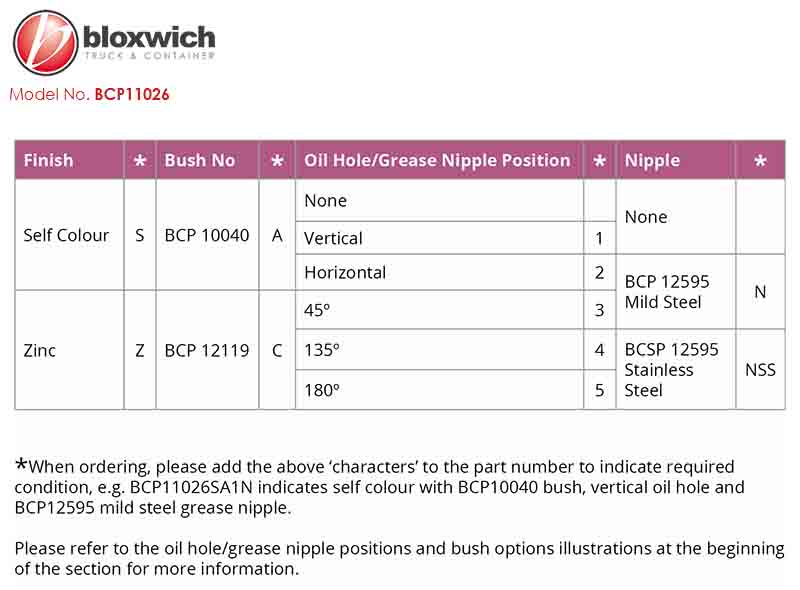

Hinge: BCP11026 Butts: BCP11354 Pin: BCSP-24001/82. Usual hinge options apply see BCP11026 for details
