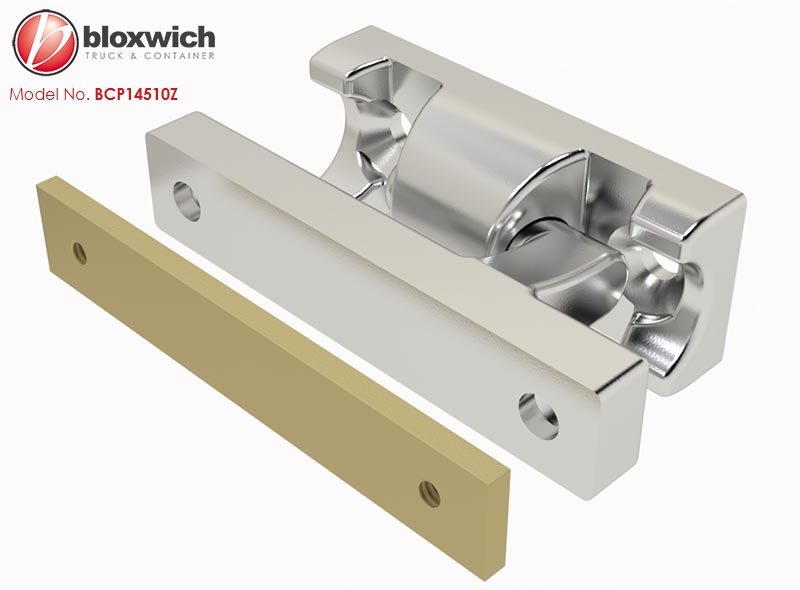

Bloxwich Standard Product: BCP14510Z Tailboard Hinge Set
Supplied in: Forged steel hinge parts and mild steel back plate, all with zinc plated finish

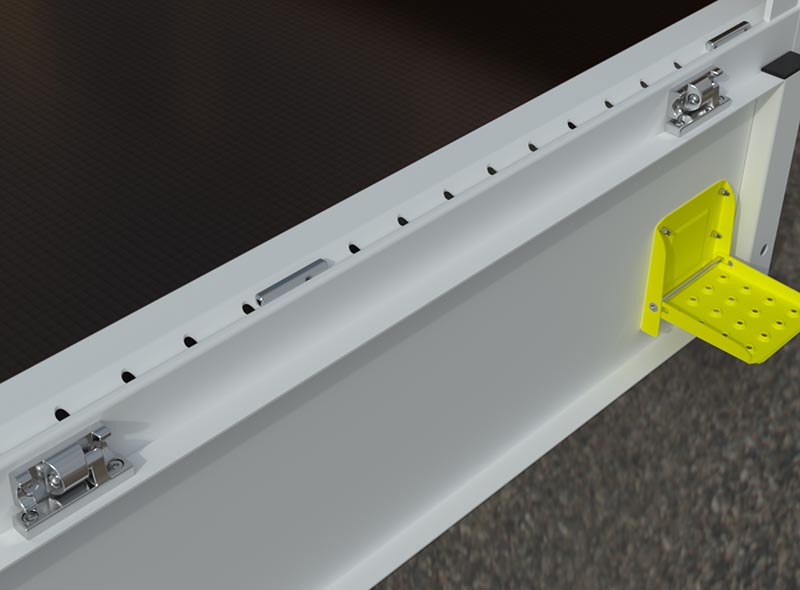

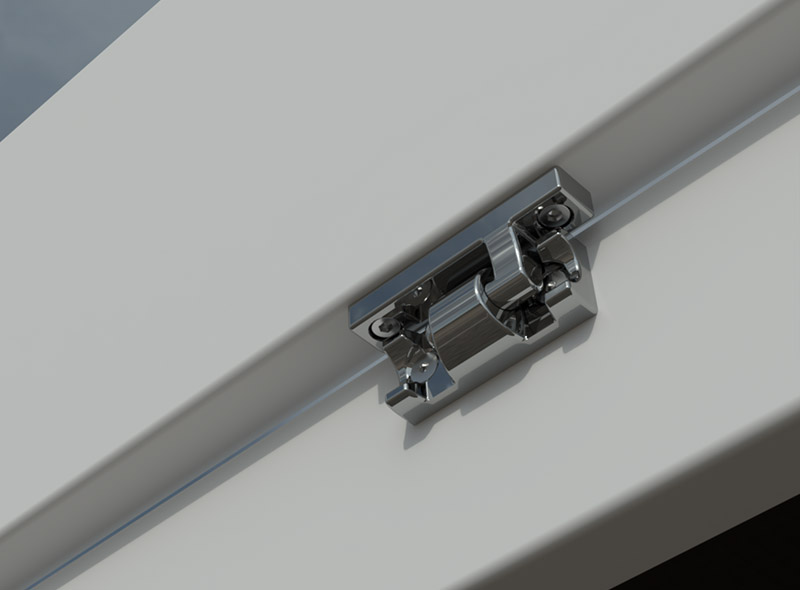

Use: Bolt on heavy duty (Ø15mm pin) hinge set for vehicle side and tailboards. Design prevents accidental unhinging. Fasteners not supplied
Weight: 900 g Commodity No GTIN 5060345316759
Click

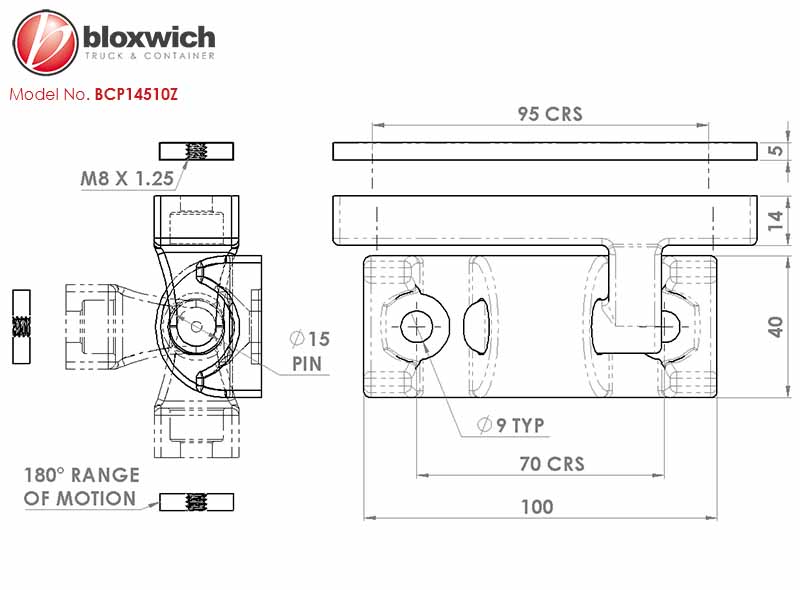

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
