Bloxwich Standard Pat Design: SWL 250kg* 60° Rope Hook
Supplied in: Mild steel, self colour
Use: General purpose weld on rope hook for securing tarpaulins or nets over cargo/contents on skips, trailers and offshore cargo baskets etc. The flat makes fitting easy, just hold in place, tack and then fully weld, no square or magnet required.
Weight: 130 g Commodity Code 830249 GTIN 5060345310764
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.

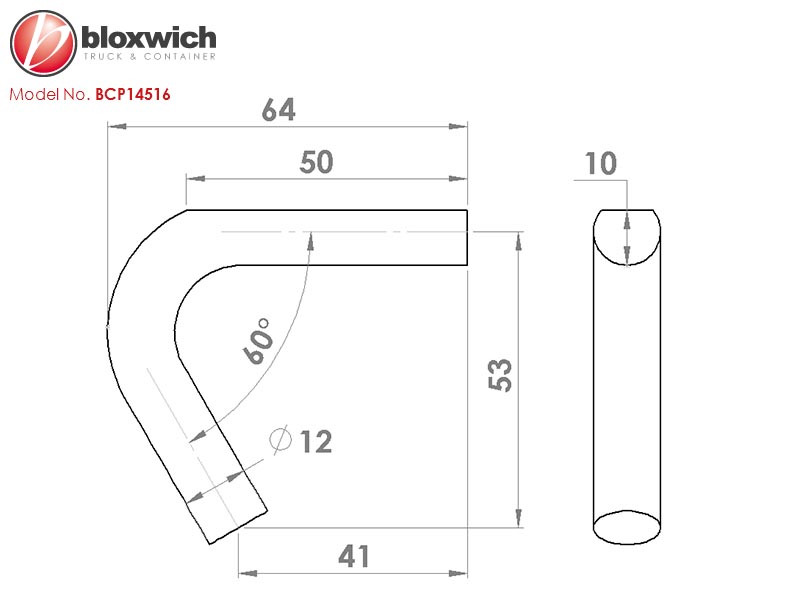

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
