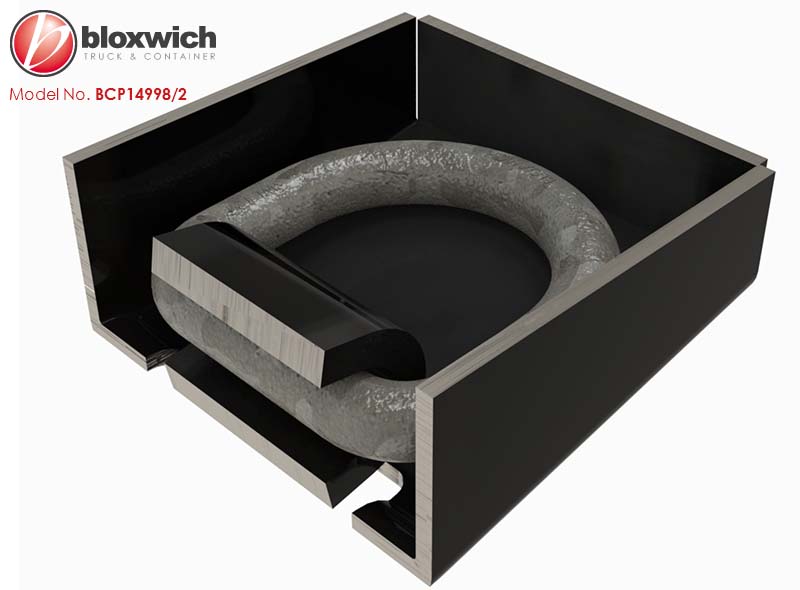

Bloxwich Standard Patent Design: SWL 12T* Lashing Ring & Housing
Supplied in: Mild steel, galvanised lashing ring with self colour bridge cleat and housing
Use: Provides sub floor lashing ring and housing. Can be used with wooden or steel floors. Cleat is welded to side rails for structural strength which also eliminates floor sheet distortion in service.
Weight: 2.3 kg Commodity No 830249 GTIN 5060345314038
Developed in 2012 this lashing ring housing doesn't require any stiffeners and wont bend the floor in use as the cleat is fully welded to the units structural members
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.
Click

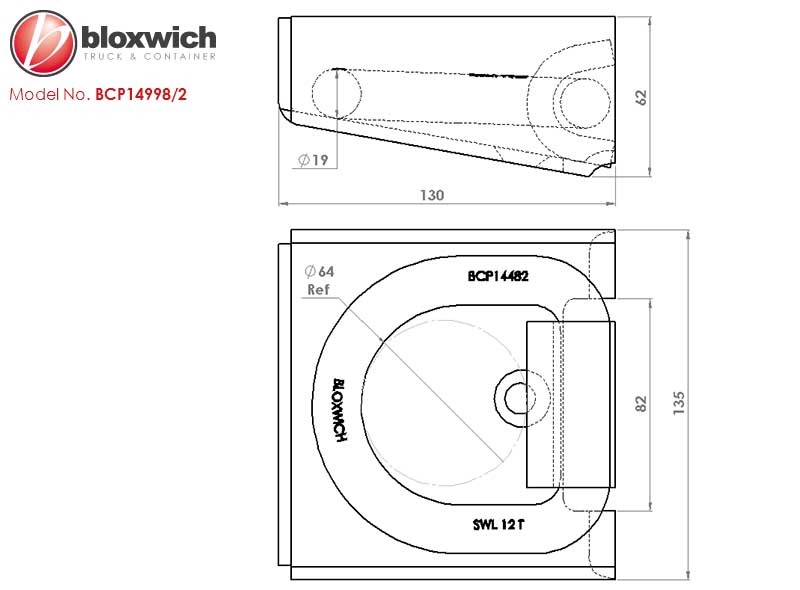

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
