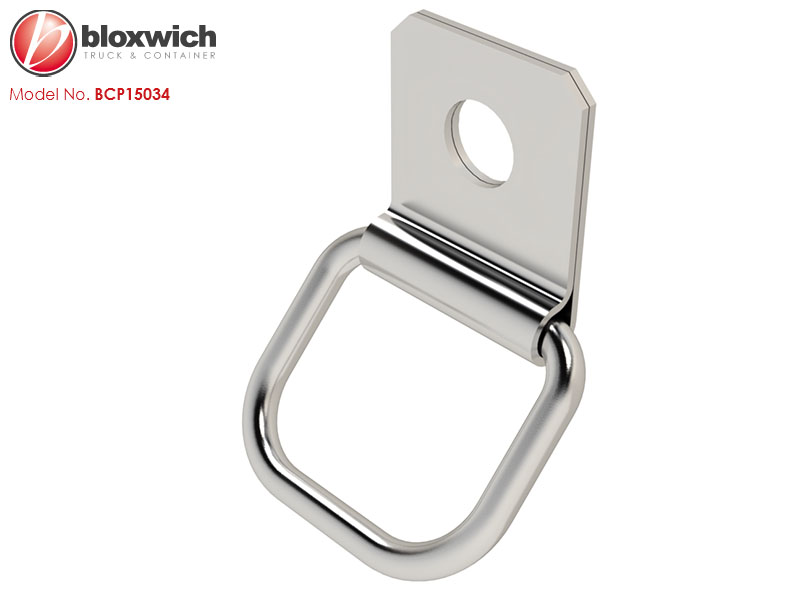

Bloxwich Standard Patent Design: SWL 200kg* Wire Rope Ring Bolt-On
Supplied in: Mild steel zinc plated

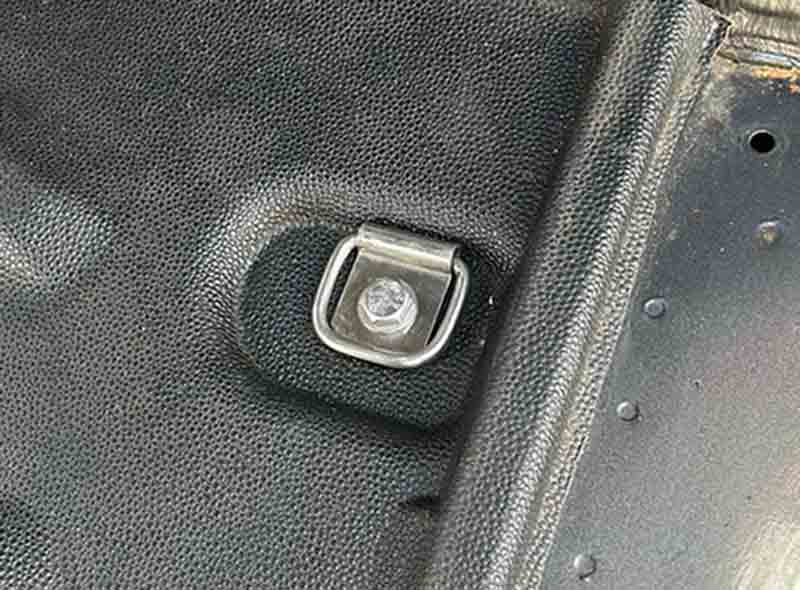

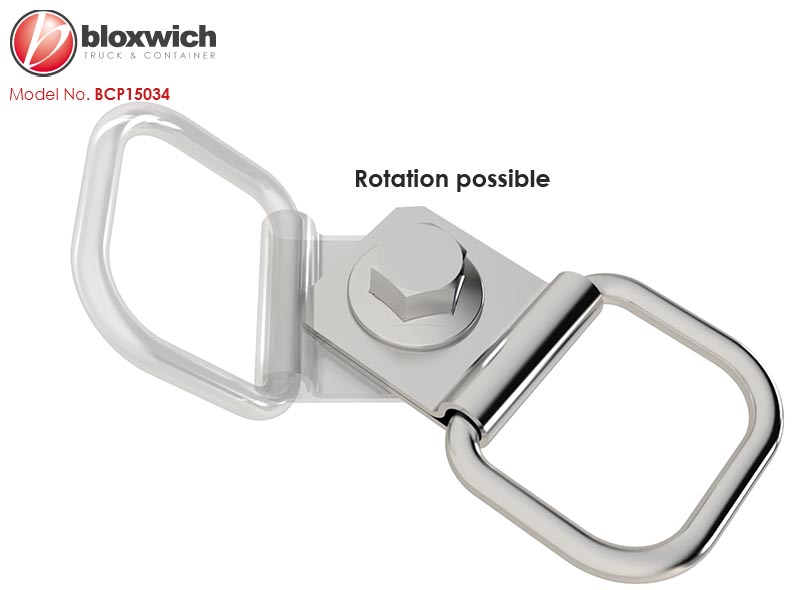

Use: Bolt-on rope ring. Note - bolt not provided. Rotation possible if required with either a M12 flanged set screw or bolt or by using a 22185 bush and a M10 bolt.
Weight: 80 g Commodity No 830249 GTIN 5060345310184
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.

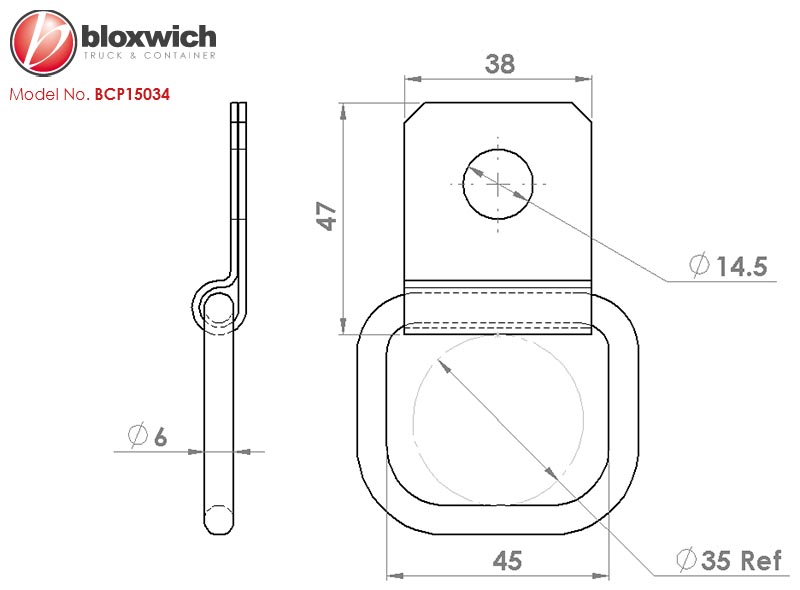

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
