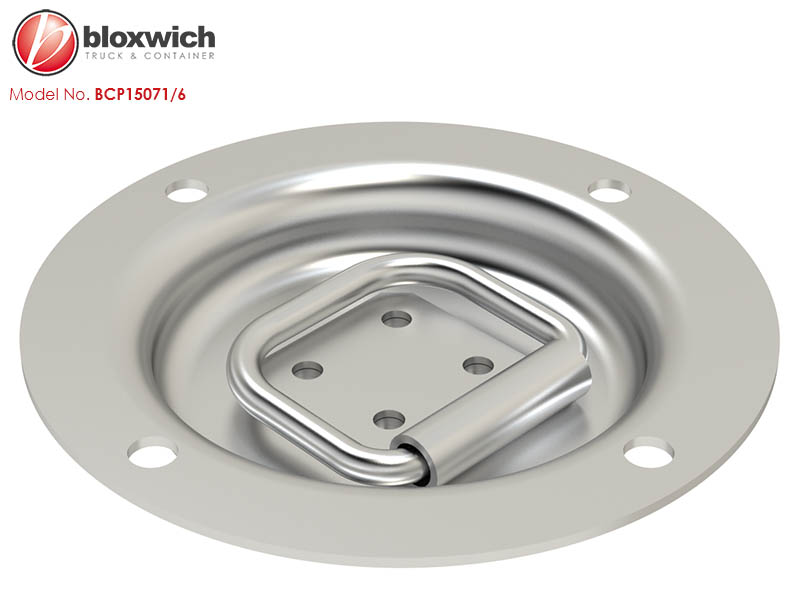

Bloxwich Standard Patent Design: Recessed Lashing Ring Assembly 200kg* SWL
Supplied in: Mild steel zinc plated ring, cleat and housing
Use: Bolt-on recessed lashing ring assembly. Fixing holes shown are examples and parts are supplied undrilled. Other finishes and versions available on request
Weight: 325 g Commodity Code 830249 GTIN 5060345317251
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.
Net Ring Recessed Housing: BCP15071/Z Lashing Ring: BCP15036

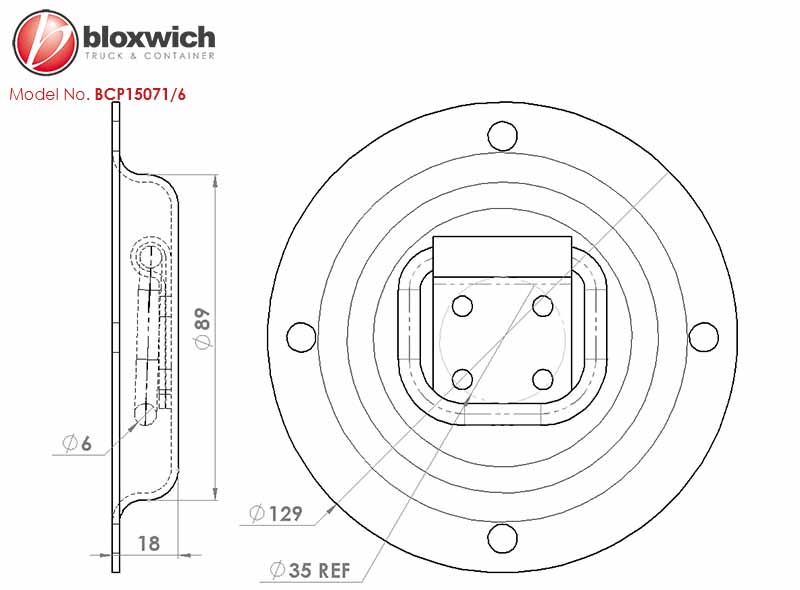

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
