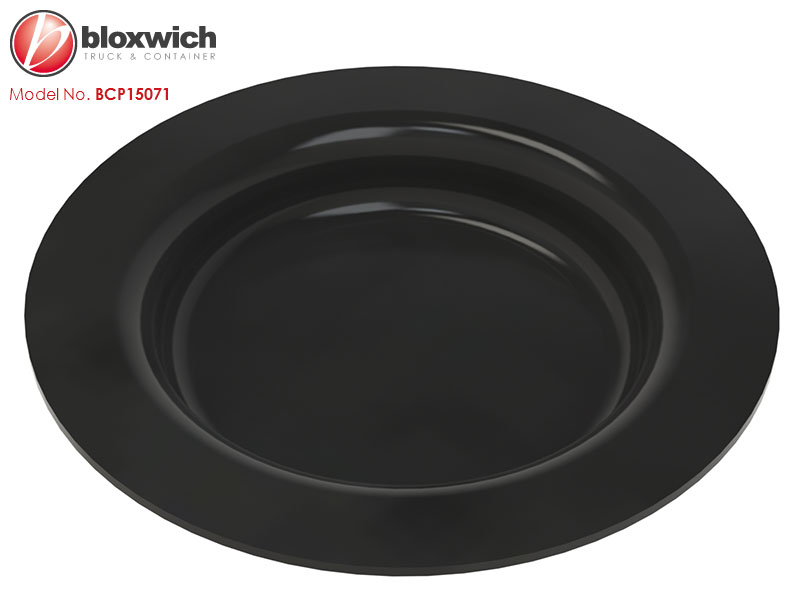

Bloxwich Standard Patent Design: Net Ring Recessed Housing
Supplied in: Mild steel self colour, zinc plated or galvanised
Use: Net ring recessed housing (lashing rings, cleats and fasteners supplied separately). Very versatile recessed housing commonly used to fit small lashing rings into the floors of light commercial vehicles and trailers etc. Weld on or bolt on, large flange enables it to be screwed to floors and walls, but it can also be drilled through the base for bolting it to cross bearers under vehicle and trailer floors. Fixing holes shown are examples and parts are supplied undrilled.
Weight: 240 g Commodity No830249 GTIN 5060345312560
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.

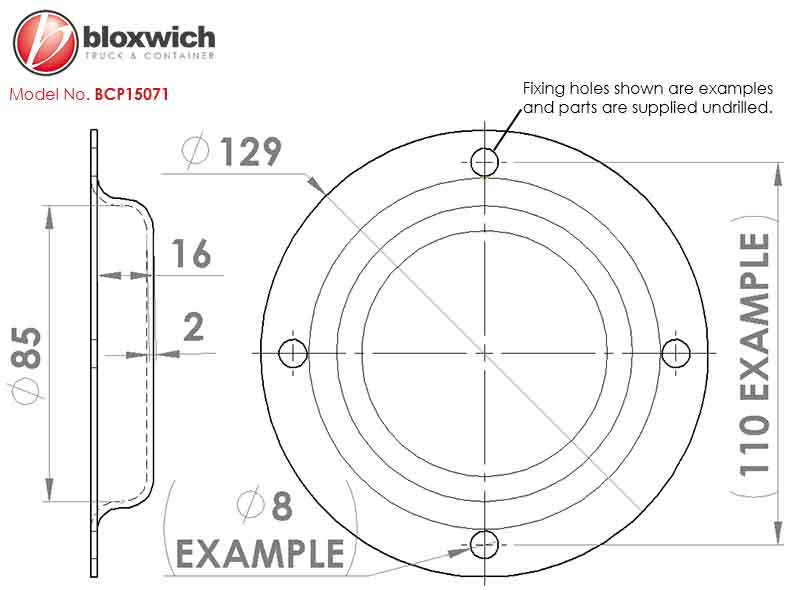

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
