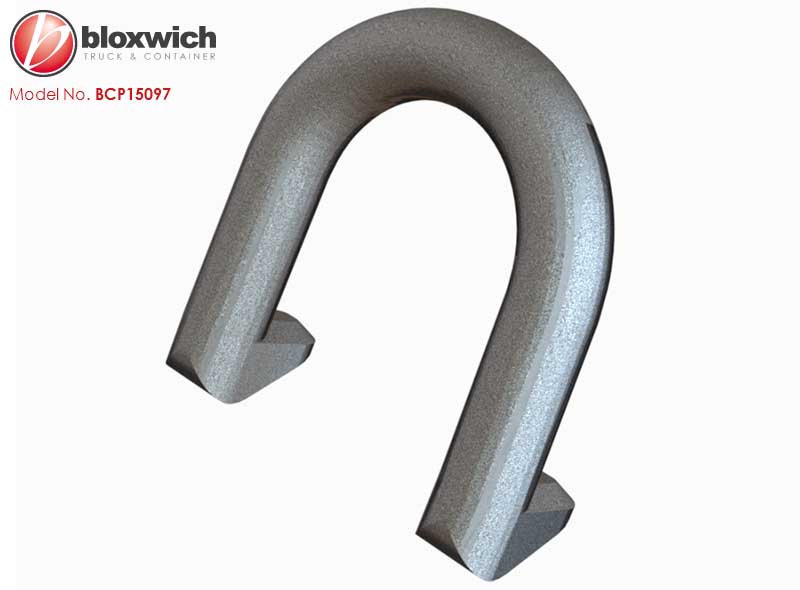

Bloxwich Standard Patent Design: Forged Rope Hook Long
Supplied in: Mild steel self colour or zinc plated
Use: Forged steel, weld on rope hook or d ring, designed to be recessed into the side panel corrugations of shipping containers to enable strapping of cargo during transport. However, the upper ones are regularly used to hang shelving etc. in storage containers.
Typically, 5 d rings are fitted at the top and bottom per container side on 20' containers but they can also be fitted on front end walls.
Weight: 120 g Commodity No 830249 GTIN 5060345312225
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.
Click

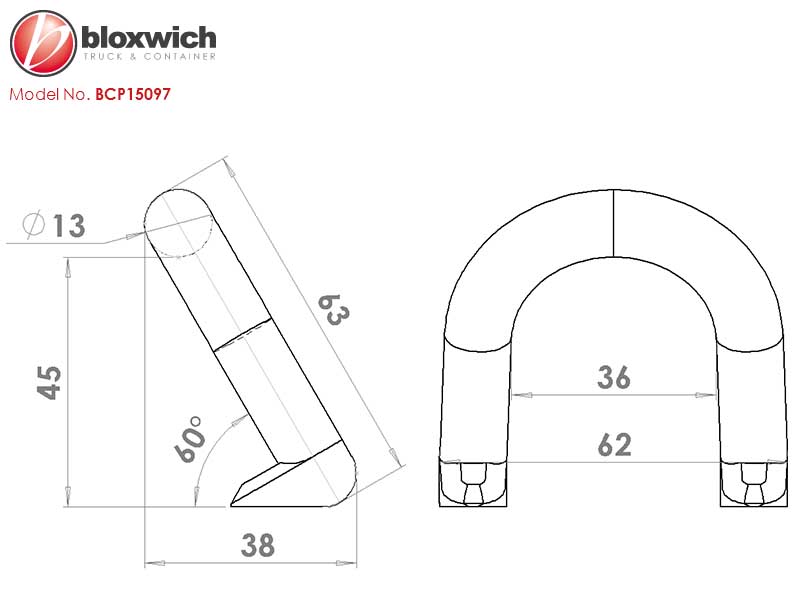

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
