Bloxwich Standard Patent Design: Mild Steel Hinge Assembly 285mm

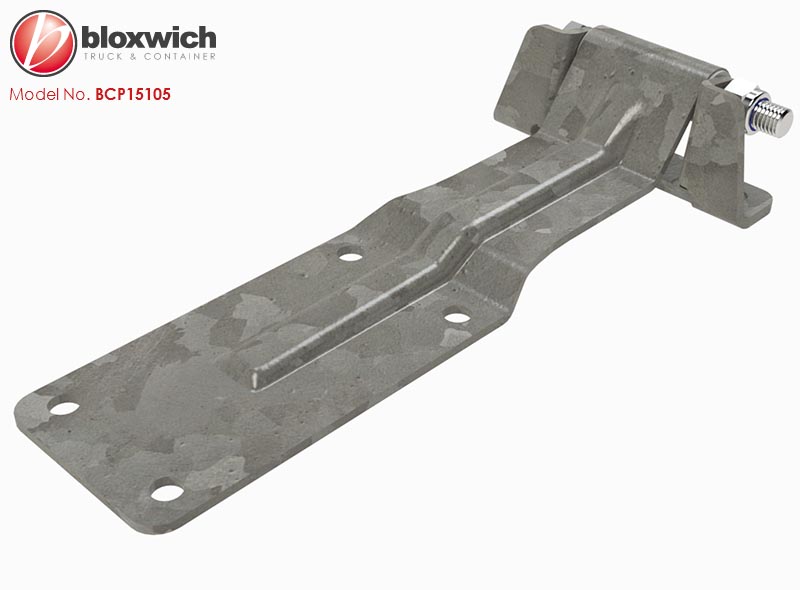

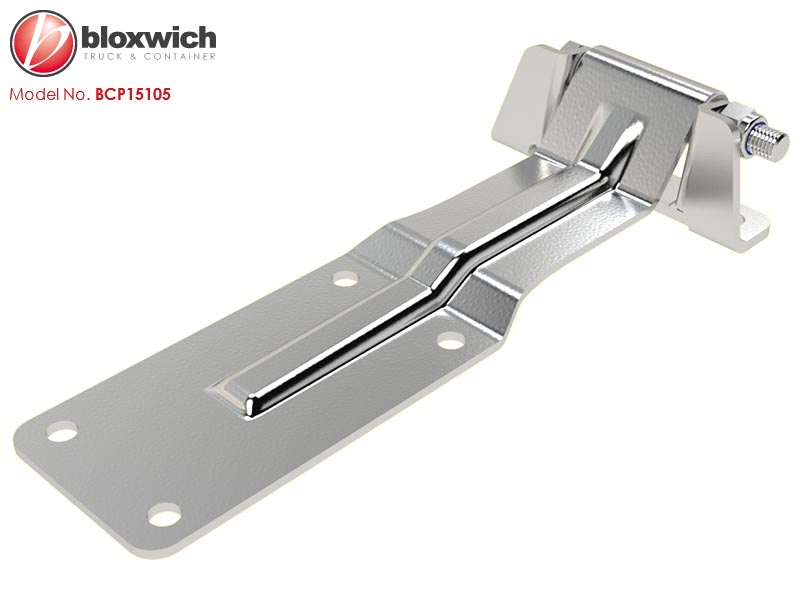

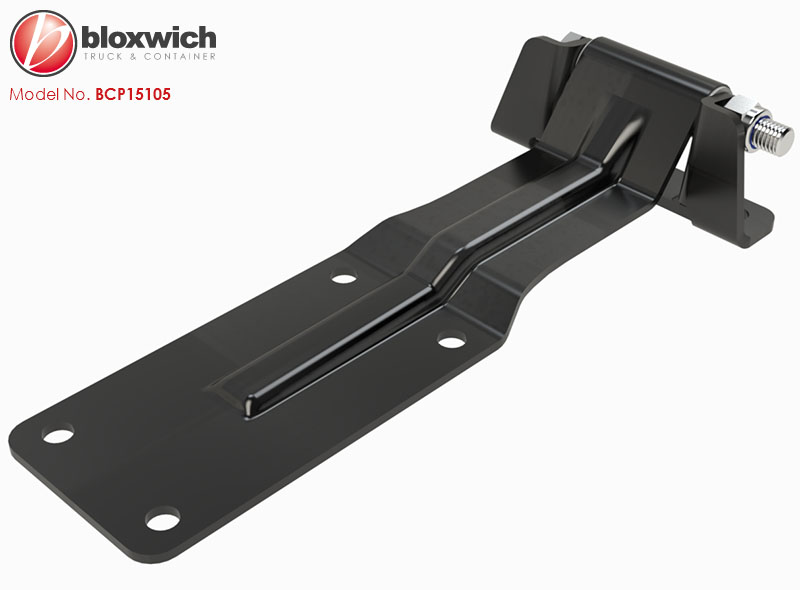

Supplied in: Self colour, zinc plated or galvanised
Use: Bolt on hinge assembly. Parts supplied in unassembled kits.
Weight: 1.1 kg Commodity No830210 GTIN 5060345312096
Hinge: BCP15073 Bracket: BCP14149/Z Bolt/Pin: BCP12463 M12 bolt Nut/E Clip: BCP12462 M12 nyloc nut

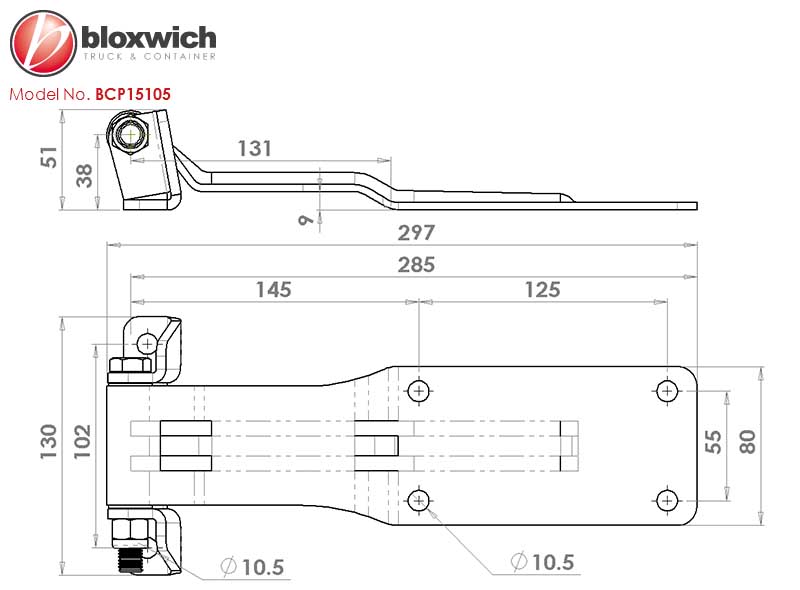

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
