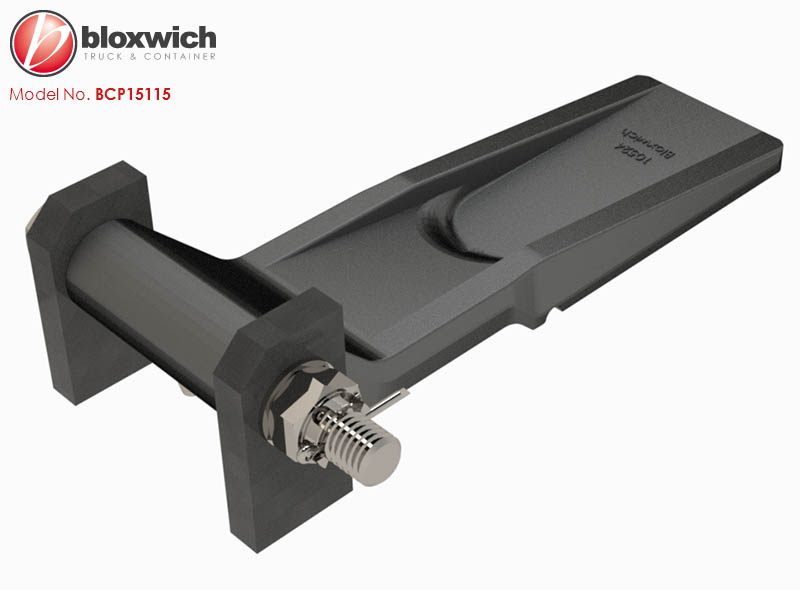

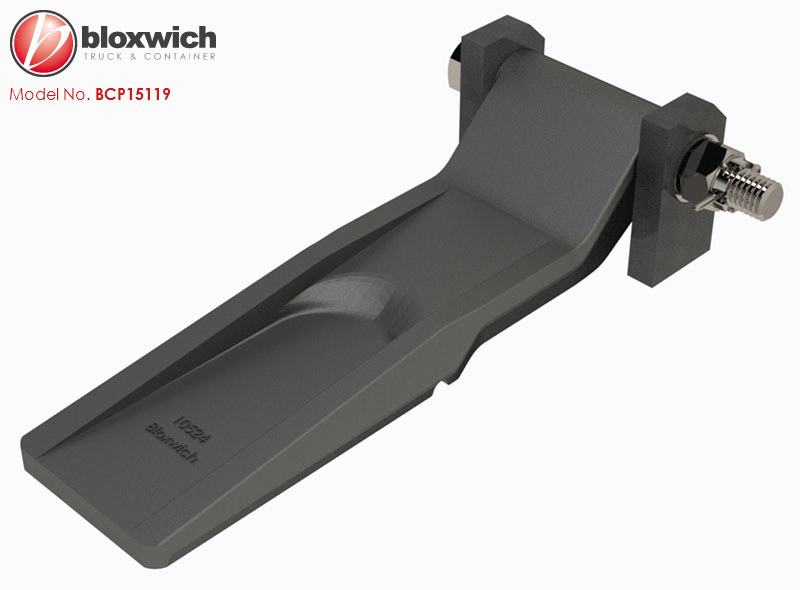

Bloxwich Standard Patent Design: Mild Steel Forged Hinge Bolted Assemblies 203mm
Supplied in: Self colour or zinc plated hinge with self colour hinge butts and stainless steel fasteners. Nyloc nut version available on request please contact us for further details.
Use: For use on containers etc, parts supplied assembled ready to weld in place. Castle nut and split pin provide security but also allow for easy removal of doors for refurb or repair when required. Customs seal cables can be fitted instead or in addition to the split pin (extra hole required).
Weight: 1.7 kg Commodity No 830210 GTIN 5060345313864

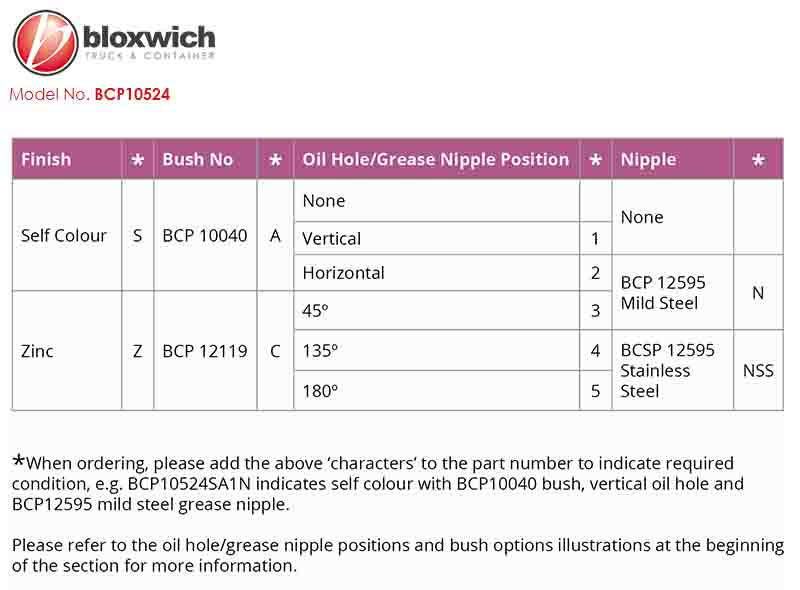

BCP10524 hinge, BCP15111 hinge butt, BCSP15121 bolt, BCSP15133 flat washers, BCSP15128 castle nut, BCSP15127 cotter pin and BCP12595 grease nipple

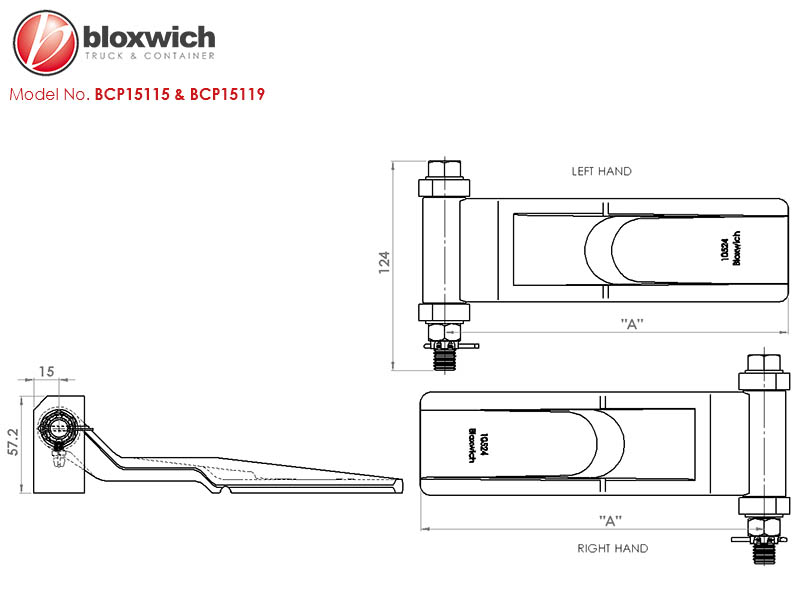

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
