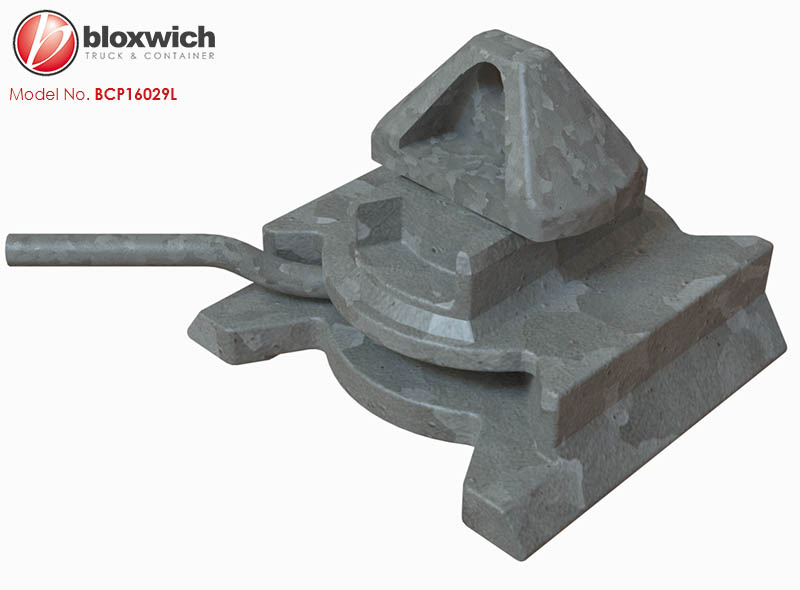

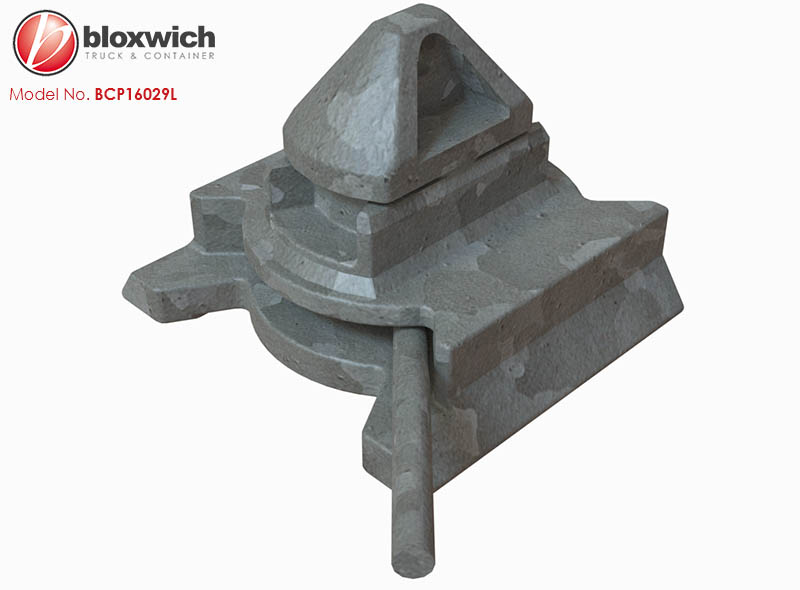

Bloxwich Standard Product: LH Locked Dovetail Twistlock 55°, MBL: 500 kN (tension) 420 kN (shear) 2000 kN (compression)
Supplied in: Galvanised
Use: Requires matching foundation BCP16037 and once fitted they provide a removable twistlock for fixing containers in position when required.
Weight: 6.4 kg Commodity Code 830249 GTIN 5060345313499
Bloxwich can supply a copy of the type approval certificate
Click
HERE to download the operating instructions
Click

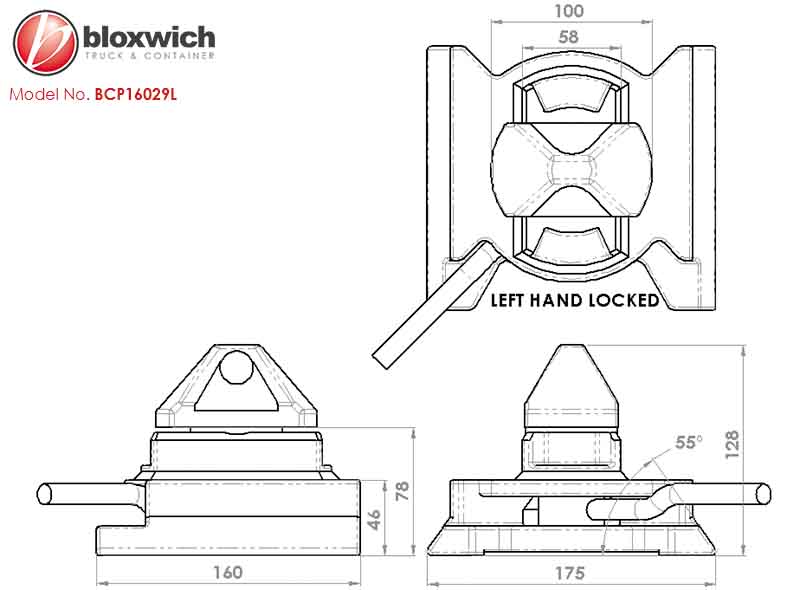

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
