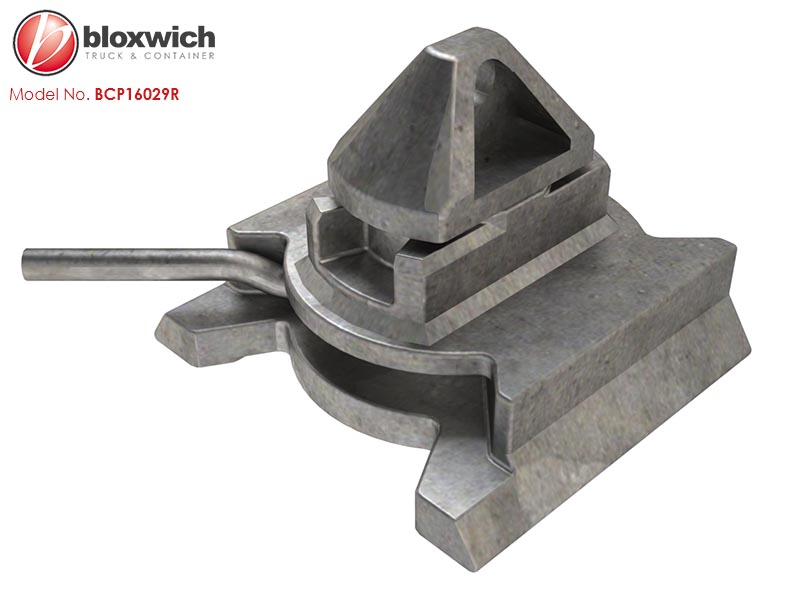

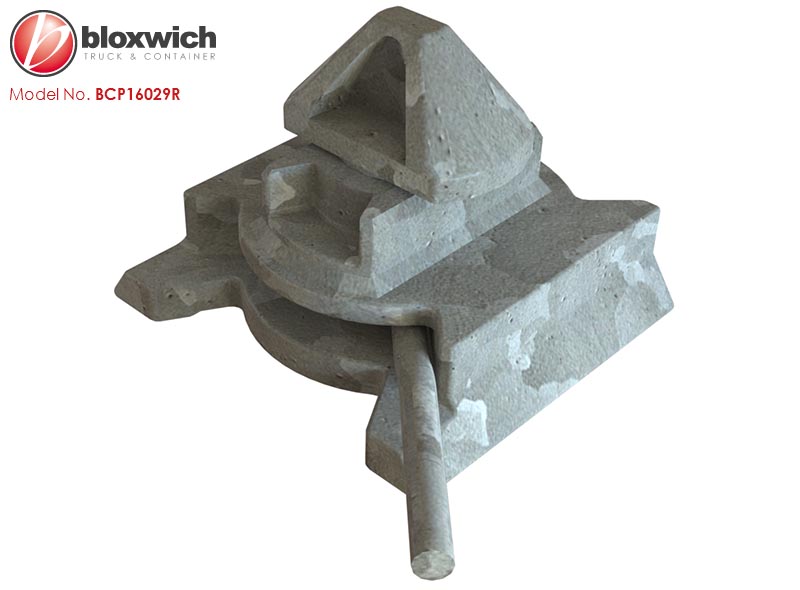

Bloxwich Standard Product: RH Locked Dovetail Twistlock 55°, MBL: 500 kN (tension) 420 kN (shear) 2000 kN (compression)
Supplied in: Galvanised
Use: Requires matching foundation BCP16037 and once fitted they provide a removable twistlock for fixing containers in position when required.
Weight: 6.4 kg Commodity Code 830249 GTIN 5060345313499
Bloxwich can supply a copy of the type approval certificate
Click
HERE to download the operating instructions
The operating instructions are for left locked models so please mirror any handle movements for right locked models
Click

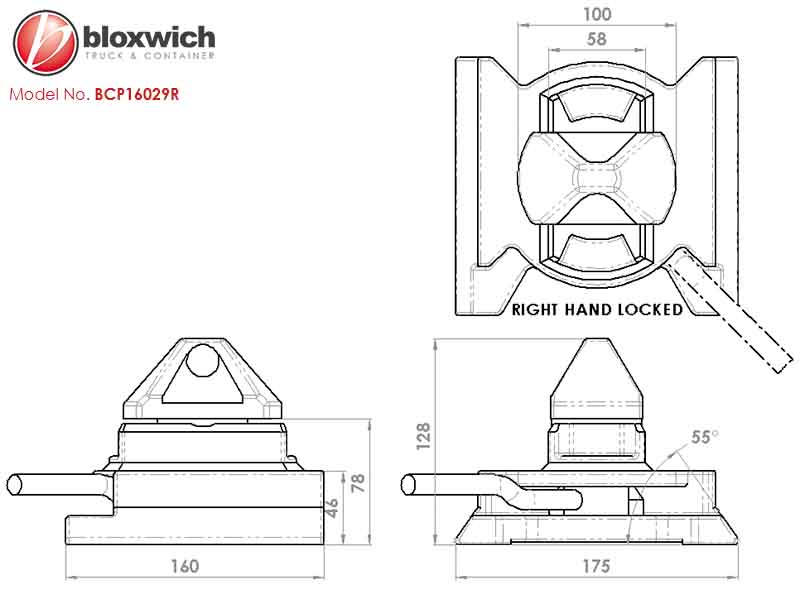

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
