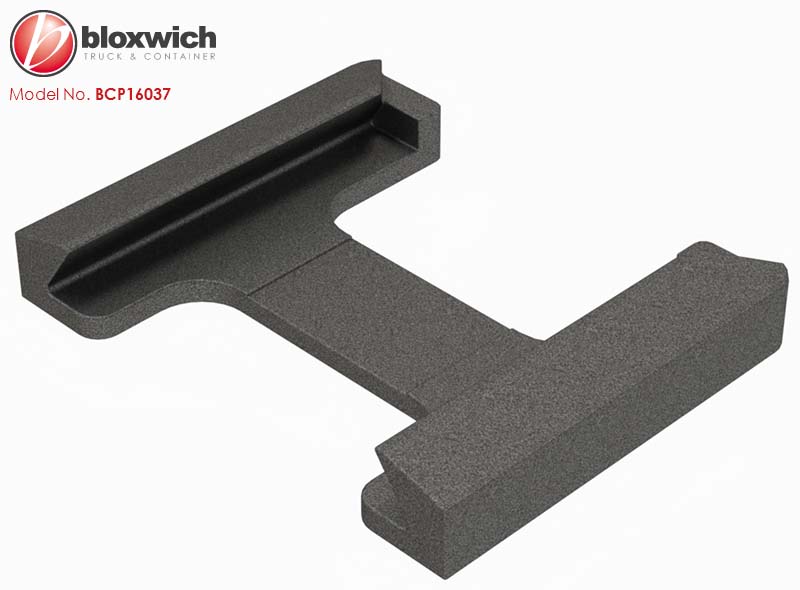

Bloxwich Standard Product: Dovetail Foundation Plate 55°, MBL: 500 kN (tension) 420 kN (shear) N/A (compression)
Supplied in: Self colour
Use: Dovetail foundation plate for use with matching dovetail twistlock BCP16029 and once fitted they provide a removable twistlock for fixing containers in position when required
Weight: 3.1 kg Commodity Code 830249 GTIN 5060345313505
Bloxwich can supply a copy of the type approval certificate
Click

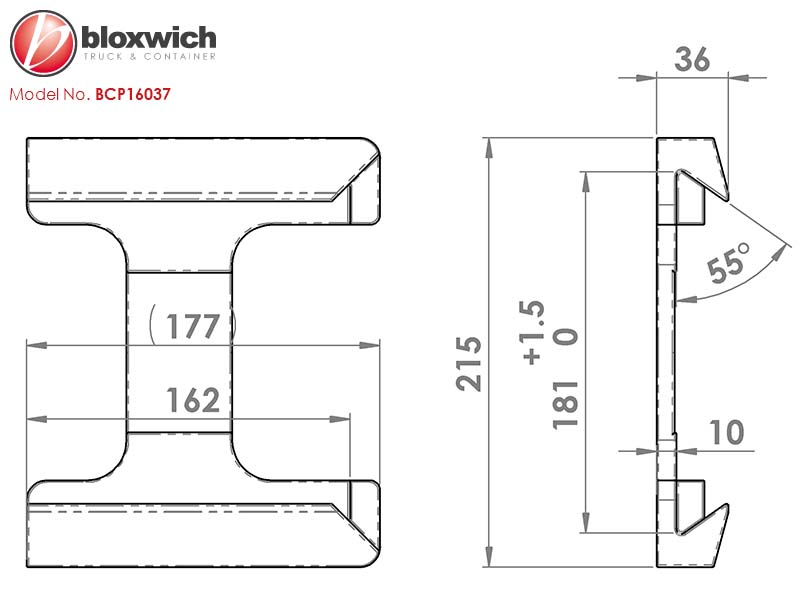

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
