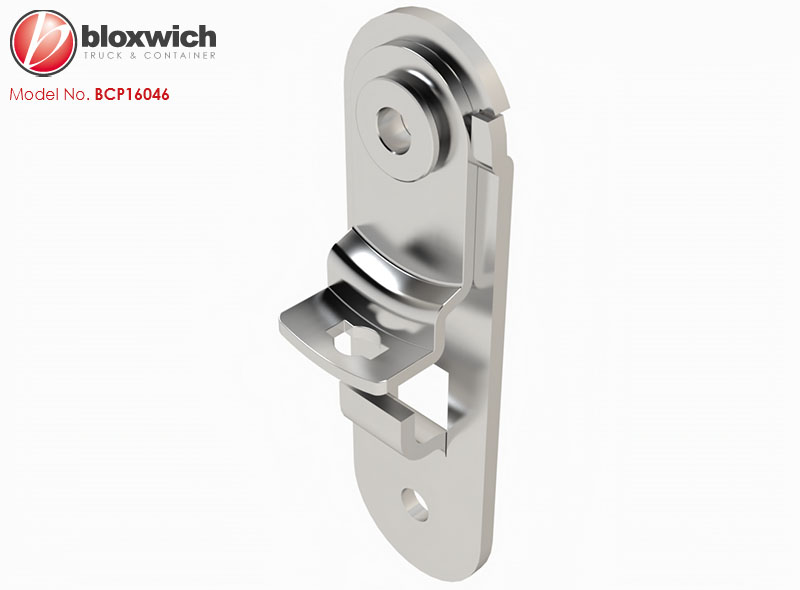

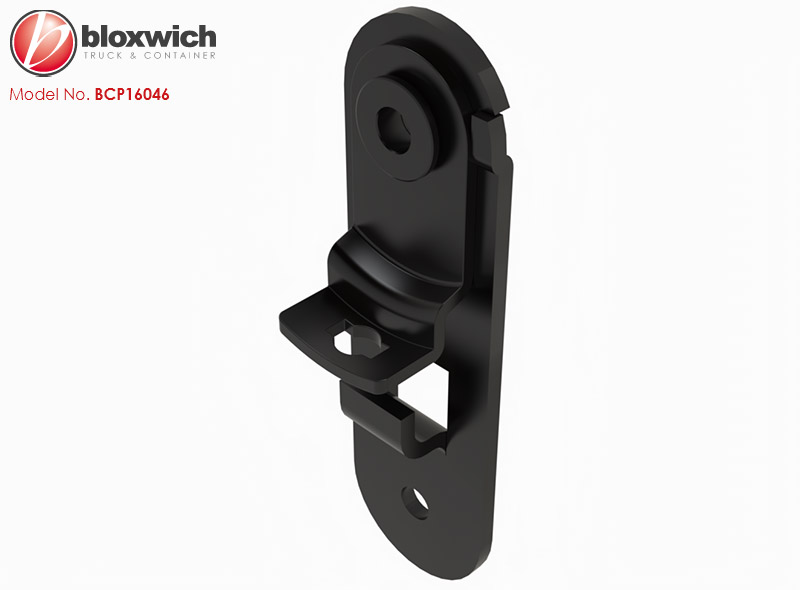

Bloxwich Standard Patent Design: Mild Steel Door Handle Retainer Kit

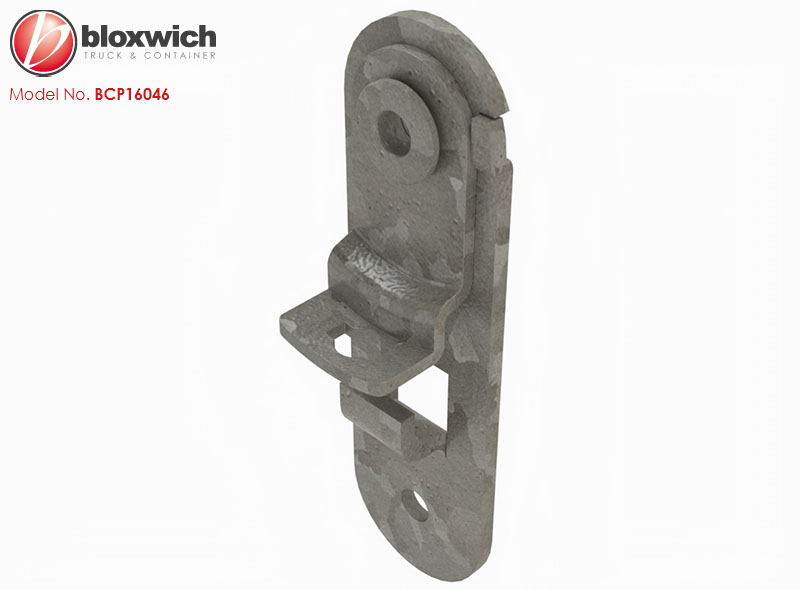

Supplied in: Self colour, zinc plated or galvanised. Parts supplied loose

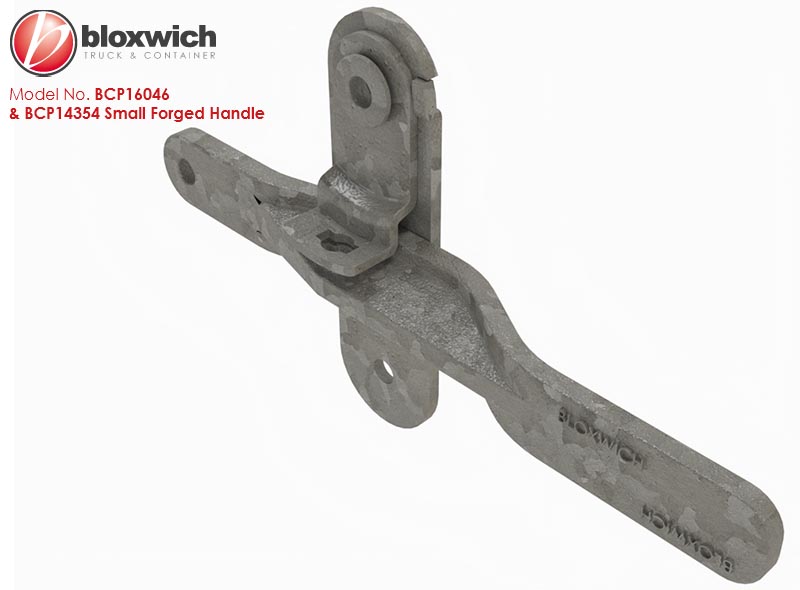

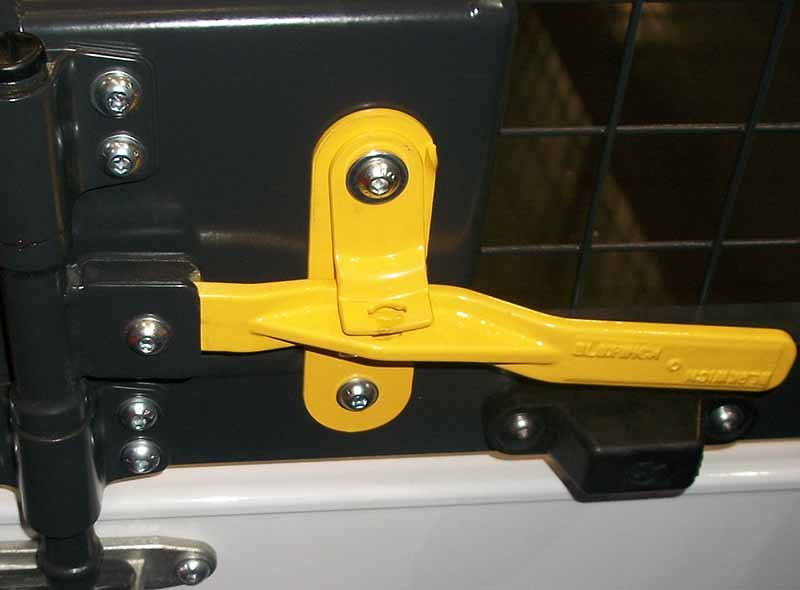

Use: Bolt-on door handle retainer assembly for securing the BCP14354 small forged handle in the closed position
Weight: 215 g Commodity Code 830249 GTIN 5060345312966
Bush: BCP11242 Catch: BCP14356 Retainer: BCP14355
Contains 1 M8 x 35 set screw (BCP13283), 1 M8 x 30 set screw (BCP13282), 2 flat washers (BCP13281) & 2 nyloc nuts (BCP13280) all are galvanised
Click

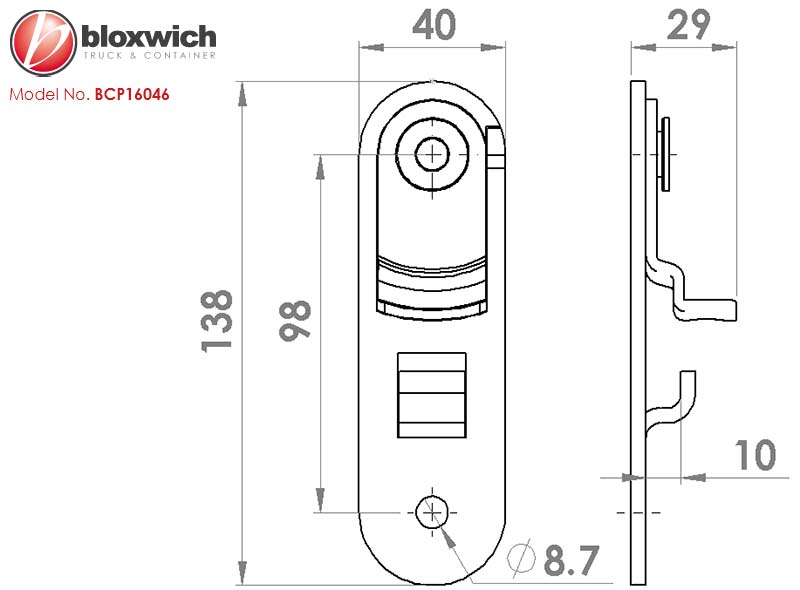

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
