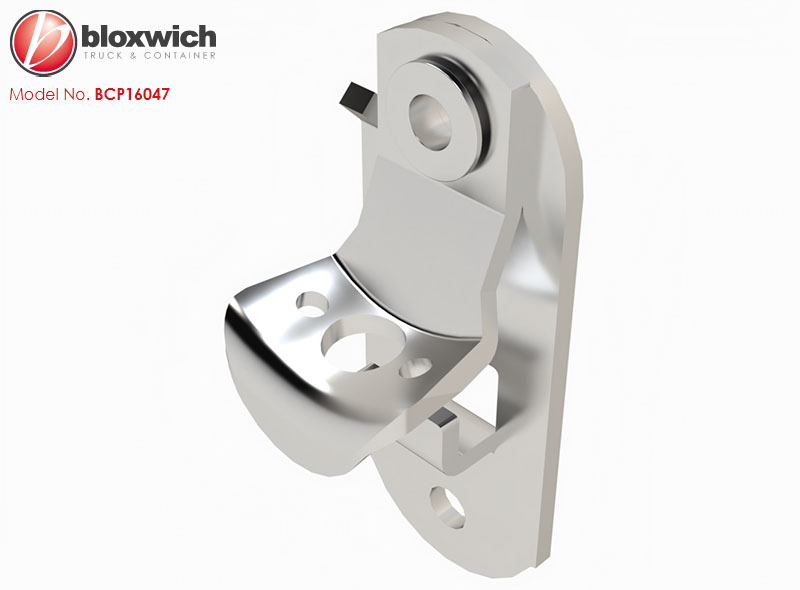

Bloxwich Standard Patent Design: Mild Steel Door Handle Retainer Kit

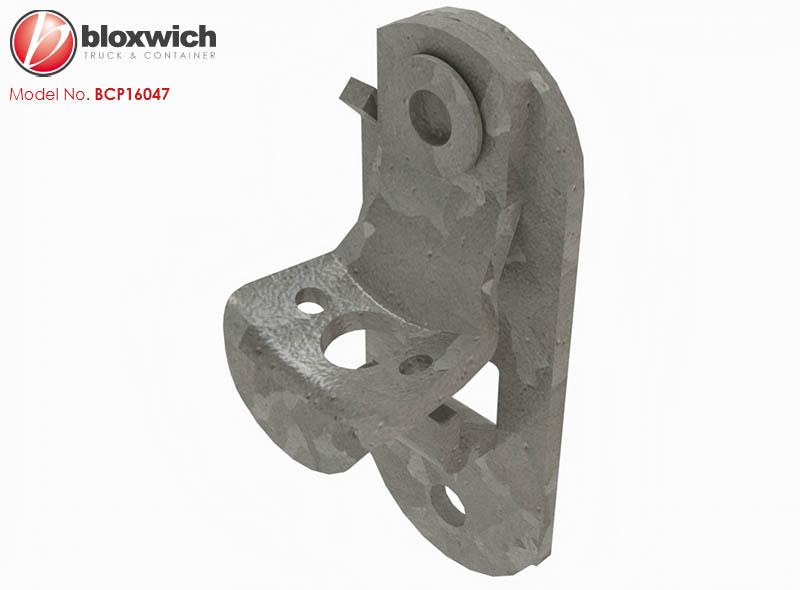

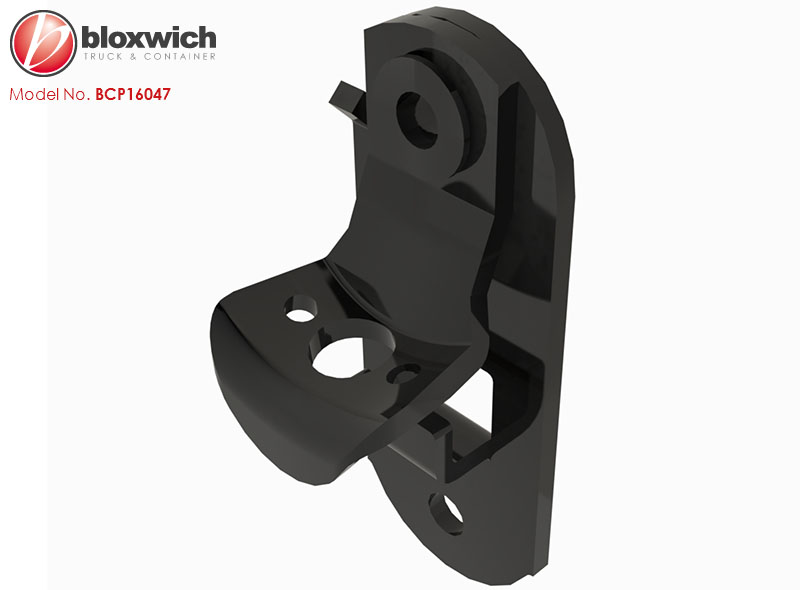

Supplied in: Self colour, zinc plated or galvanised. Parts supplied loose

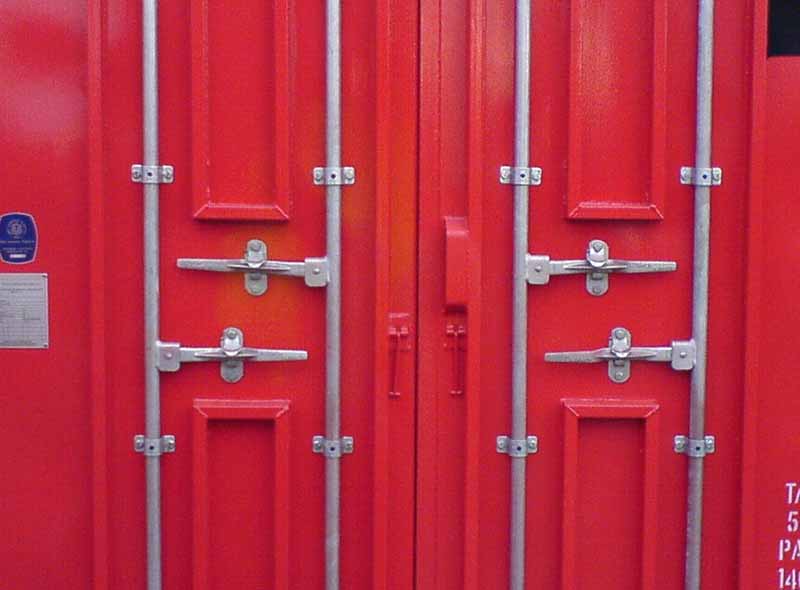

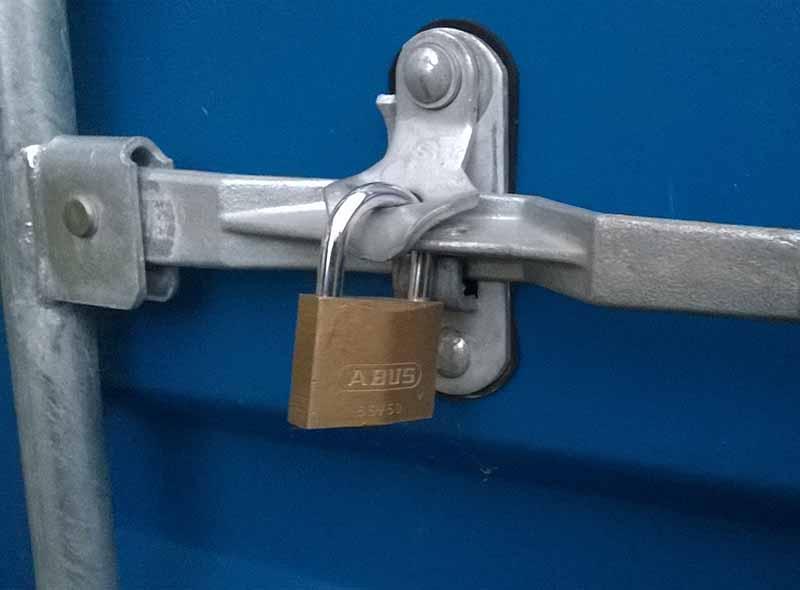

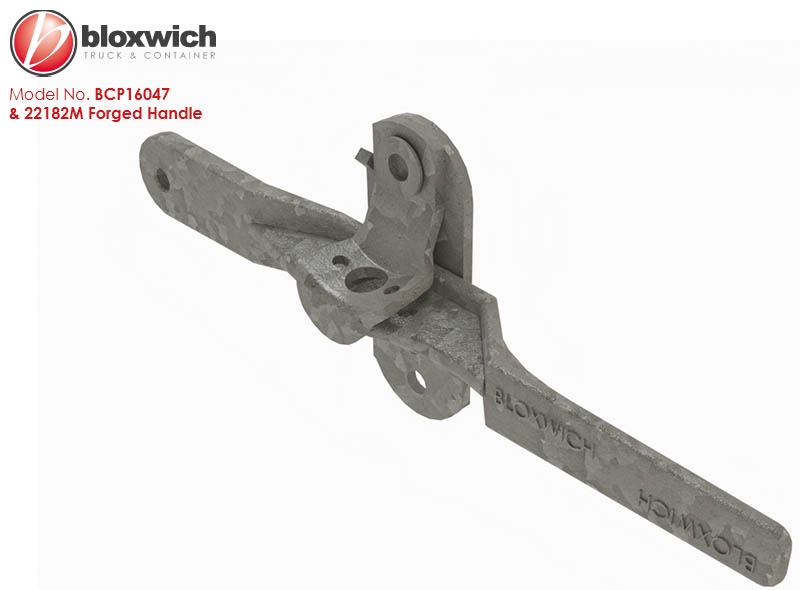

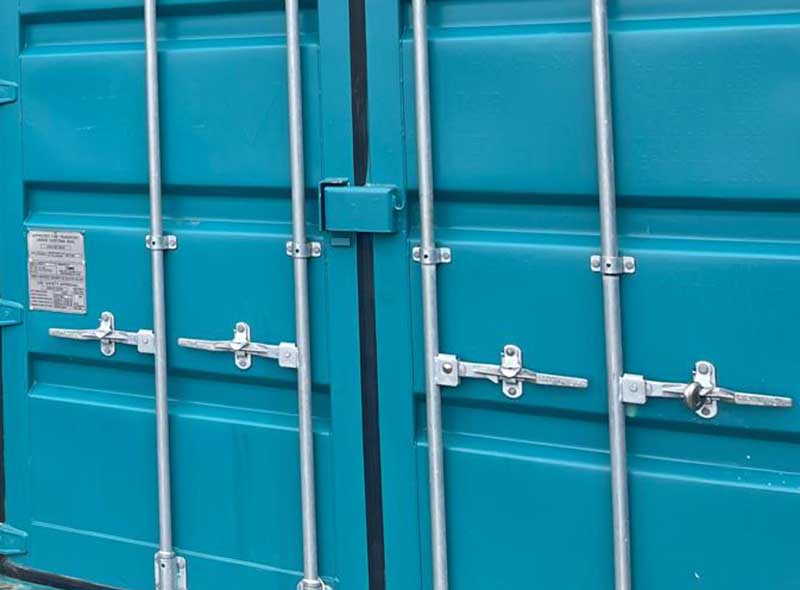

Use: Bolt-on door handle retainer assembly for securing the 22182M forged handle in the closed position
Weight: 342 g Commodity Code 830249 GTIN 5060345312935
Bush: 22185/Z Catch: BCP13856 Retainer: BCP13855
Contains 1 M10 x 35 set screw (BCP14887), 1 M10 x 30 set screw (BCP14886), 2 flat washers (BCP14885) & 2 nyloc nuts (BCP14884/G) all are galvanised.
Click

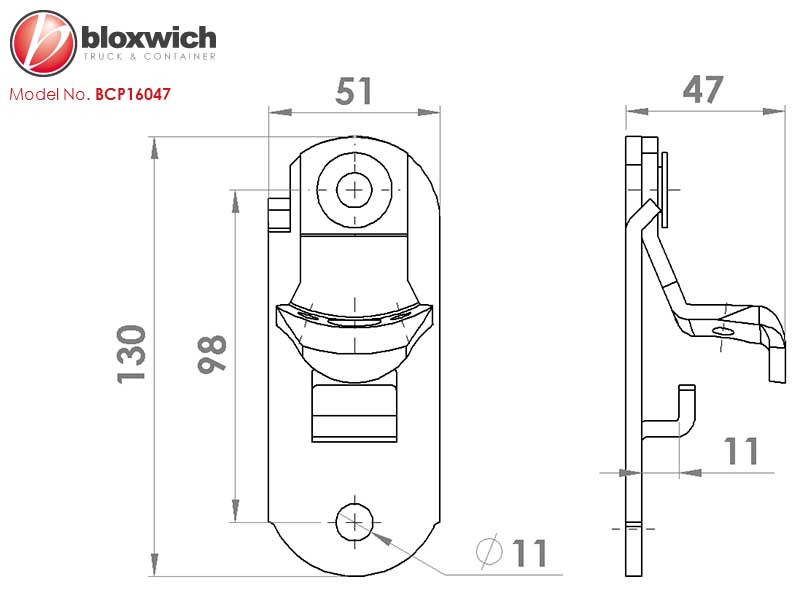

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
