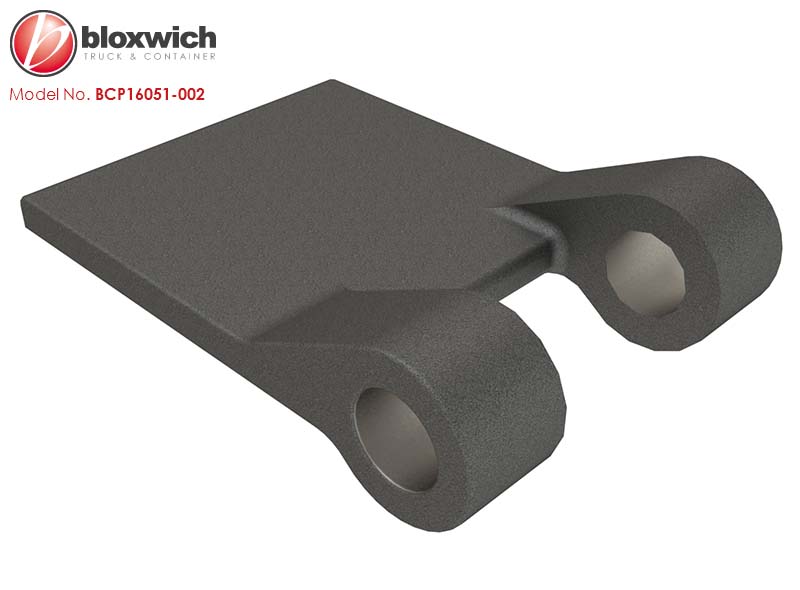

BCP16051-002 Mild Steel Heavy Duty Weld On Hinge Bracket

Bloxwich Standard Patent Design: Mild Steel Weld On Heavy Duty Hinge Bracket

Supplied in: Self colour or zinc plated

Use: Pivot hole size to suit M20 bolt or Ø20mm hinge pin

Weight: 1.1 kg  Commodity No 830249  GTIN 5060345314977

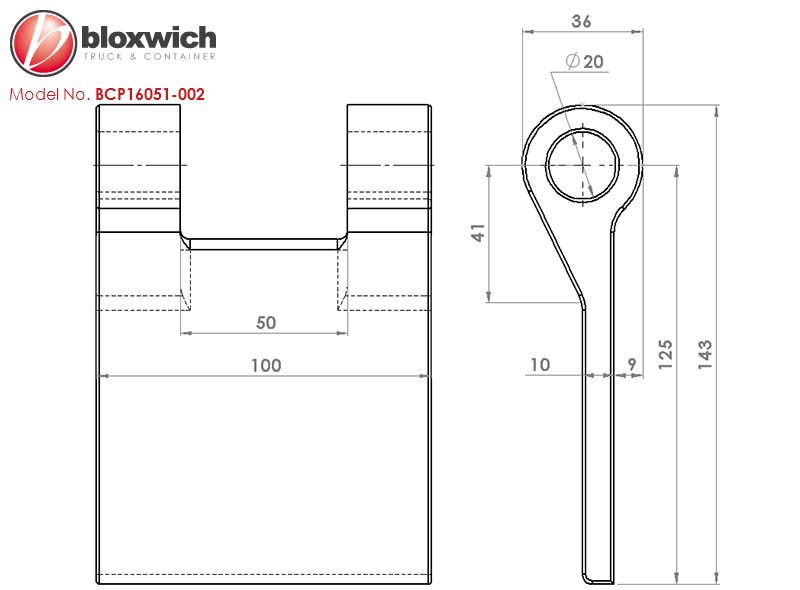

Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
