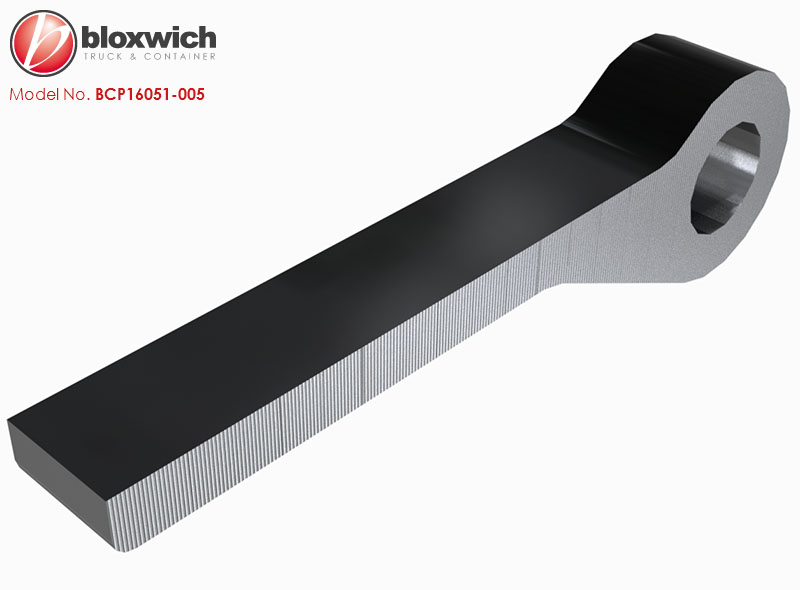

BCP16051-005 Mild Steel Hinge Bracket Heavy Duty

Bloxwich Standard Patent Design: Mild Steel Hinge Bracket Heavy Duty

Supplied in: Self colour

Use: Pivot hole size to suit M20 bolt or Ø20 hinge pin.

Weight: 315 g  Commodity No 830249  GTIN 5060345315462

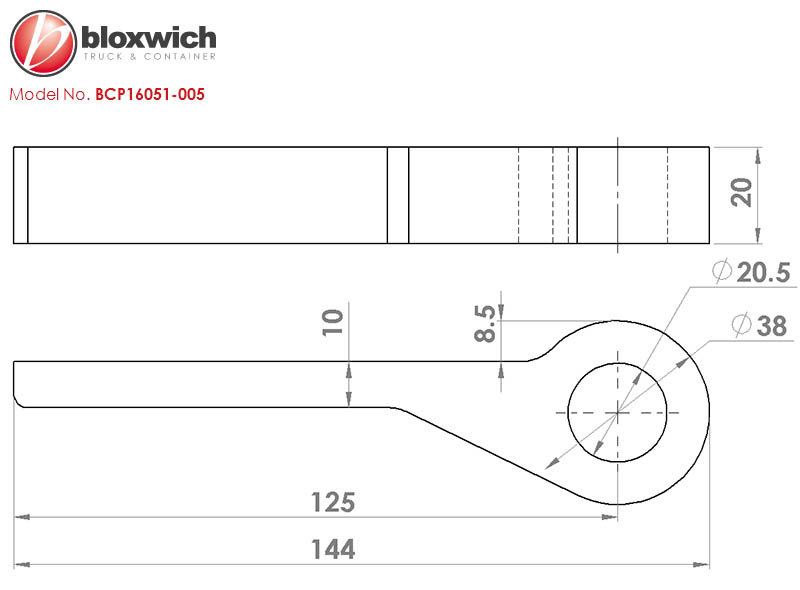

Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
