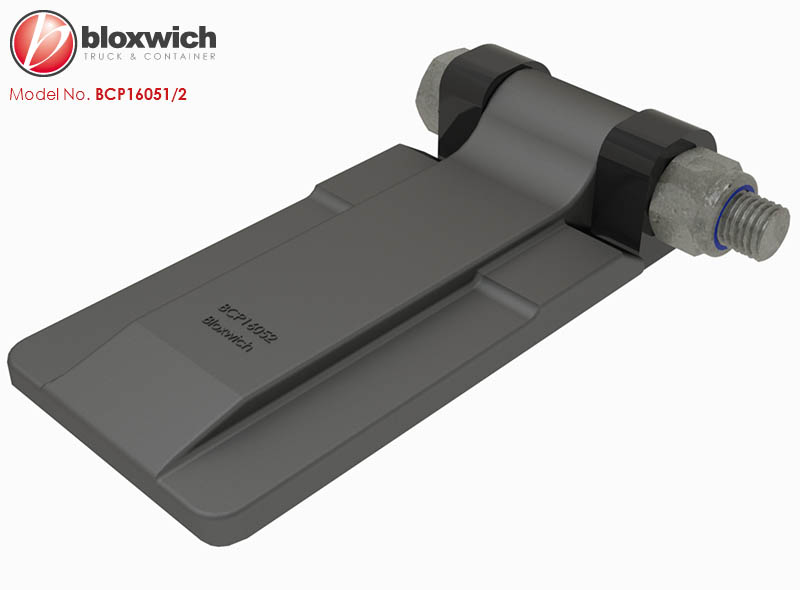

Bloxwich Standard Product: Forged Steel Door Hinge Assembly 197mm
Supplied in: Self colour or zinc plated hinge with self colour butts and 3/4" UNC bolt and nyloc nut
Use: Weld-on design, bushed to suit 3/4" UNC bolt. Commonly used on ISO skip unit doors and open top container swinging or removable headers. Depending on mounting arrangement and opening angle some positions may not be suitable for a grease nipple.
Weight: 3.5 kg Commodity No 830210 GTIN 5060345314991
Hinge: BCP16052 Butts BCP16053 Bolt: BCP16054 Nyloc Nut: BCP16055. Usual hinge options apply see BCP16052 for details.

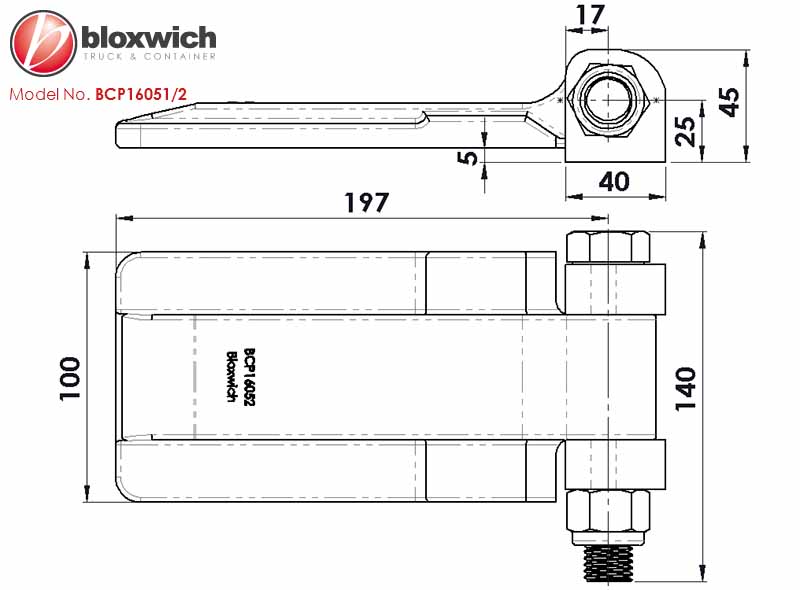

Click
