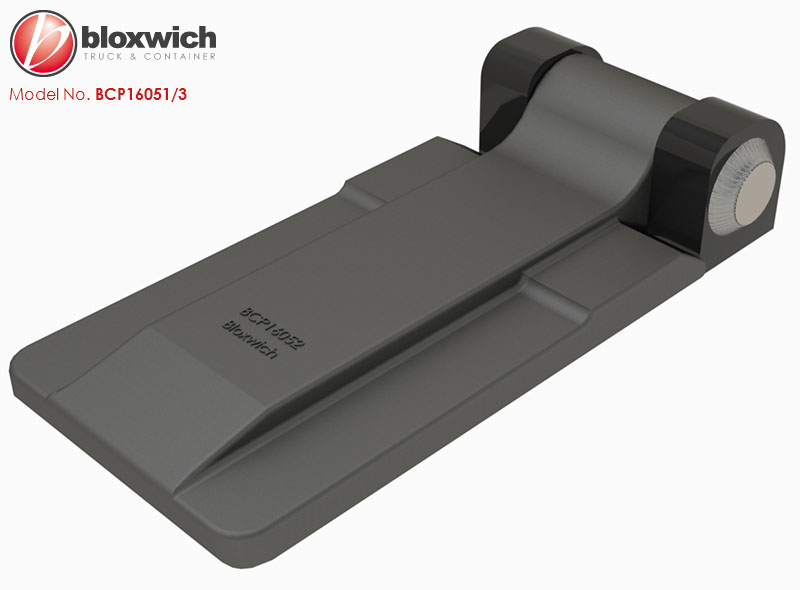

Bloxwich Standard Product: Forged Steel Door Hinge Assembly 197mm
Supplied in: Self colour or zinc plated hinge with self colour butts and stainless steel pin
Use: Weld-on design, bushed to suit Ø20 pin. Commonly used on ISO skip unit doors and open top container swinging or removable headers. Depending on mounting arrangement and opening angle some positions may not be suitable for a grease nipple.
Weight: 3.5 kg Commodity No 830210 GTIN 5060345315004
Hinge: BCP16052 Butts: BCP16053 Pin: BCP16051-003. Usual hinge options apply see BCP16052 for details.

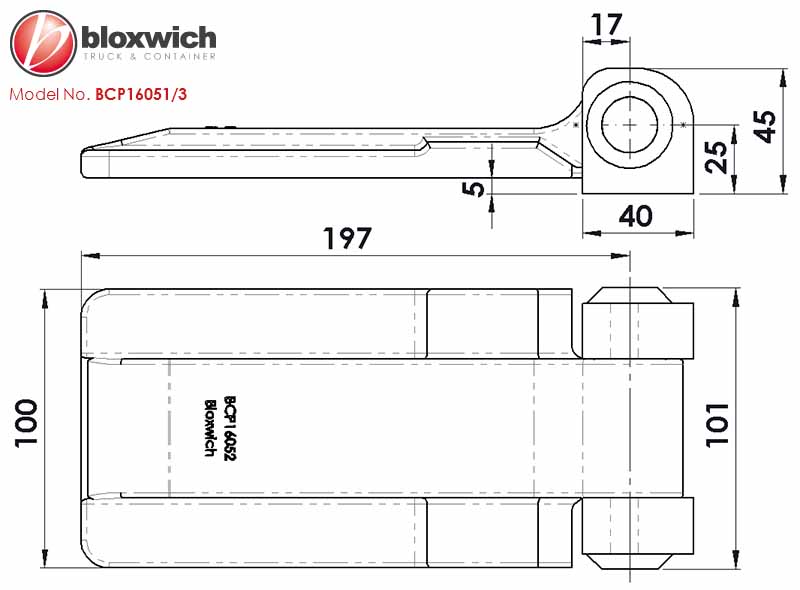

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
