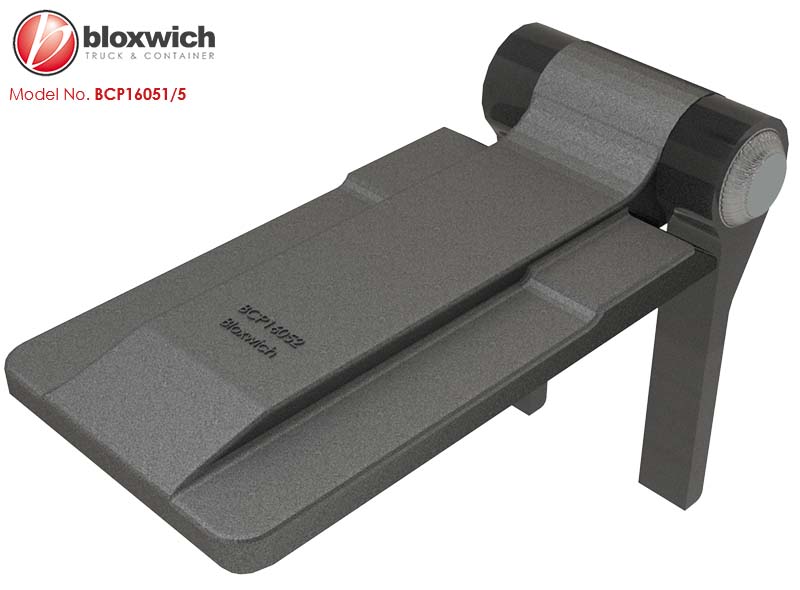

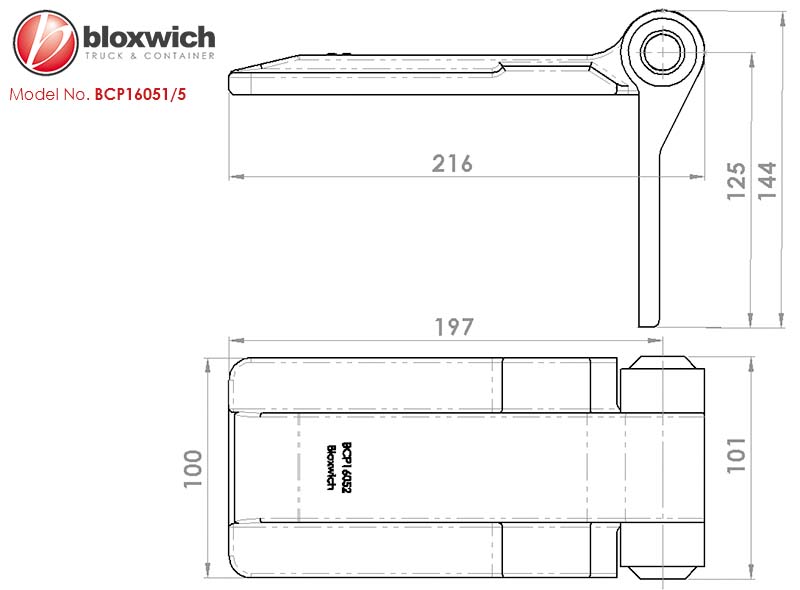

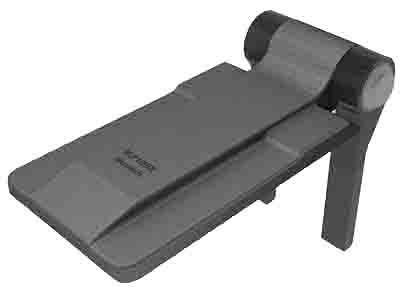

BCP16051/5 Forged Steel Door Hinge Assembly 197mm

Bloxwich Standard Product: Forged Steel Door Hinge Assembly 197mm

Supplied in: Self colour or zinc plated hinge with self colour butts and stainless steel pin

Use: Weld-on design, bushed to suit Ø20 pin. Commonly used on ISO skip unit doors and open top container swinging or removable headers. Depending on mounting arrangement and opening angle some positions may not be suitable for a grease nipple.

Weight: 3.5 kg  Commodity No 830210   GTIN 5060345315264
