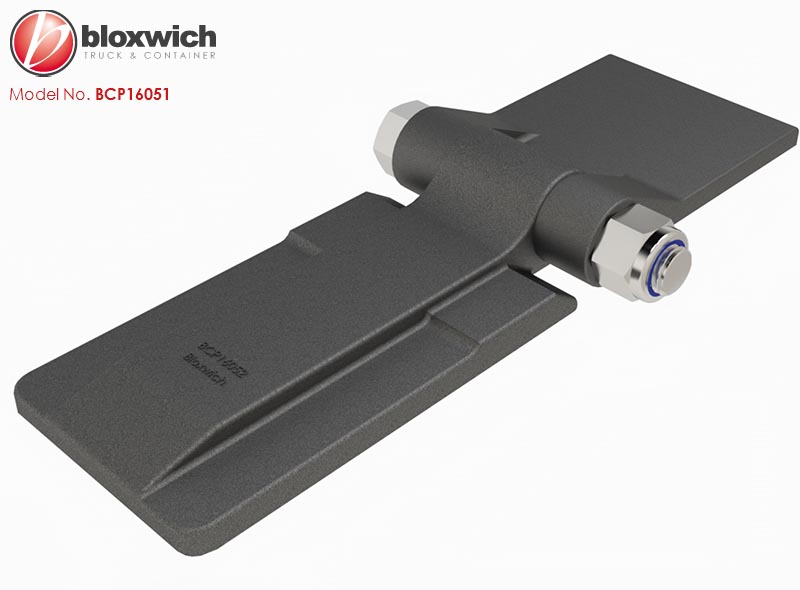

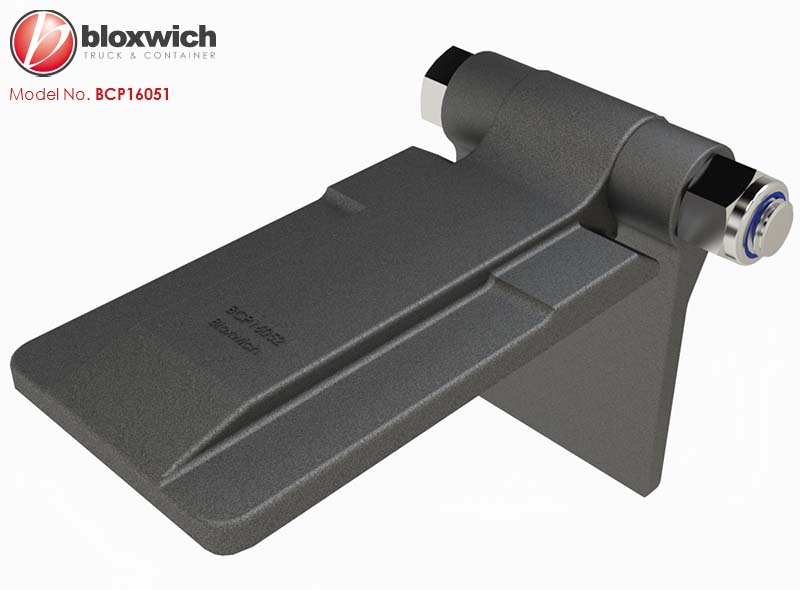

Bloxwich Standard Product: Forged Steel Door Hinge Assembly 197mm
Supplied in: Self colour or zinc plated hinge with 3/4" UNC bolt and nyloc nut

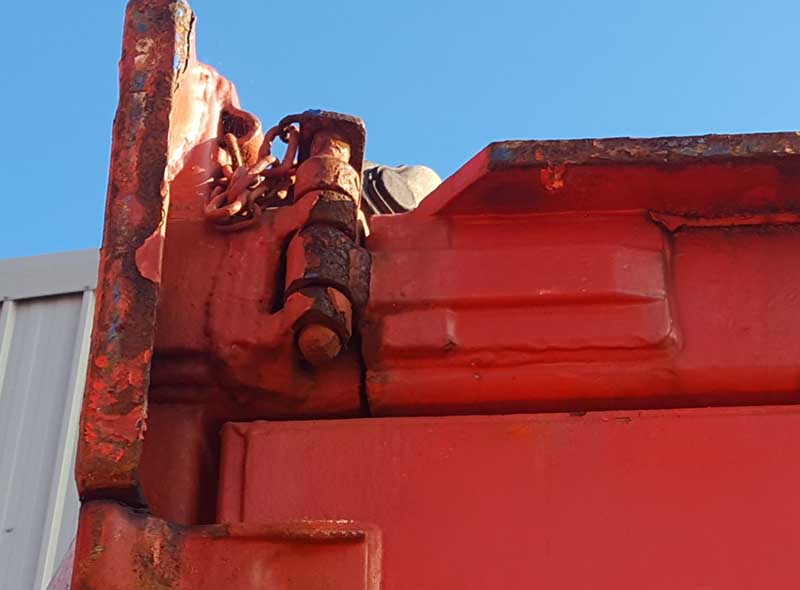

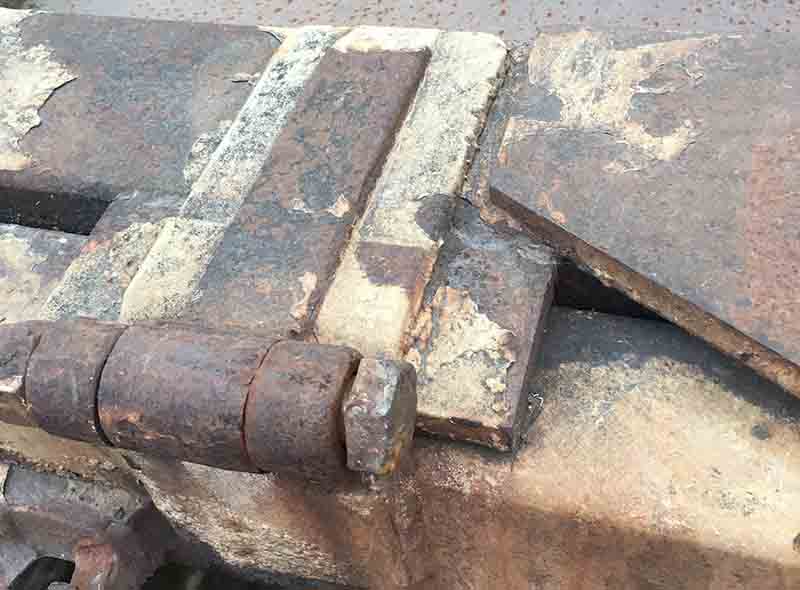

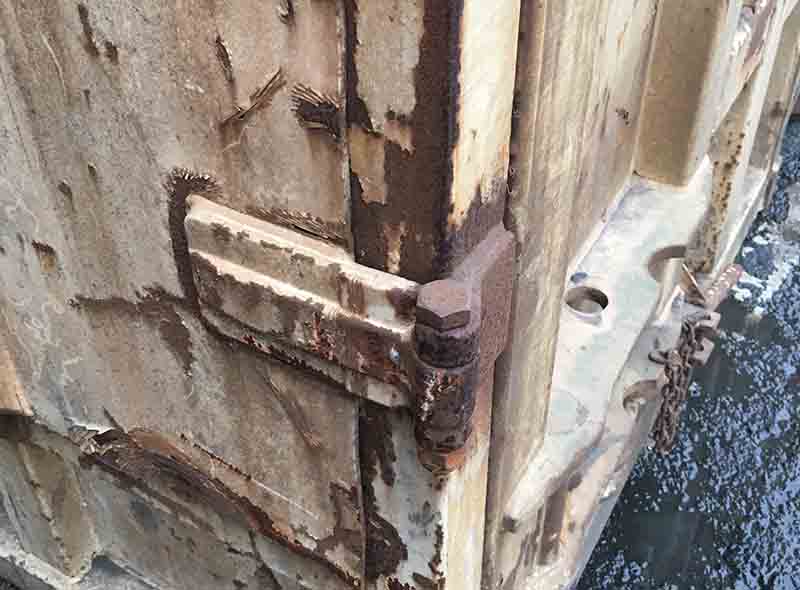

Use: Weld-on design, bushed to suit 3/4" UNC bolt. Commonly used on ISO skip unit doors and open top container swinging or removable headers. Depending on mounting arrangement and opening angle some positions may not be suitable for a grease nipple.
Weight: 3.5 kg Commodity No 830210 GTIN 5060345314359
Hinge: BCP16052 Bracket: BCP16051-002 Bolt: BCP16054 Nyloc Nut: BCP16055. Usual hinge options apply see BCP16052 for details.

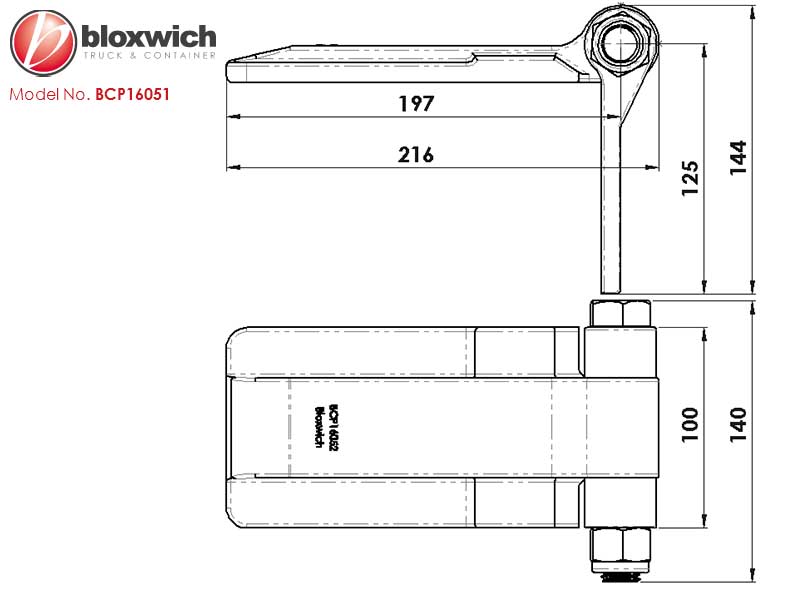

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
