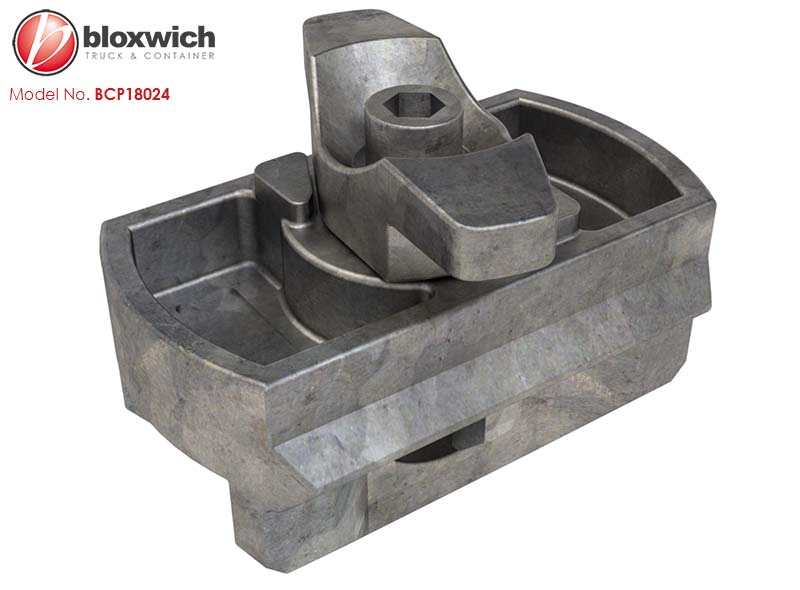

Bloxwich Standard Product: Flangeless Terminal Stacker MBL: 420 kN (shear)
Supplied in: Mild steel galvanised

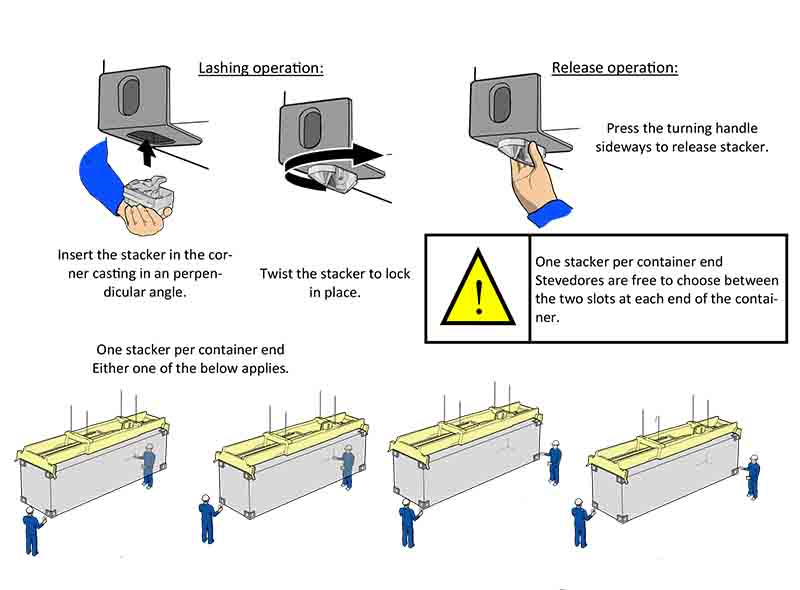

Use: Terminal or hanging stacker for safely aligning containers during stacking. Easily fitted to the underside of corner castings, one stacker minimum required per container end. The flangeless stacker slightly decreases the height of the centre of gravity of a container stack, which is an advantage for stability.
Weight: 2.1 kg Commodity Code 830249 GTIN 5060345314502
Bloxwich can supply a copy of the type approval certificate
Click

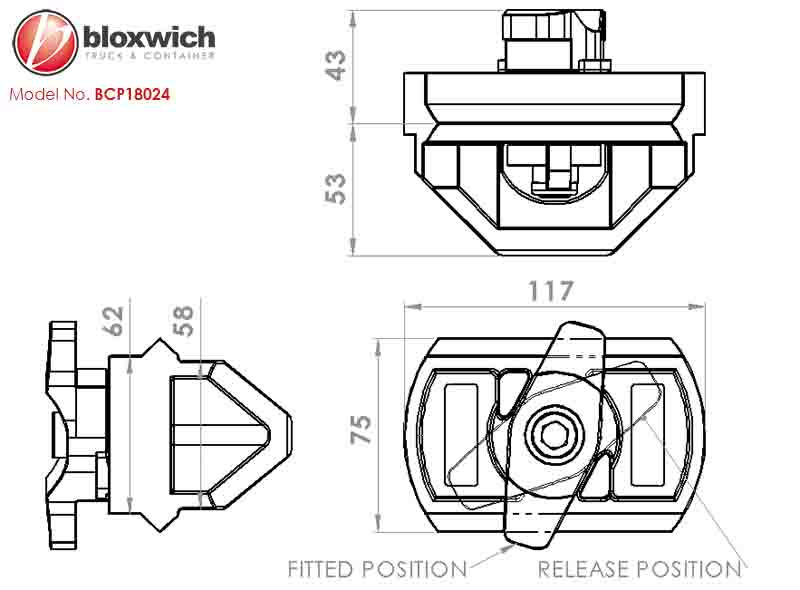

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
