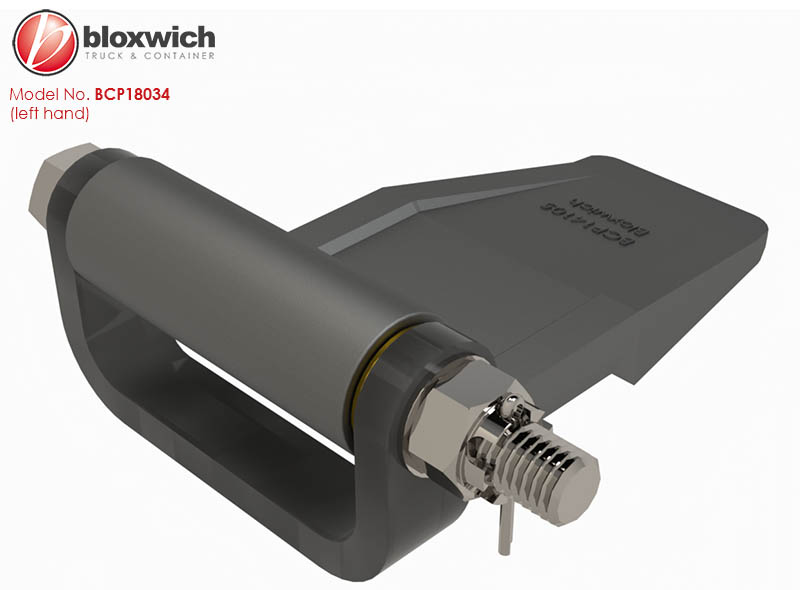

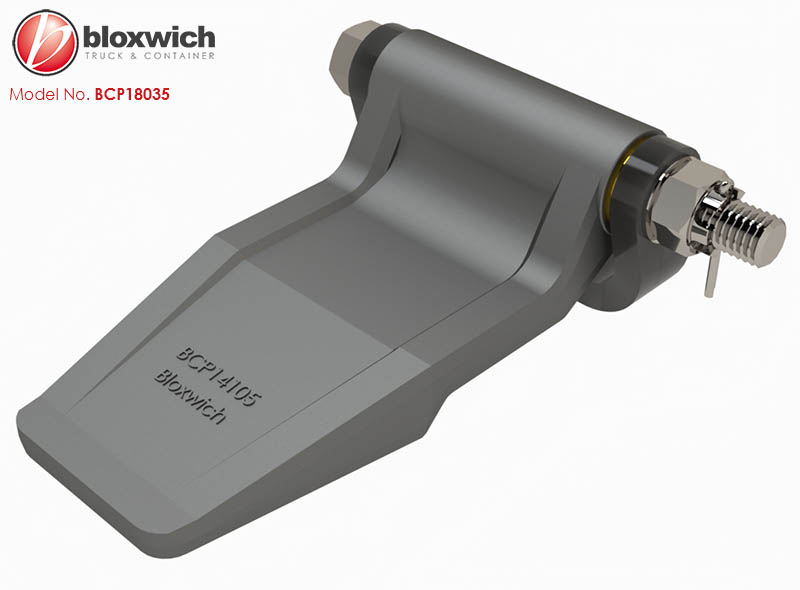

Bloxwich Standard Patent Design: Forged Steel Door Hinge Assembly 140mm
Supplied in: Self colour or zinc plated hinge with self colour hinge bracket and stainless steel fasteners. Nyloc nut version available on request please contact us for further details.
Use: For containers etc, parts supplied assembled ready to weld in place. Castle nut and split pin provide security but also allow for easy removal of doors for refurb or repair when required. Customs seal cables can be fitted instead or in addition to the split pin (extra hole required).
BCP19067 brass washers are fitted on the underside of hinges as a spacer to prevent wear, paint damage and corrosion in use. They also increase security by reducing/eliminating gaps between hinges and hinge brackets/butts which makes cutting of the hinge pins/bolts more difficult (if thieves attempt to cut through the washers instead, they can spin on the pin/bolt which again makes cutting more difficult).
Weight: 1.6 kg Commodity No 830210 GTIN 5060345317084
Hinge: BCP14105 Hinge Bracket: BCP18007 Bolt: BCSP15155. Washers: BCSP15133 Usual hinge options apply see BCP14105 for details Castle Nut: BCSP15128 Cotter Pin: BCSP15127

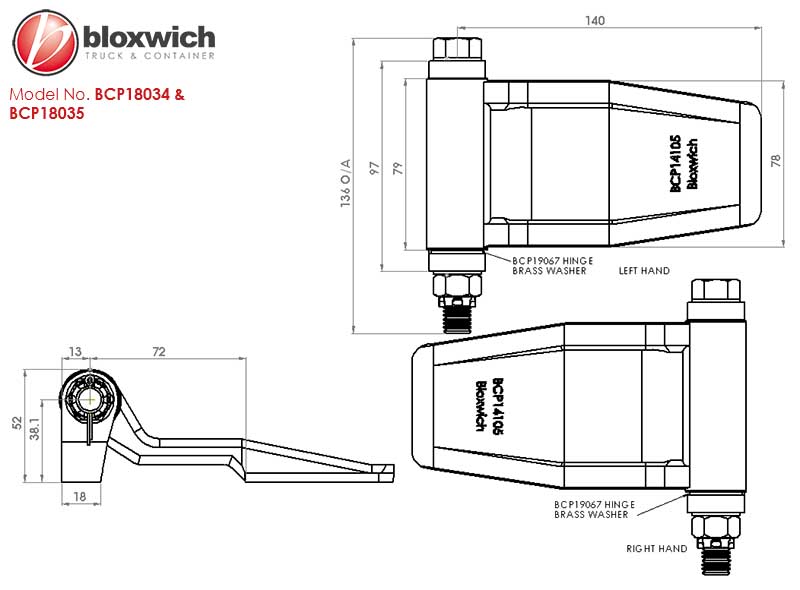

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
