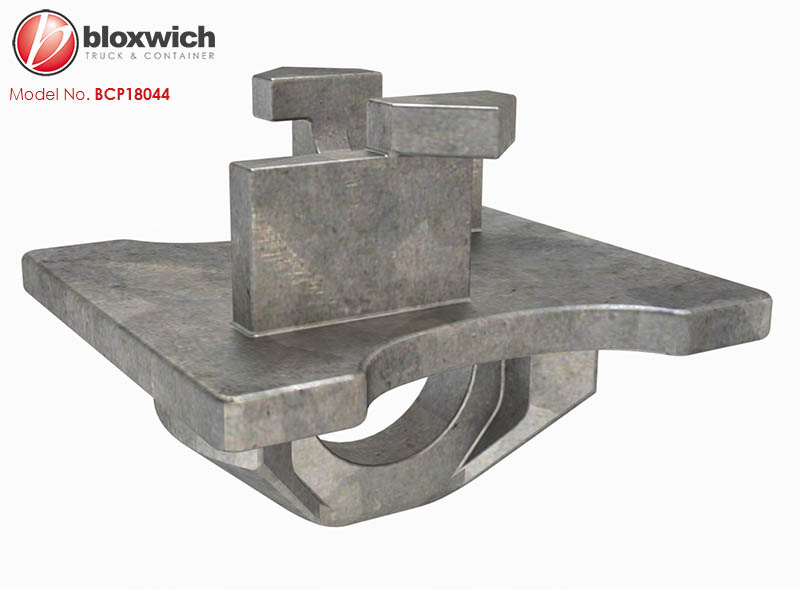

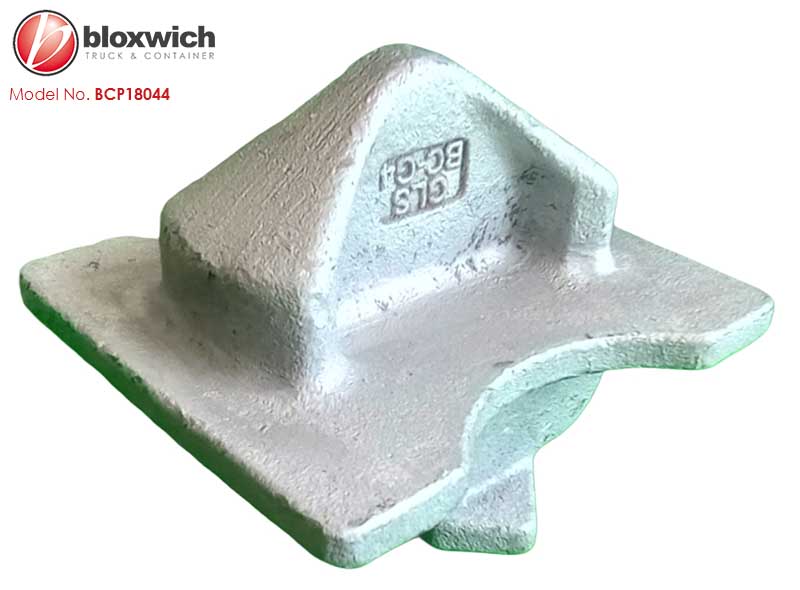

Bloxwich Standard Product: BCP18044 Hanging Stacking Cone MBL: 420 kN (shear) 2000 kN (compression)
Supplied in: Mild steel galvanised
Use: Hanging stacking cone for safely aligning containers during stacking. Easily fitted to the underside of corner castings. Flange adds 10mm per row and 4 are required per container.
Weight: 2.1 kg Commodity Code 830249 GTIN 5060345317077
Bloxwich can supply a copy of the type approval certificate
Click
HERE to download the operating instructions
Click

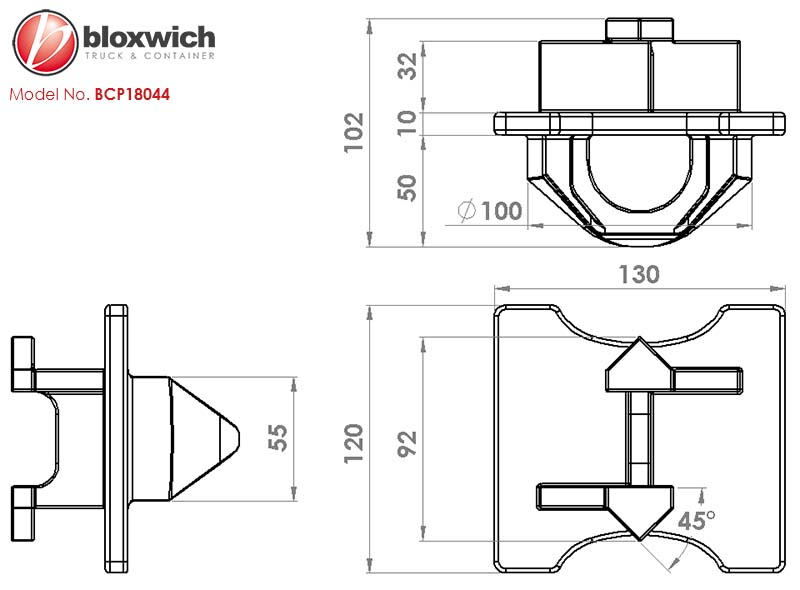

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
